Toshiba 7.1kW Digital Inverter Mid-Static Ducted System RAV-GM801BTP-A / RAV-GM801ATP-A

Toshiba

Toshiba 7.1kW Digital Inverter Mid-Static Ducted System RAV-GM801BTP-A / RAV-GM801ATP-A

$3,224.00
No reviews
No reviews
MODEL: RAV-GM801BTP-A / RAV-GM801ATP-A
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

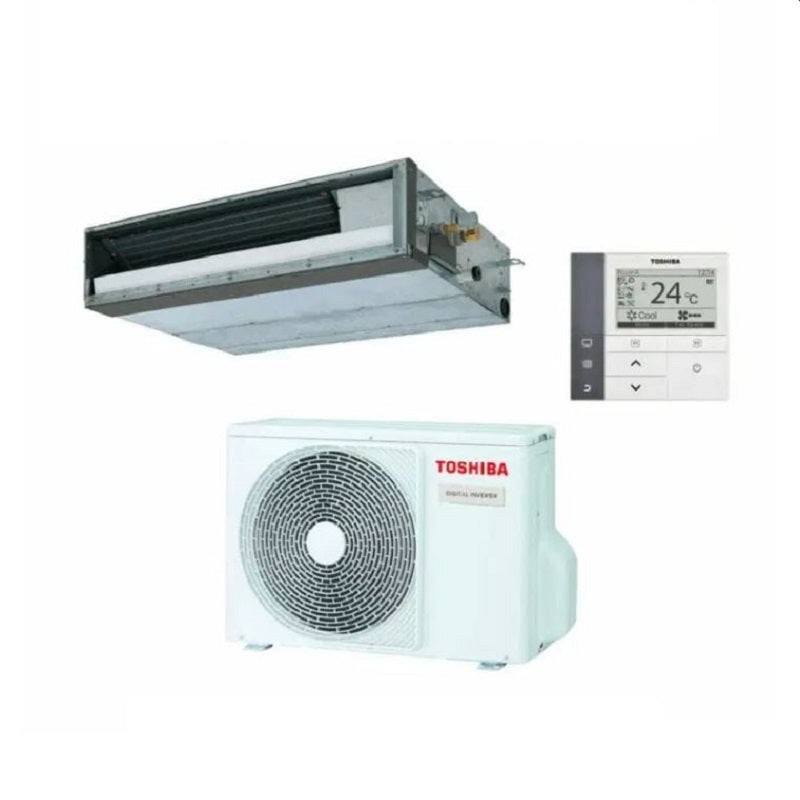

TOSHIBA RAV-GM801BTP-A / RAV-GM801ATP-A 7.1kW Digital Inverter Mid-Static Ducted System

Indoor: RAV-GM801BTP-A
Outdoor: RAV-GM801ATP-A
Backlit Wired Control with Weekly Timer: RBC-AMS55E-ES

7.1 kW Cooling
8.0 kW Heating

DIGITAL INVERTER MID-STATIC | R32

Specifications

Indoor Model RAV-GM801BTP-A
Outdoor Model RAV-GM801ATP-A
Cooling Capacity (Range) kW 7.1 [1.5 – 8.0]
EER 3.60
Heating Capacity (Range) kW 8.0 [1.5 – 9.0]
COP 4.00
Maximum Operating Current A 17.00
Air flow (H / M / L) l/s 472 / 388 / 277
External Static Pa 30 – 180
Dimensions – Indoor (H x W x D) mm 275 x 1000 x 750
Dimensions – Outdoor (Hx W x D) mm 630 x 800 x 300
Weight – Indoor / Outdoor kg 31 / 47
Sound Pressure Level Indoor / Outdoor dB(A) 40 / 51
Operating Range Cooling °C db -15 to 46
Operating Range Heating °C db -15 to 24
Pipe Sizes (Liquid / Gas) mm 9.52 / 15.88
Maximum Pipe Length / Lift m 50 / 30
Maximum Pre-charged Length m 20
Power Supply 1ph/220-240V/50Hz
