Toshiba 20kW Digital Inverter High Static Ducted System| 3 Phase RAV-RM2241DTP-E2 / RAV-GM2241AT8-A

$9,220.00
No reviews
No reviews
MODEL: RAV-RM2241DTP-E2 / RAV-GM2241AT8-A
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

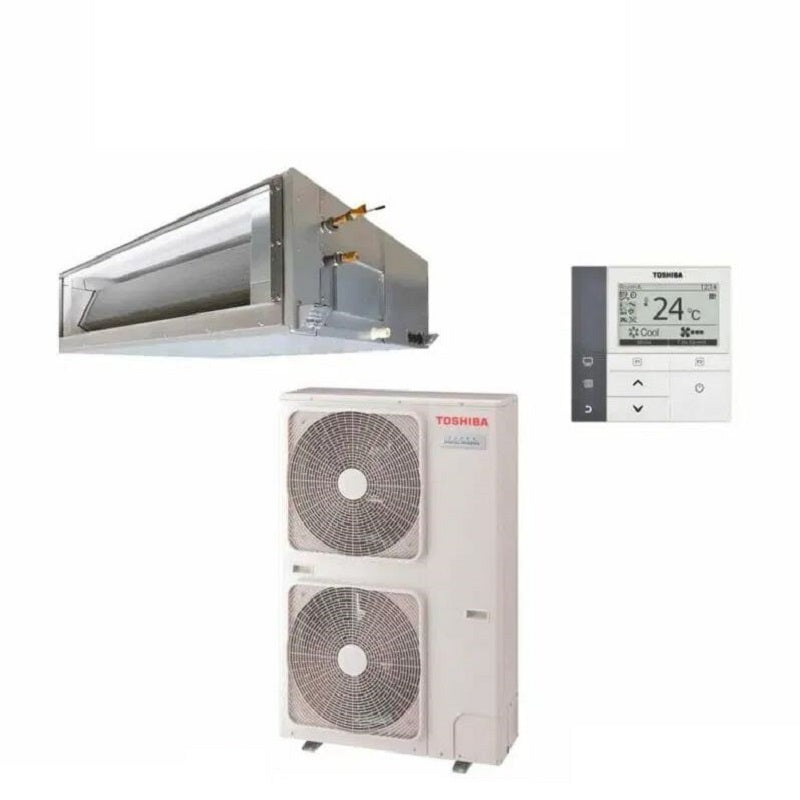

TOSHIBA RAV-RM2241DTP-E2 / RAV-GM2241AT8-A 20.0kW Digital Inverter High Static Ducted System| 3 Phase

Indoor: RAV-RM2241DTP-E2
Outdoor: RAV-RM2241DTP-E2
Backlit Wired Control with Weekly Timer: RBC-AMS55E-ES

20.0 kW Cooling
22.4 kW Heating

DIGITAL INVERTER HIGH STATIC | R32

Specifications

Indoor Model RAV-RM2241DTP-E2
Outdoor Model RAV-GM2241AT8-A
Cooling Capacity (Range) kW 20.0 [4.6 – 22.4]
EER 3.23
Heating Capacity (Range) kW 22.4 [4.6 – 25.0]
COP 3.92
Maximum Operating Current A 18.00
Air flow (H / M / L) l/s 1055 / 888 / 694
External Static Pa 50 – 250
Dimensions – Indoor (H x W x D) mm 448 x 1400 x 900
Dimensions – Outdoor (Hx W x D) mm 1550 x 1010 x 370
Weight – Indoor / Outdoor kg 97 / 142
Sound Pressure Level Indoor / Outdoor dB(A) 44 / 60
Operating Range Cooling °C db -15 to 46
Operating Range Heating °C db -27 to 15
Pipe Sizes (Liquid / Gas) mm 12.70 / 28.60
Maximum Pipe Length / Lift m 100 / 30
Maximum Pre-charged Length m 30
Power Supply 3ph/380-415V/50Hz
