Toshiba 14kW Digital Inverter Mid-Static Ducted System RAV-GM1601BTP-A / RAV-GM1601ATP-A

Toshiba

Toshiba 14kW Digital Inverter Mid-Static Ducted System RAV-GM1601BTP-A / RAV-GM1601ATP-A

$5,569.00
No reviews
No reviews
MODEL: RAV-GM1601BTP-A / RAV-GM1601ATP-A
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

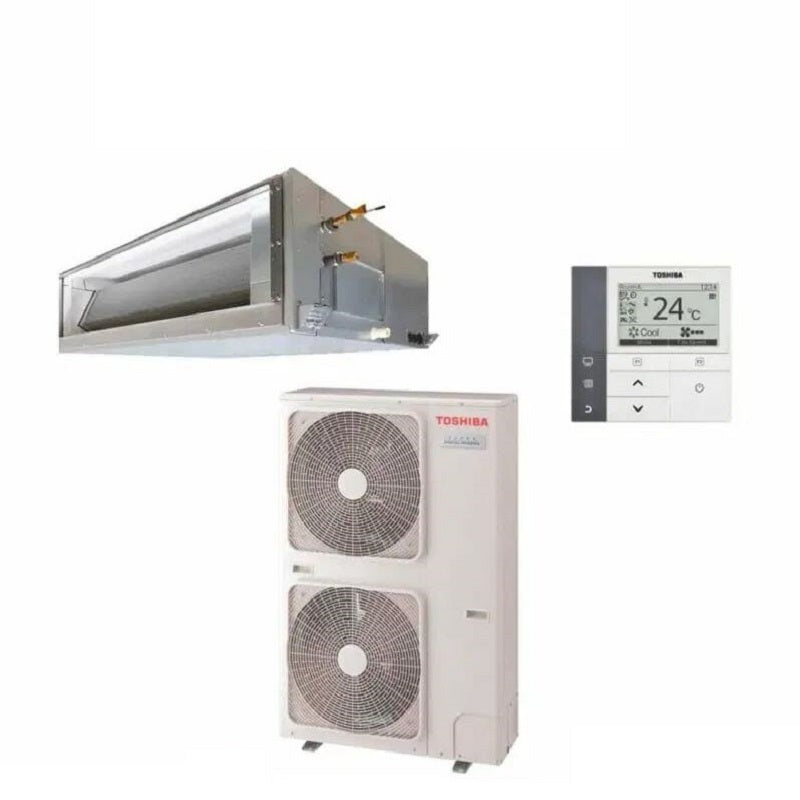

TOSHIBA RAV-GM1601BTP-A / RAV-GM1601ATP-A 14.0kW Digital Inverter Mid-Static Ducted System 1 Phase

Indoor: RAV-GM1601BTP-A
Outdoor: RAV-GM1601ATP-A
Backlit Wired Control with Weekly Timer: RBC-AMS55E-ES

14 kW Cooling
16 kW Heating

DIGITAL INVERTER MID-STATIC | R32

Specifications

Indoor Model RAV-GM1601BTP-A
Outdoor Model RAV-GM1601ATP-A
Cooling Capacity (Range) kW 14.0 [3.0 – 16.0]
EER 3.20
Heating Capacity (Range) kW 16.0 [3.0 – 18.0]
COP 3.50
Maximum Operating Current A 29.00
Air flow (H / M / L) l/s 652 / 555 / 416
External Static Pa 50 – 200
Dimensions – Indoor (H x W x D) mm 275 x 1400 x 750
Dimensions – Outdoor (Hx W x D) mm 1340 x 900 x 320
Weight – Indoor / Outdoor kg 41 / 97
Sound Pressure Level Indoor / Outdoor dB(A) 42 / 57
Operating Range Cooling °C db -15 to 46
Operating Range Heating °C db -15 to 24
Pipe Sizes (Liquid / Gas) mm 9.52 / 15.88
Maximum Pipe Length / Lift m 50 / 30
Maximum Pre-charged Length m 30
Power Supply 1ph/220-240V/50Hz
