Overview

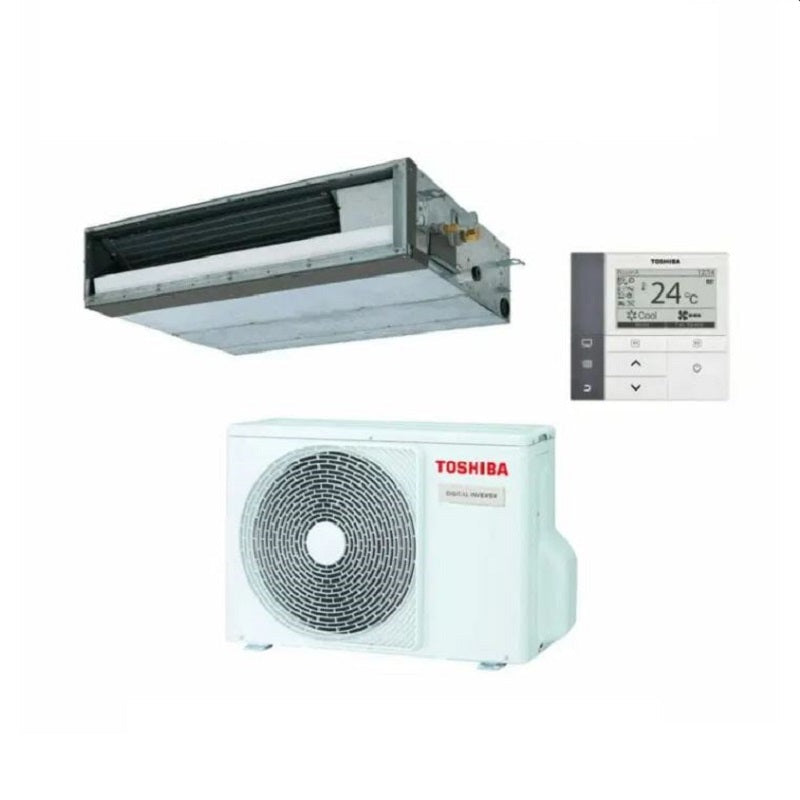

TOSHIBA RAV-GM1101DTP-A / RAV-GM1101ATP-A 10.0kW Digital Inverter High Static Ducted System 1 Phase

Indoor: RAV-GM1101DTP-A
Outdoor: RAV-GM1101ATP-A
Backlit Wired Control with Weekly Timer: RBC-AMS55E-ES

10.0 kW Cooling
11.2 kW Heating

DIGITAL INVERTER HIGH STATIC | R32

Specifications

Indoor Model RAV-GM1101DTP-A
Outdoor Model RAV-GM1101ATP-A
Cooling Capacity (Range) kW 10.0 [3.0 – 11.2]
EER 3.30
Heating Capacity (Range) kW 11.2 [3.0 – 13.0]
COP 4.00
Maximum Operating Current A 22.80
Air flow (H / M / L) l/s 805 / 694 / 466
External Static Pa 50 – 270
Dimensions – Indoor (H x W x D) mm 298 x 1400 x 750
Dimensions – Outdoor (Hx W x D) mm 890 x 900 x 320
Weight – Indoor / Outdoor kg 42 / 64
Sound Pressure Level Indoor / Outdoor dB(A) 48 / 55
Operating Range Cooling °C db -15 to 46
Operating Range Heating °C db -15 to 24
Pipe Sizes (Liquid / Gas) mm 9.52 / 15.88
Maximum Pipe Length / Lift m 50 / 30
Maximum Pre-charged Length m 30
Power Supply 1ph/220-240V/50Hz
