Samsung 3.5kW Aero Split System Air Conditioner | AR12DXFZCWKNSA / AR12DXFZCWKXSA
Samsung 3.5kW Aero Split System Air Conditioner | AR12DXFZCWKNSA / AR12DXFZCWKXSA
Samsung 3.5kW Aero Split System Air Conditioner | AR12DXFZCWKNSA / AR12DXFZCWKXSA
Samsung 3.5kW Aero Split System Air Conditioner | AR12DXFZCWKNSA / AR12DXFZCWKXSA

Samsung

Samsung 3.5kW Aero Split System Air Conditioner | AR12DXFZCWKNSA / AR12DXFZCWKXSA

$1,075.00
No reviews
No reviews
MODEL: AR12DXFZCWKNSA / AR12DXFZCWKXSA
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

Samsung AR12DXFZCWKNSA 3.5 kW Aero Wall Mounted Split System | R32


Indoor: AR12DXFZCWKNSA

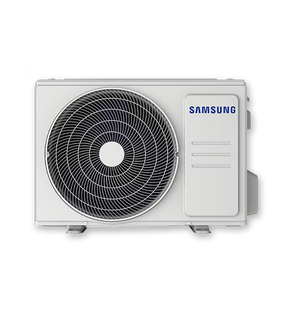

Outdoor: AR12DXFZCWKXSA


AI Energy Mode | In-built Wi-Fi | Energy Monitoring | 3-Step Auto Clean
3.5 kW Cooling | 4.0 kW Heating

Features

    • AI Energy Mode & AI Auto Cooling
    • In-built Wi-Fi with SmartThings


Shows the indoor unit analyzing its surroundings, including ‘Operation Time’, Indoor Temp.’, Setting Temp.’, and Outdoor Temp.’, along with the AI logo.

It shows setting up 'AI Energy Mode' using a remote control and mobile phone along with the 'AI logo. The phrase 'up to 20% energy saving with AI Energy Mode' appears above a close-up of wind coming out of a micro hole.

Specifications

Model Name
 Indoor Unit AR12DXFZCWKNSA
Outdoor Unit AR12DXFZCWKXSA
Capacity
 Cooling (Min/Std/Max) (kW) 0.99/3.5/4
Heating (Min/Std/Max) (kW) 0.74/4.0/5.5
Refrigerant
 Type R32
Factory Charging (Kg) 0.95
Energy Efficiency
 EER (W/W) 3.8
COP (W/W) 3.81
AEER (W/W) 3.76
ACOP (W/W) 3.76
Star rating
(Cooling – Hot/Average/Cold)		 4.0/4.0/4.0
Star rating
(Cooling – Hot/Average/Cold)		 3.5/2.5/2.0
Power
 Power Supply (Ø, V, Hz) 1, 220-240, 50
Power Input (Min/Std/ Max)
 Cooling (kW) 0.17/0.92/1.05
Heating (kW) 0.14/1.05/1.56
Current Input (Min/Std/ Max)
 Cooling (A) 1.3/4.5/5
Heating (A) 1/5.1/6.8
Indoor Unit
Air Flow Rate (l/s)
 Cooling (T/H/M/L) 183/173/155/137
Heating (T/H/M/L) 210/200/183/165
Sound Pressure Level (H/Silent) 40/17 dB(A)
Net Weight (Kg) 9.8
Shipping Weight (Kg) 11.2
Net Dimensions (WxHxD) 889mm x 299mm x 215mm
Shipping Dimensions (WxHxD) 950mm x 290mm x 375mm
Outdoor Unit
 Compressor Type BLDC ROTARY
Sound Pressure Level (Cooling) 46 dB(A)
Net Weight (Kg) 29.8
Shipping Weight (Kg) 31.9
Net Dimensions (WxHxD) 790mm x 548mm x 285mm
Shipping Dimensions (WxHxD) 913mm x 622mm x 371mm
Installation
 Liquid Pipe, Φ, mm (inch) 6.35 (1/4)
Gas Pipe, Φ, mm (inch) 9.52 (3/8)
Max Piping Length (Precharged), (m) 15 (15)
Max Piping Heigh (m) 8
Drain Pipe (Φ, mm) 16.3, 550
Additional Accessories
 Easy Filter Plus Removable/Washable
Wi-Fi •
Control System Infrared remote control Included
Operating Temperature Range
 Cooling (℃) -10 ~ 46
Heating (℃) -15 ~ 24
