| Model Name | Indoor Unit | AC180JNHFKH/SA | ||
| Outdoor unit | AC180JXAFNH/SA | |||
| Power Supply | Indoor Unit | 220-20V 1-phase | ||
| Outdoor Unit | 380-415V 3-phase | |||
| Capacity | Cooling (Min / Std / Max) | kW | 6.0 / 18.0 / 20.0 | |
| Heating (Min / Std / Max) | kW | 4.8 / 20.0 / 22.5 | ||
| Efficiency | EER | 3.4 | ||
| COP | 3.7 | |||
| Circuit Amps | MCA | A | 14.5 | |
| MFA | A | 16.0 | ||
| Indoor Unit | Airflow Rate (H / M / L) | L / s | 1183 / 1000 / 833 | |
| ESP (H / M / L) | Pa | 196 / 60 / 49 | ||
| Sound Pressure @ 1.5m (H/L) | dB(A) | 43 / 39 / 35 | ||
| Unit Dimensions (W x H x D) | mm | 1350 x 450 x 910 | ||
| Weight | kg | 82.5 | ||
| Supply Air Opening (W x H) | mm | 1284 x 360 | ||
| Return Air Opening (W x H) | mm | 1284 x 360 | ||
| Drain Pipe Connection | mm | OD25, ID20 | ||
| Outdoor Unit | Compressor Type | Twin BLDC Rotary | ||
| Sound Pressure @ 1m (Cool/Heat) | dB(A) | 55.0 / 57.0 | ||
| Weight | kg | 107.5 | ||
| Unit Dim (W x H x D) | mm | 940 x 1420 x 330 | ||
| Pipe Connection | Liquid Pipe | mm | ø9.52 | |
| Gas Pipe | mm | ø19.05 | ||
| Installation | Max. Length | m | 75 (75) | |
| Max. Height | m | 30 (30) | ||
| Refrigerant | Type | R410A | ||
| Factory Charge | kg | 4.6 | ||
| Additional Charge | kg | +50g / m over 30m | ||
| Operating Temp. Range | Cooling | °C | -15 to 50 | |
| Heating | °C | -20 to 24 | ||
Samsung

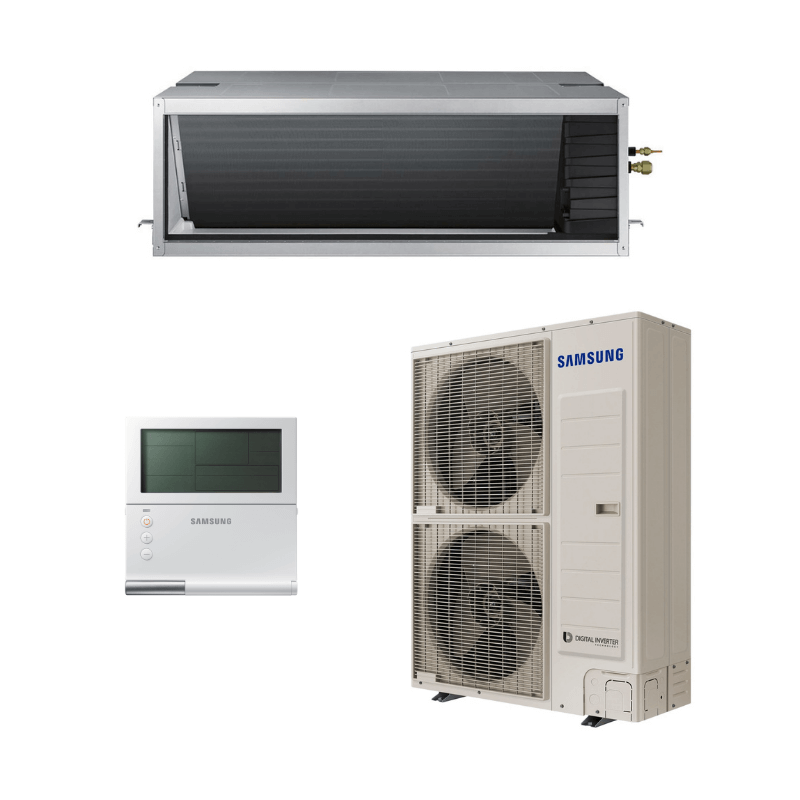

Samsung 18kW Duct S2 Ducted Air Conditioner Three Phase AC180JNHFKH/SA
Quantity:
Overview
Samsung 18kW Duct S2 Inverter Ducted Air Conditioner | 3 Phase
The Samsung S2 18kW is a very energy-efficient system that may be installed in a variety of locations. It utilises less energy for the same airflow.
The splittable type indoor unit’s fan and heat exchanger may be separated. Making it easier to install into tight roof spaces.
Features of Samsung Duct S2 18kW:
- Twin BLCD compressor and auto ESP.
- Demand Response Enabled Device (D.R.E.D)
- 3-way service access
- Digital Inverter Technology

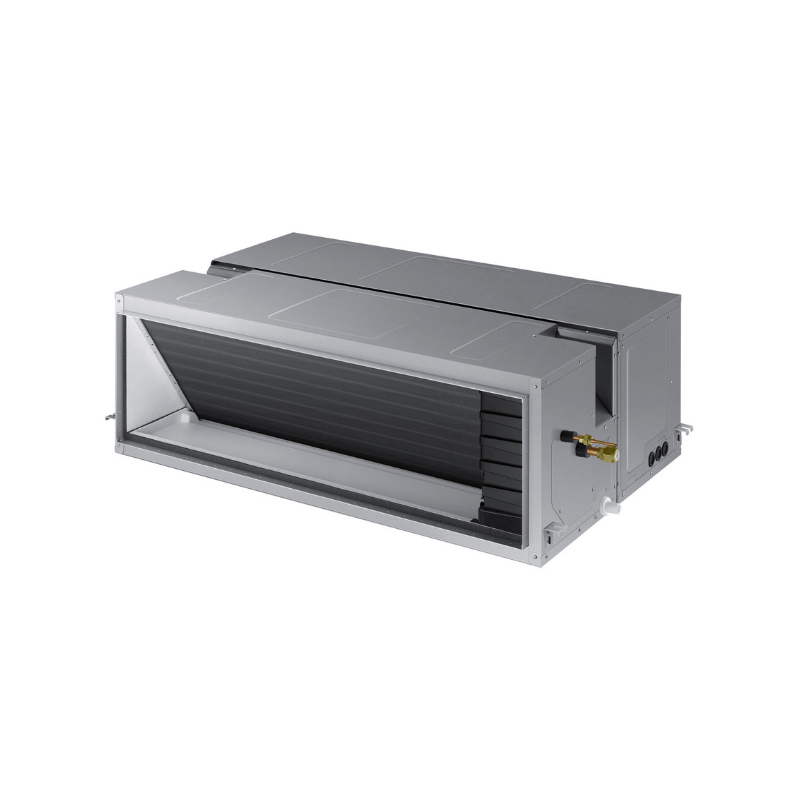

Indoor : AC180JNHFKH/SA 18.0kW Duct S2 Splittable Indoor

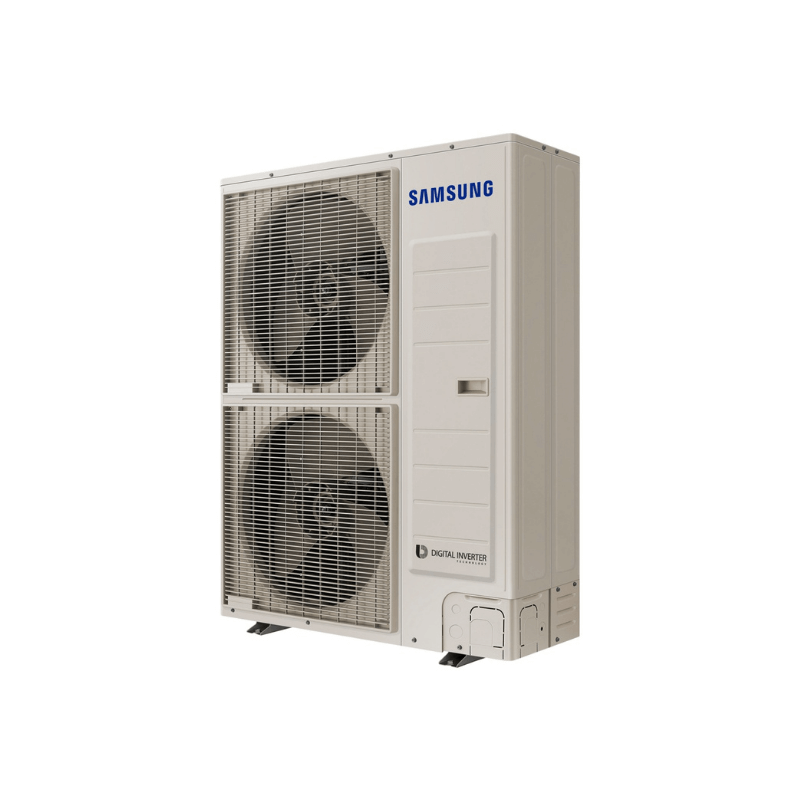

Outdoor : AC180JXAFNH/SA 18.0kW R32

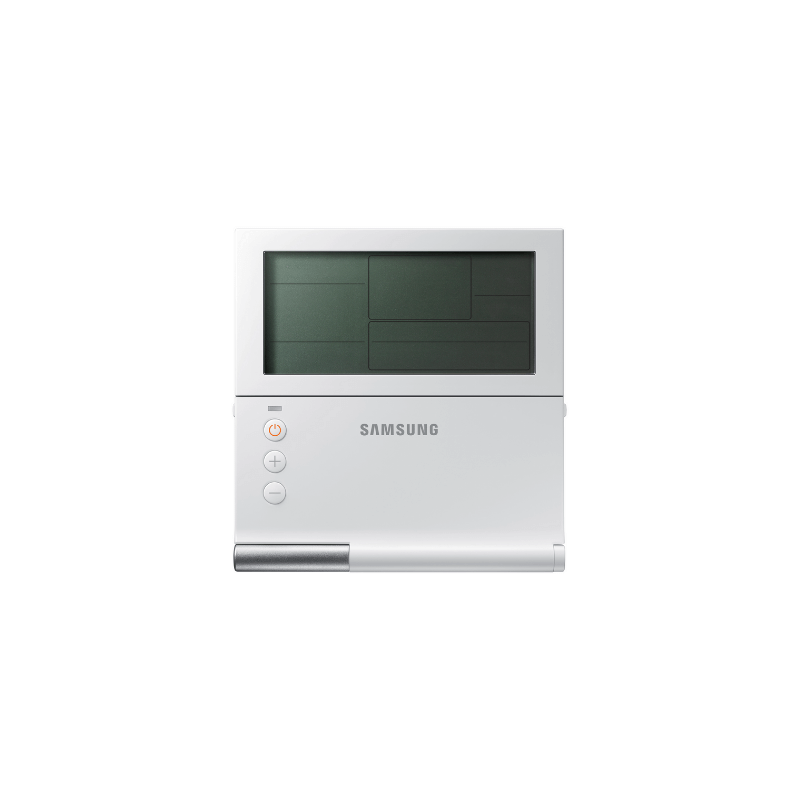

Controller : MWR-WE13N
Features
Powerful airflow for fast cooling
More fans than ever
Samsung Duct S2 provides powerful airflow for fast cooling for your home. With 2 fans in the 5.2kW model and 3 fans in the 7.1kW-14kW models, the Duct S2 will provide the airflow for comfort when you needed most.
Low running cost
The Duct S2’s highly efficient air conditioning system helps to avoid a hefty bill – meaning you can run your air conditioning all day long.
Lightweight and easy to install
Comfortable and Reliable
Samsung Ducted Air Conditioners are designed to keep on working, even on those extremely
hot or cold days. With an operating range of -15°C to 50°C outside air temperature for cooling,
and -20°C to 24°C for heating, you can be assured that your unit can work when you need it*.
Its smart inverter system delivers your set temperature quickly, and keeps performing fine tune adjustments to ensure a constant, comfortable environment.
Rest assured with Samsung quality
5 Year Parts and Labour Warranty
Peace of mind knowing we have you covered with Samsung’s 5 year parts and labour warranty for residential applications. For full terms and conditions visit Samsung Warranty
