Overview

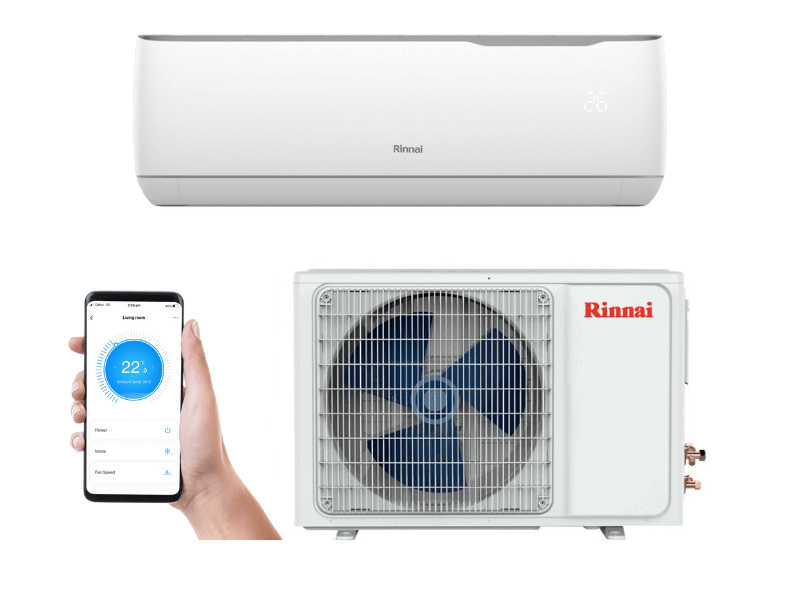

Rinnai T Series 8kW Reverse Cycle Inverter Split System Air Conditioner HSNRT80B
$100 Cash Back Via Redemption
Relax with Rinnai’s latest innovation in home comfort.
With convenient Wi-Fi control and using a more eco-friendly R32 refrigerant, the Rinnai 8kW T Series Reverse Cycle Split System offers complete comfort with added energy-saving.
Features
- Sleek, modern design
- Energy efficient inverter technology
- Fresh function
- Self cleaning function
- Wi-Fi Enabled
- Delay timer to turn the appliance on or off within a specific time period
- Intuitive end of season cleaning function
- Adjustable air flow direction
- Outdoor operation range for temperatures of up to 52° Celsius
- Low operating noise levels
- Boost/turbo mode to reach the set temperature within a shorter period of time
- R32 Refrigerant
- 5 year manufactures warranty
Specifications
| Rinnai – System Model No. | HSNRT80B | ||
| Nominal Capacity | kW | 8.0 | |
| Power Supply to Outdoor Unit | V – Ph – Hz | 220~240 – 1 – 50 | |
| Recommended Circuit Breaker | A | 25.0 | |
| Connectivity | Wi-Fi Enabled | ||
| Demand Response Enabling Device | DRED Enabled | ||
|
Cooling |
Rated Capacity |
kW |
8.00 |
| Capacity Range | 2.80-8.50 | ||
| Rated Power Input | W | 2400 | |
| Rated Current (Range) | A | 11.00 | |
| AEER | W/W | 3.33 | |
| Star Rating: Hot / Average / Cold | 3.0 / 2.5 / 3.0 | ||
|
Heating |
Rated Capacity |
kW |
8.4 |
| Capacity Range | 2.6-8.8 | ||
| Rated Power Input | W | 2550 | |
| Rated Current (Range) | A | 11.0 | |
| ACOP | W/W | 3.29 | |
| Star Rating: Hot / Average / Cold | 2.5 / 2.0 / 1.5 | ||
| Maximum Input Power (Cooling / Heating) | W | 3000 | |
| Maximum Input Current (Cooling / Heating) | A | 18.0 | |
| Suitable Area Coverage (up to 2.6m insulated ceiling) | m2 | 40-54 | |
| Moisture Removal | L/h | 2.50 | |

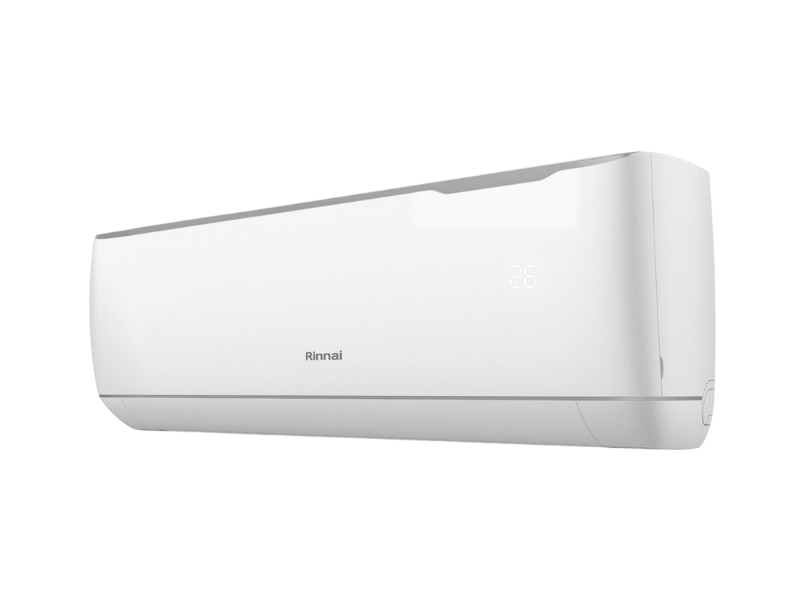

| Indoor Unit | HINRT80B | ||
|
Air Flow (Turbo / Hi / Med / Lo / Min) |
L/s |
347 / 306 / 275 /
236 / 183 |
|
| Sound Power Level | dB(A) | 65 | |
| Sound Pressure Level @ 1m (Turbo / Hi / Med / Lo / Min) | dB(A) | 50 / 48 / 44 / 40 / 37 | |
| Air Swing Louvres | Direction | 4-way swing | |
|
Dimensions |
Dimension (W x H x D) |
mm |
1132 × 330 × 232 |
| Packing (W x H x D) | 1205 × 400 × 317 | ||
| Net / Gross Weight | kg | 14.0 / 17.0 | |
|
Operating Range |
Cooling |
˚C |
16°C |
| Heating | 32°C | ||
| Outdoor Unit | HONRT80B | ||
| Sound Power Level |
dB(A) |
66 | |
| Sound Pressure Level @ 1m | 59 | ||
|
Dimensions |
Dimension (W x H x D) |
mm |
970 × 805 × 395 |
| Packing (W x H x D) | 1105 × 890 × 495 | ||
| Net / Gross Weight | kg | 61 / 66 | |
|
Refrigerant |
Type | R32 | |
| Charged Volume | kg | 1.60 | |
| Pipe Size: Liquid / Gas | mm | 6.35 / 15.88 | |
| Maximum Pipe Length |
m |
30 | |
| Chargeless Length | 10 | ||
| Extra Charge for Lengths >10m | g/m | 30 | |
| Maximum Vertical Separation | m | 20 | |
| Ambient Temperature Limits | Cooling |
˚C |
-15 ~ 52°C |
| Heating | -15 ~ 24°C | ||
