Overview

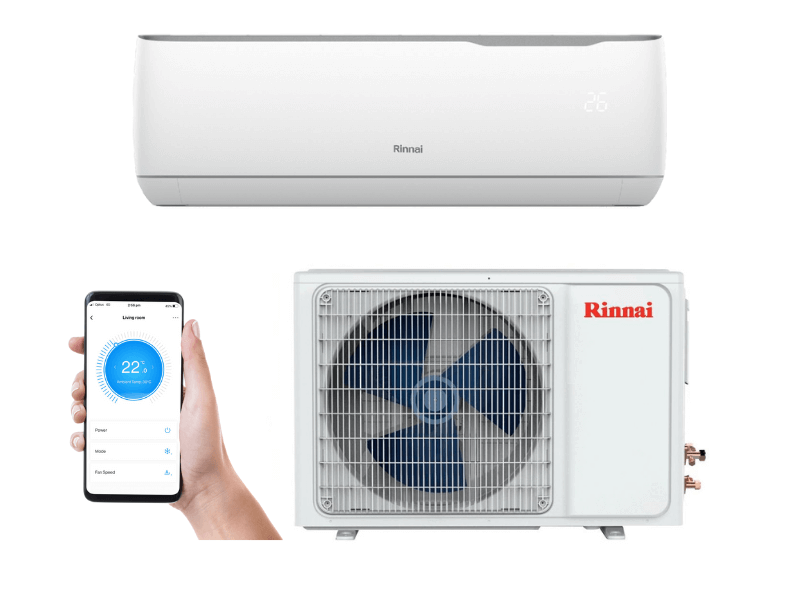

Rinnai T Series 5kW Reverse Cycle Inverter Split System Air Conditioner HSNRT50B

$75 Cash Back Via Redemption

Relax with Rinnai’s latest innovation in home comfort.

Featuring a 4.5-star energy rating, convenient Wi-Fi control and using a more eco-friendly R32 refrigerant, the Rinnai 5kW T Series Reverse Cycle Split System offers complete comfort with added energy-saving.

Rinnai T Series Brochure.pdf

Features

  • Sleek, modern design
  • Energy efficient inverter technology
  • Fresh function
  • Self cleaning function

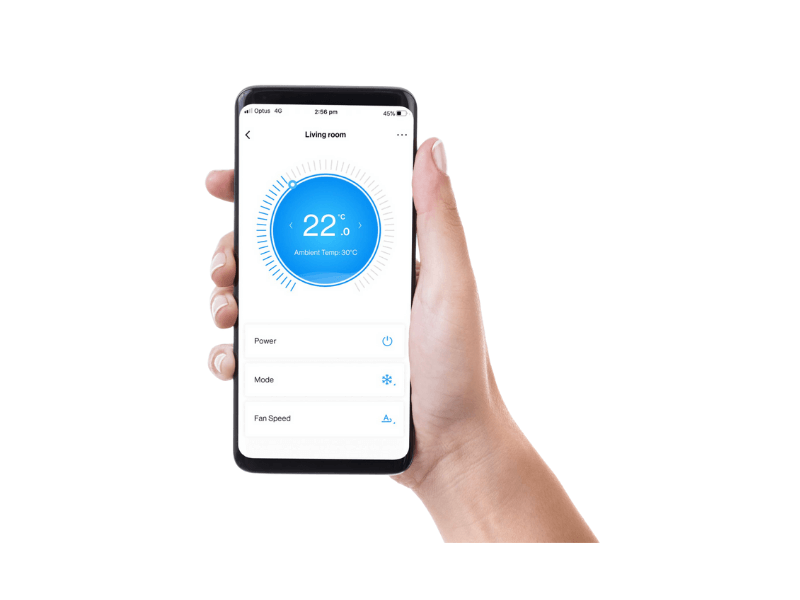

  • Wi-Fi Enabled
  • Delay timer to turn the appliance on or off within a specific time period
  • Intuitive end of season cleaning function
  • Adjustable air flow direction
  • Outdoor operation range for temperatures of up to 52° Celsius
  • Low operating noise levels
  • Boost/turbo mode to reach the set temperature within a shorter period of time
  • R32 Refrigerant
  • 5 year manufactures warranty

    Specifications

    Rinnai – System Model No. HSNRT50B
    Nominal Capacity kW 5.2
    Power Supply to Outdoor Unit V – Ph – Hz 220~240 – 1 – 50
    Recommended Circuit Breaker A 16.0
    Connectivity Wi-Fi Enabled
    Demand Response Enabling Device DRED Enabled








    Cooling

    Rated Capacity



    kW

    5.20
    Capacity Range 1.3-5.70
    Rated Power Input W 1280
    Rated Current (Range) A 5.60
    AEER W/W 4.04
    Star Rating: Hot / Average / Cold 4.5 / 4.0 / 4.5








    Heating

    Rated Capacity



    kW

    5.2
    Capacity Range 1.3-6.3
    Rated Power Input W 1260
    Rated Current (Range) A 5.5
    ACOP W/W 4.10
    Star Rating: Hot / Average / Cold 3.0 / 2.5 / 2.0
    Maximum Input Power (Cooling / Heating) W 2300
    Maximum Input Current (Cooling / Heating) A 12.0
    Suitable Area Coverage (up to 2.6m insulated ceiling) m2 25-34
    Moisture Removal L/h 1.60

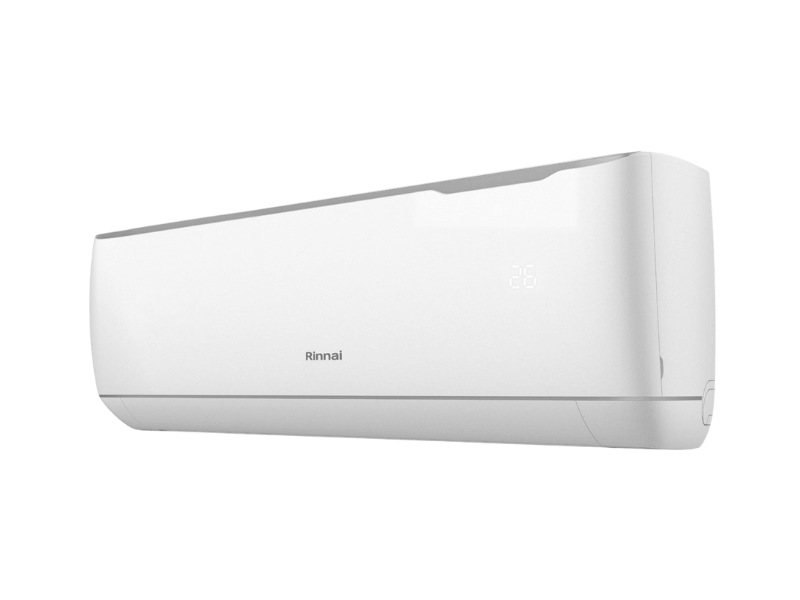

    Indoor Unit HINRT50B




    Air Flow (Turbo / Hi / Med / Lo / Min)





    L/s

    292 / 258 / 231 /



    197 / 152

    Sound Power Level dB(A) 61
    Sound Pressure Level @ 1m (Turbo / Hi / Med / Lo / Min) dB(A) 49 / 44 / 41 / 36 / 29
    Air Swing Louvres Direction 4-way swing




    Dimensions

    Dimension (W x H x D)



    mm

    997 × 316 × 227
    Packing (W x H x D) 1067 × 385 × 312
    Net / Gross Weight kg 13.0 / 16.0




    Operating Range

    Cooling



    ˚C

    16°C
    Heating 32°C
    Outdoor Unit HONRT50B
    Sound Power Level



    dB(A)

    60
    Sound Pressure Level @ 1m 44




    Dimensions

    Dimension (W x H x D)



    mm

    900 × 700 × 350
    Packing (W x H x D) 1020 × 770 × 430
    Net / Gross Weight kg 45 / 49










    Refrigerant

    Type R32
    Charged Volume kg 1.20
    Pipe Size: Liquid / Gas mm 6.35 / 12.70
    Maximum Pipe Length



    m

    30
    Chargeless Length 10
    Extra Charge for Lengths >10m g/m 15
    Maximum Vertical Separation m 20
    Ambient Temperature Limits Cooling



    ˚C

    -15 ~ 52°C
    Heating -15 ~ 24°C
