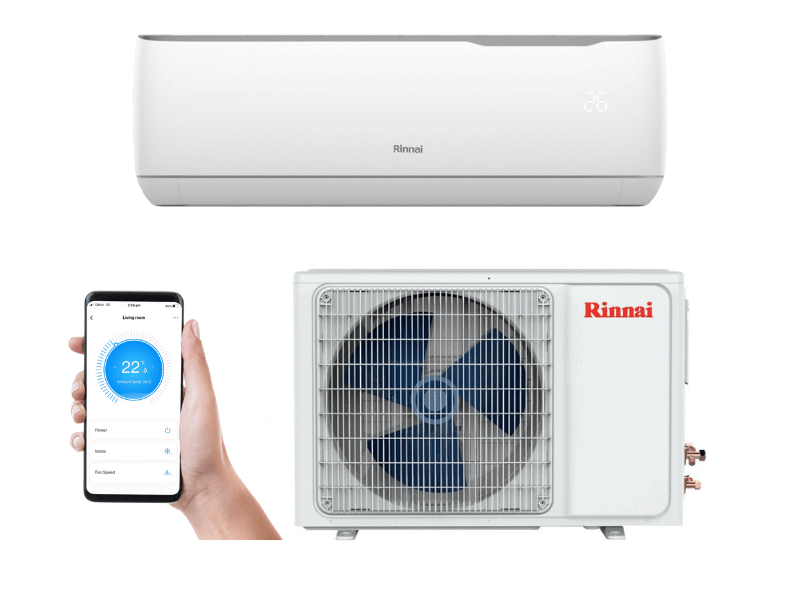

Rinnai T Series 3.5kW Reverse Cycle Inverter Split System Air Conditioner HSNRT35B
$50 Cash Back Via Redemption
Relax with Rinnai’s latest innovation in home comfort.
Featuring a 5.5-star energy rating, convenient Wi-Fi control and using a more eco-friendly R32 refrigerant, the Rinnai 3.5kW T Series Reverse Cycle Split System offers complete comfort with added energy-saving.
Features
- Sleek, modern design
- Energy efficient inverter technology
- Fresh function
- Self cleaning function
- Wi-Fi Enabled
- Delay timer to turn the appliance on or off within a specific time period
- Intuitive end of season cleaning function
- Adjustable air flow direction
- Outdoor operation range for temperatures of up to 52° Celsius
- Low operating noise levels
- Boost/turbo mode to reach the set temperature within a shorter period of time
- R32 Refrigerant
- 5 year manufactures warranty
Specifications
| Rinnai – System Model No. | HSNRT35B | ||
| Nominal Capacity | kW | 3.5 | |
| Power Supply to Outdoor Unit | V – Ph – Hz | 220~240 – 1 – 50 | |
| Recommended Circuit Breaker | A | 16.0 | |
| Connectivity | Wi-Fi Enabled | ||
| Demand Response Enabling Device | DRED Enabled | ||
|
Cooling |
Rated Capacity |
kW |
3.50 |
| Capacity Range | 0.80-4.30 | ||
| Rated Power Input | W | 870 | |
| Rated Current (Range) | A | 4.00 | |
| AEER | W/W | 4.00 | |
| Star Rating: Hot / Average / Cold | 5.5 / 5.0 / 5.5 | ||
|
Heating |
Rated Capacity |
kW |
4.0 |
| Capacity Range | 0.9-4.8 | ||
| Rated Power Input | W | 1050 | |
| Rated Current (Range) | A | 4.8 | |
| ACOP | W/W | 3.79 | |
| Star Rating: Hot / Average / Cold | 3.0 / 2.5 / 2.0 | ||
| Maximum Input Power (Cooling / Heating) | W | 1850 | |
| Maximum Input Current (Cooling / Heating) | A | 9.5 | |
| Suitable Area Coverage (up to 2.6m insulated ceiling) | m2 | 18-24 | |
| Moisture Removal | L/h | 1.10 | |

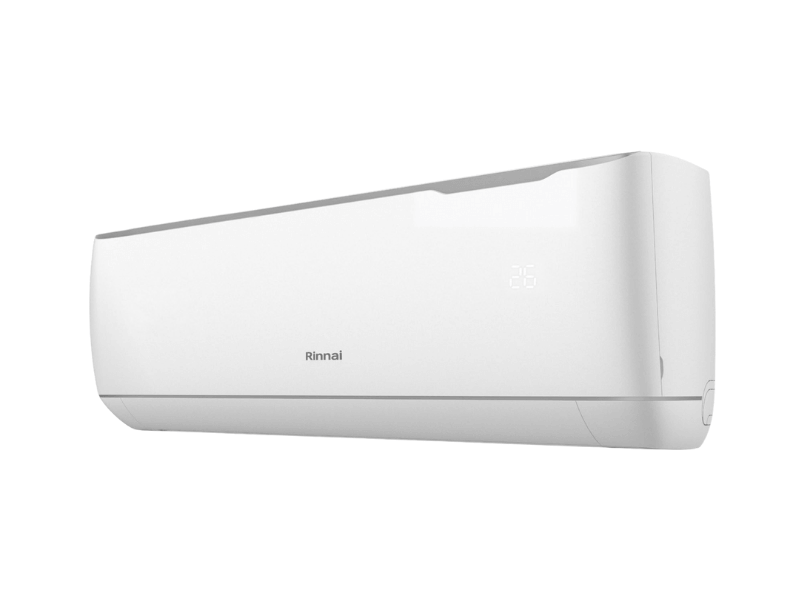

| Indoor Unit | HINRT35B | ||
|
Air Flow (Turbo / Hi / Med / Lo / Min) |
L/s |
236 / 207 / 186 /
164 / 114 |
|
| Sound Power Level | dB(A) | 57 | |
| Sound Pressure Level @ 1m (Turbo / Hi / Med / Lo / Min) | dB(A) | 46 / 42 / 39 / 35 / 24 | |
| Air Swing Louvres | Direction | 4-way swing | |
|
Dimensions |
Dimension (W x H x D) |
mm |
940 x 316 x 224 |
| Packing (W x H x D) | 1010 x 385 x 307 | ||
| Net / Gross Weight | kg | 12.0 / 14.5 | |
|
Operating Range |
Cooling |
˚C |
16°C |
| Heating | 32°C | ||
| Outdoor Unit | HONRT35B | ||
| Sound Power Level |
dB(A) |
61 | |
| Sound Pressure Level @ 1m | 46 | ||
|
Dimensions |
Dimension (W x H x D) |
mm |
800 × 545 × 315 |
| Packing (W x H x D) | 920 × 620 × 400 | ||
| Net / Gross Weight | kg | 30.5 / 34 | |
|
Refrigerant |
Type | R32 | |
| Charged Volume | kg | 1.00 | |
| Pipe Size: Liquid / Gas | mm | 6.35 / 12.70 | |
| Maximum Pipe Length |
m |
20 | |
| Chargeless Length | 10 | ||
| Extra Charge for Lengths >10m | g/m | 15 | |
| Maximum Vertical Separation | m | 12 | |
| Ambient Temperature Limits | Cooling |
˚C |
-15 ~ 52°C |
| Heating | -15 ~ 24°C | ||
