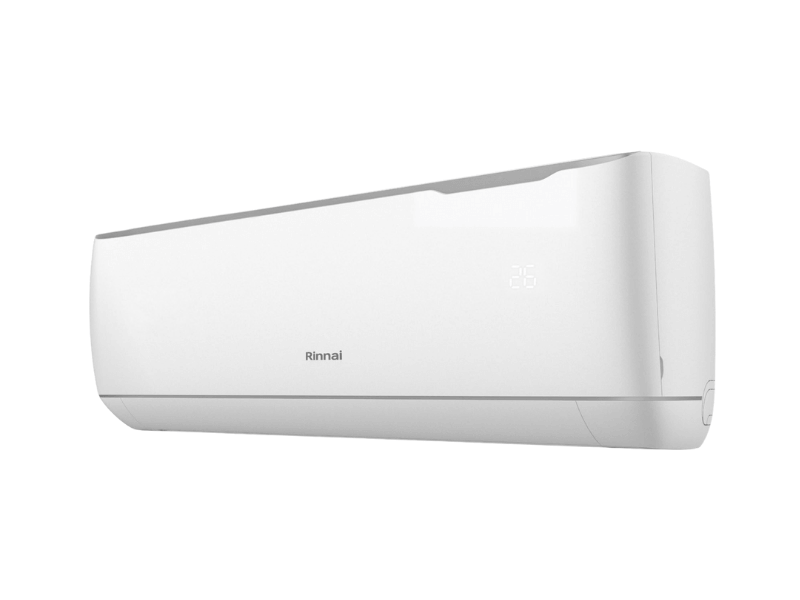

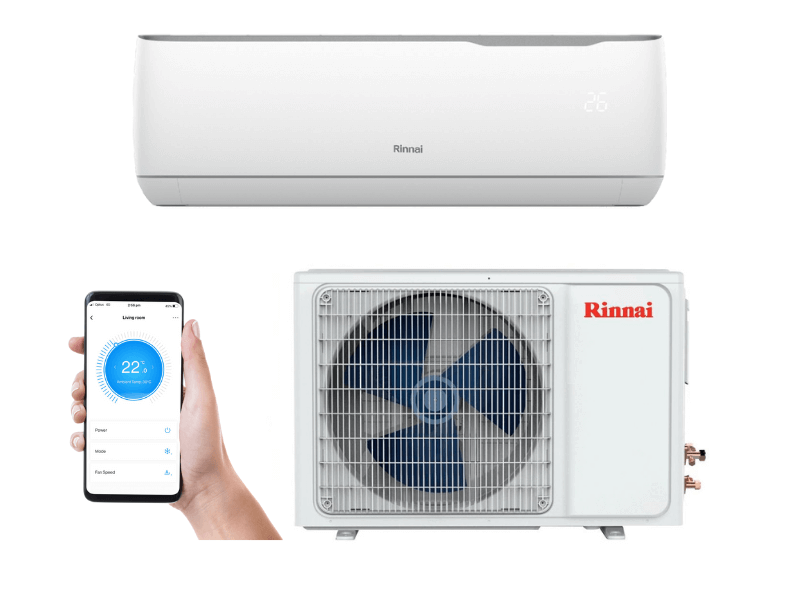

Rinnai T Series 2.5kW Reverse Cycle Inverter Split System Air Conditioner HSNRT25B
$50 Cash Back Via Redemption
Relax with Rinnai’s latest innovation in home comfort.
Featuring a 9-star energy rating, convenient Wi-Fi control and using a more eco-friendly R32 refrigerant, the Rinnai 2.5kW T Series Reverse Cycle Split System offers complete comfort with added energy-saving.
Features
- Sleek, modern design
- Energy efficient inverter technology
- Fresh function
- Self cleaning function

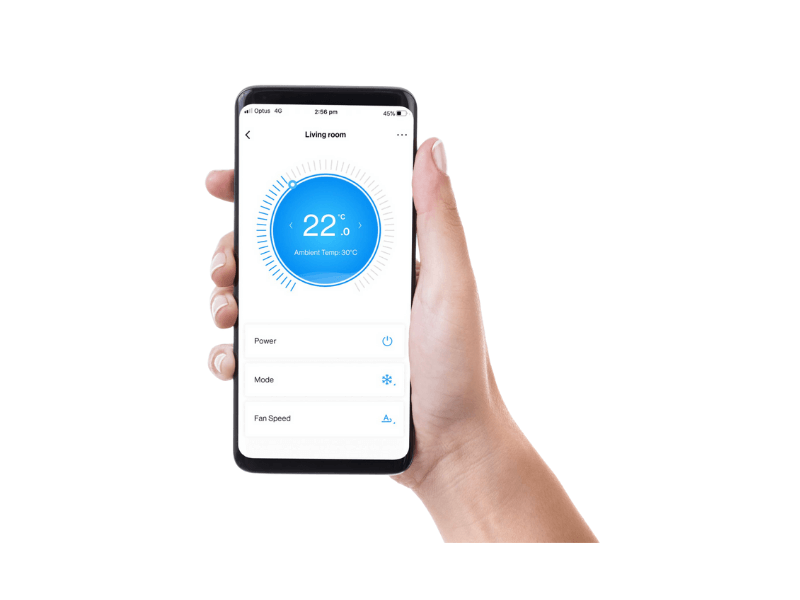

- Wi-Fi Enabled
- Delay timer to turn the appliance on or off within a specific time period
- Intuitive end of season cleaning function
- Adjustable air flow direction
- Outdoor operation range for temperatures of up to 52° Celsius
- Low operating noise levels
- Boost/turbo mode to reach the set temperature within a shorter period of time
- R32 Refrigerant
- 5 year manufactures warranty
Specifications
| Rinnai – System Model No. | HSNRT25B | ||
| Nominal Capacity | kW | 2.6 | |
| Power Supply to Outdoor Unit | V – Ph – Hz | 220~240 – 1 – 50 | |
| Recommended Circuit Breaker | A | 16.0 | |
| Connectivity | Wi-Fi Enabled | ||
| Demand Response Enabling Device | DRED Enabled | ||
|
Cooling |
Rated Capacity |
kW |
2.64 |
| Capacity Range | 0.6-3.20 | ||
| Rated Power Input | W | 530 | |
| Rated Current (Range) | A | 3.20 | |
| AEER | W/W | 4.94 | |
| Star Rating: Hot / Average / Cold | 9.0 / 7.0 / 7.5 | ||
|
Heating |
Rated Capacity |
kW |
2.7 |
| Capacity Range | 1.5-3.3 | ||
| Rated Power Input | W | 600 | |
| Rated Current (Range) | A | 3.0 | |
| ACOP | W/W | 4.24 | |
| Star Rating: Hot / Average / Cold | 3.5 / 3.0 / 2.5 | ||
| Maximum Input Power (Cooling / Heating) | W | 1250 | |
| Maximum Input Current (Cooling / Heating) | A | 6.0 | |
| Suitable Area Coverage (up to 2.6m insulated ceiling) | m2 | 13-17 | |
| Moisture Removal | L/h | 0.80 | |
| Indoor Unit | HINRT25B | ||
|
Air Flow (Turbo / Hi / Med / Lo / Min) |
L/s |
172 / 153 / 135
/ 117 / 78 |
|
| Sound Power Level | dB(A) | 54 | |
| Sound Pressure Level @ 1m (Turbo / Hi / Med / Lo / Min) | dB(A) | 43 / 38 / 34 / 30 / 22 | |
| Air Swing Louvres | Direction | 4-way swing | |
|
Dimensions |
Dimension (W x H x D) |
mm |
881 × 294 × 194 |
| Packing (W x H x D) | 965 × 370 × 282 | ||
| Net / Gross Weight | kg | 9.5 / 11.0 | |
|
Operating Range |
Cooling |
˚C |
16°C |
| Heating | 32°C | ||
| Outdoor Unit | HONRT25B | ||
| Sound Power Level |
dB(A) |
59 | |
| Sound Pressure Level @ 1m | 49 | ||
|
Dimensions |
Dimension (W x H x D) |
mm |
800 × 545 × 315 |
| Packing (W x H x D) | 920 × 620 × 400 | ||
| Net / Gross Weight | kg | 28 / 32 | |
|
Refrigerant |
Type | R32 | |
| Charged Volume | kg | 0.66 | |
| Pipe Size: Liquid / Gas | mm | 6.35 / 9.52 | |
| Maximum Pipe Length |
m |
20 | |
| Chargeless Length | 10 | ||
| Extra Charge for Lengths >10m | g/m | 15 | |
| Maximum Vertical Separation | m | 12 | |
| Ambient Temperature Limits | Cooling |
˚C |
-15 ~ 52°C |
| Heating | -15 ~ 24°C | ||
