Overview

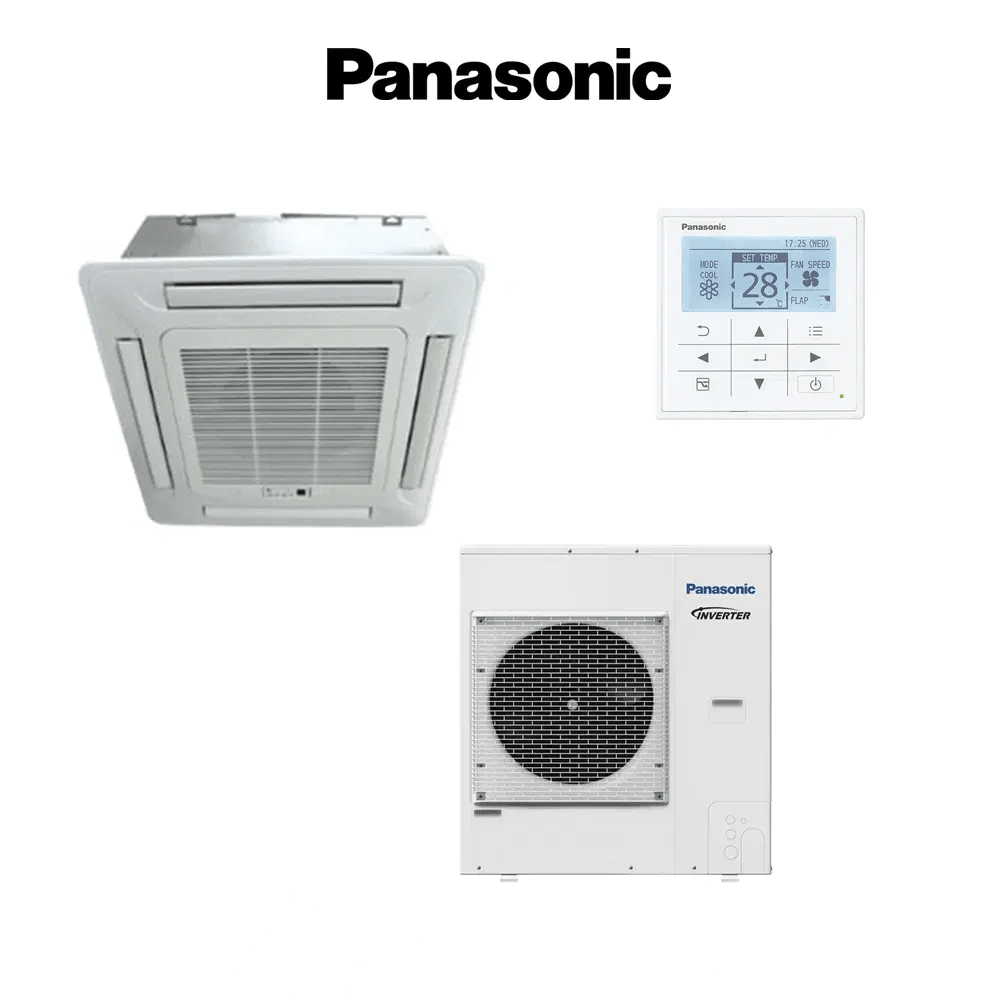

Panasonic S-1014PU3E / U-100PZ3R8 10kW R32 Cassette Air Conditioner
The Panasonic S-1014PU3E / U-100PZ3R8 is a versatile 10kW cassette air conditioner, designed to deliver exceptional cooling and heating performance. Equipped with R32 refrigerant, this unit ensures efficient energy usage and minimal environmental impact. Ideal for commercial spaces, it features a sleek design, quiet operation, and includes a wired controller and fascia for easy management. Experience reliable climate control with the Panasonic cassette system, tailored for Australian conditions.
Indoor: Dimensions 319 x 840 x 840 mm
Outdoor: Dimensions 996 x 980 x 370 mm
Power Supply: 415/3/50
Specifications
| Cooling (kW): | 10.0 |
| Heating (kW): | 10.0 |
| Airflow (l/sec) H/M/L: | 601/434/300 |
| Indoor Dimensions H x W x D (mm): | 319 x 840 x 840 |
| Outdoor Dimensions H x W x D (mm): | 996 x 980 x 370 |
| Power Supply (V/Ph/Hz): | 415/3/50 |
| Power Supply Connection: | Outdoor Unit |
| Refrigerant Type: | R32 |
| Pipe Sizes (Liquid/Gas mm): | 9.35/15.88 (No indoor reducers required) |
| Min/Max Pipe Run (m): | 5/50 |
| Pre-Charged Run (m): | 30 |
| Add Ref Charge (g/m): | 45 |
| Max Elevation OU Higher/Lower than IU (m): | 30/15 |
| Weight Indoor/Outdoor (kg): | 25/90 |
