Overview

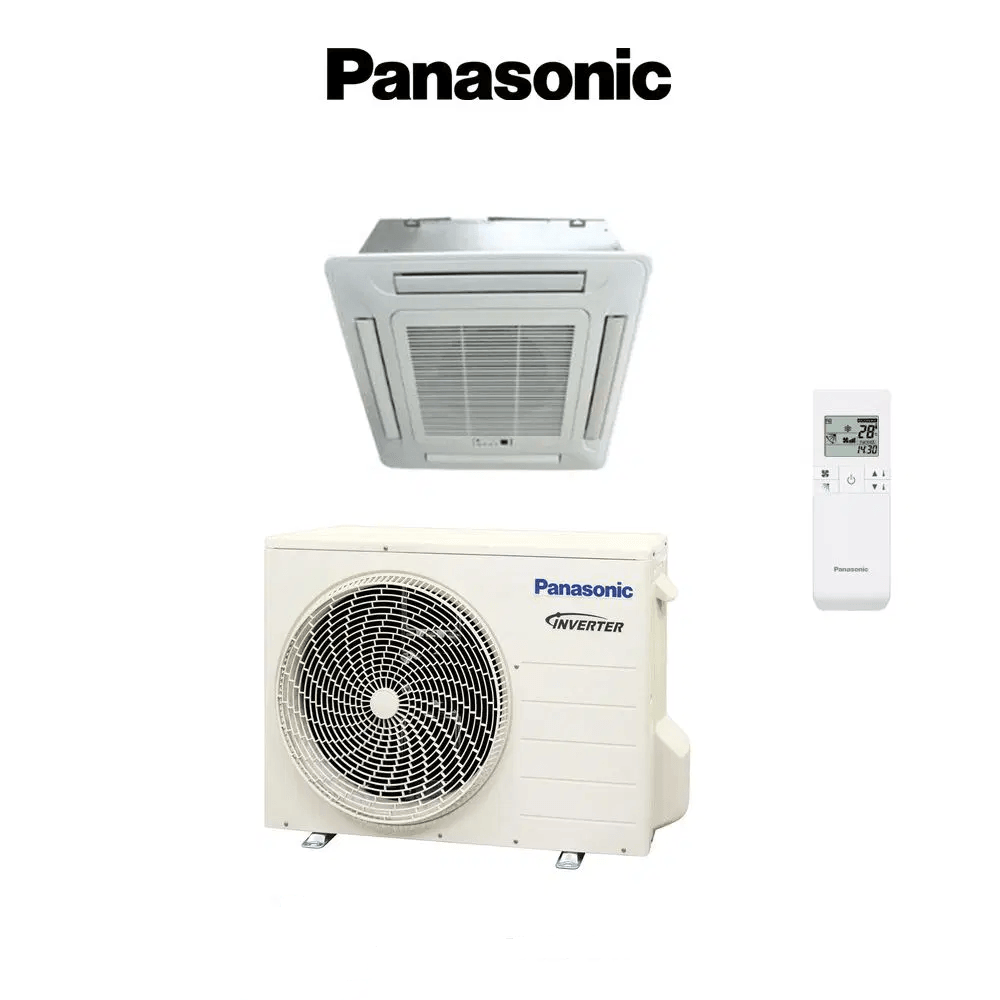

Panasonic CS-Z50UB4RAW / CU-Z50UBRA 5kW R32 Mini Cassette
The Panasonic CS-Z50UB4RAW / CU-Z50UBRA mini cassette provides powerful 5kW cooling and 6kW heating, ensuring comfort in any season. Designed for seamless integration into any space, it features compact indoor dimensions and efficient operation with R32 refrigerant. With an included I/R controller and fascia, this system offers user-friendly control, making it an ideal choice for both residential and commercial settings. Enjoy reliable performance and energy efficiency with Panasonic's trusted technology.
Indoor: CS-Z50UB4RAW
Outdoor: CU-Z50UBRA
Specifications
| Cooling (kW): | 4.80 |
| Heating (kW): | 5.00 |
| Indoor Dimensions H x W x D (mm): | 260 x 575 x 575 |
| Outdoor Dimensions H x W x D (mm): | 695 x 875 x 320 |
| Power Supply (V/Ph/Hz): | 240/1/50 |
| Power Supply Connection: | Outdoor |
| Max Amp: | 10.8 |
| Refrigerant Type: | R32 |
| Pipe Sizes (Liquid/Gas mm): | 6.35/12.70 |
| Min/Max Pipe Run (m): | 3/30 |
| Pre-Charged Run (m): | 7.5 |
| Add Ref Charge (g/m): | 15 |
| Max Elevation OU Higher/Lower than IU (m): | 20 |
| Weight Indoor/Outdoor (kg): | 18/42 |
