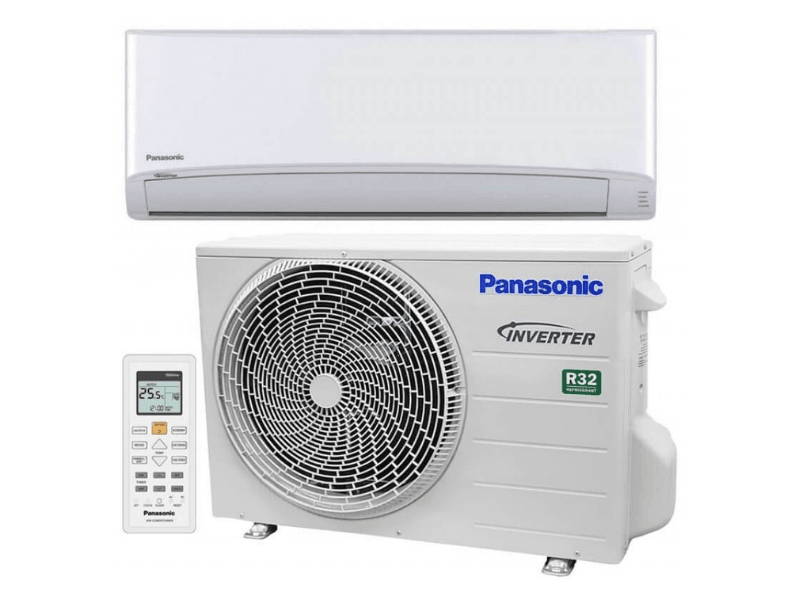

Panasonic 8kW Deluxe Inverter Split Air Conditioner CS-Z80YKR / CU-Z80YKR
Quantity:
Overview
Panasonic C8.0kW H9.0kW Deluxe Inverter Split Air Conditioner CS-Z80YKR / CU-Z80YKR
Panasonic's new Deluxe series, the XKR Series combines slim design and the most cutting-edge technology.
Featuring:
- NanoeX
- Built-in WiFi
- Aerowings
- i-AutoX
Specifications
| MODEL INDOOR UNIT (240V / 1
OUTDOOR UNIT |
Phase / 50Hz) |
CS-Z80YKR / CU-Z80YKR
|
||
| Cooling / Heating ( | min-max) | kW | 8.00 [2.30-9.00]
9.00 [2.20-11.60] |
|
| Capacity ( | min-max) | Btu/h | 27,300 [7,840-30,700]
30,700 [7,500-39,600] |
|
| Air Flow | Indoor | L/s | 367/377 | |
| Dehumid | L/h | 4.7 | ||
| Running Current | A | 11.30/11.40 | ||
| Electrical Data Max Current | A |
15.8 |
||
| Power Input (min-max) | kW | 2.44 (0.46-3.10)
2.46 (0.44-3.60) |
||
| AEER / EER | W/W | 3.26/3.28 | ||
| ACOP / COP | W/W | 3.64/3.66 | ||
| Hot Climate | Cooling Heating | 3.5
2.5 |
||
| Star Rating Average Climate | Cooling Heating | 3.5
3.5 |
||
| Cold Climate | Cooling Heating | 3.5
2.5 |
||
| Hot Climate | TCSPF
HSPF |
5.30/5.95
5.02/5.01 |
||
| TCSPF & HSPF Average Climate | TCSPF
HSPF |
5.03/6.75
4.31/4.60 |
||
| TCSPF | 5.34/7.78 | |||
| Commercial
Cold Climate |
HSPF | 3.78/4.14 | ||
| Net Weight Indoor / Outdoor | 13/60 | |
| Dimensions | Indoor (HxWxD) | 295 x 1040 x 244
795 x 875 x 320 |
| Outdoor (HxWXD) | ||
| Refrigeration Pipe Diameter | Liquid Size | ø 6.35 (1/4)
ø 15.88 (5/8) |
| Gas Size | ||
| Pipe Extension Length | min-max (m) | 3~30 | |
| Maximum Elevation Length | m | 20 | |
| Pipe Length For Additional Gas | m | 10 | |
| Additional Gas Amount | g/m |
25 |
|
| Operating Range (Outdoor) | Cooling Heating | Degree °C | -10 ~ +46
-15 ~ +24 |
