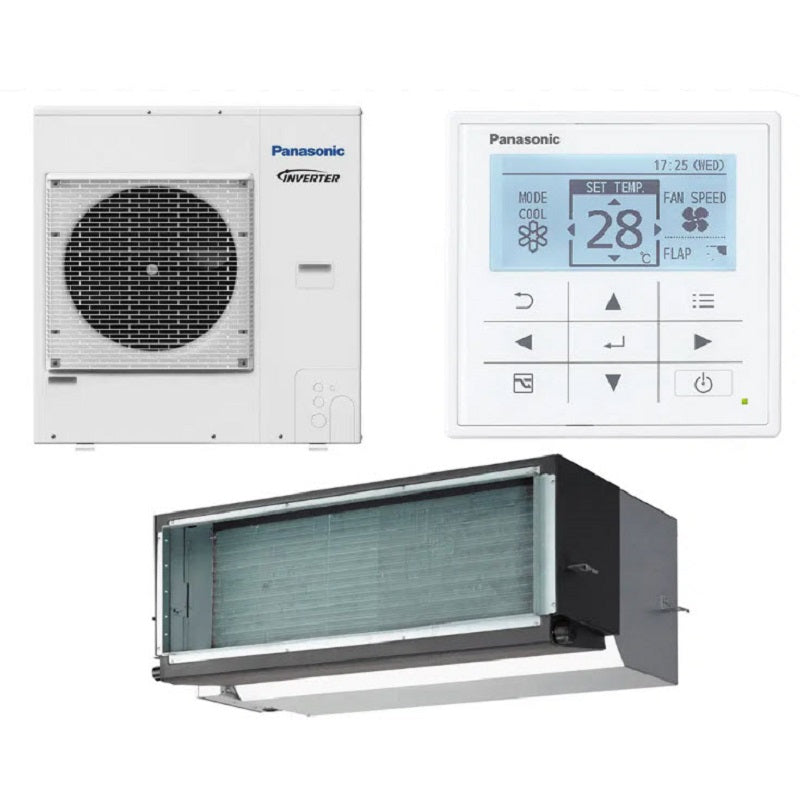

Panasonic 7.1kW High Static Ducted System S-71PE3R / U-71PZH3R5

Panasonic

Panasonic 7.1kW High Static Ducted System S-71PE3R / U-71PZH3R5

$4,059.00
No reviews
No reviews
MODEL: S-71PE3R / U-71PZH3R5
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

Panasonic High Static Ducted System 7.1kW S-71PE3R / U-71PZH3R5 | 1 Phase R32

Includes CZ-RTC5B Wired Controller

7.1 kW Cooling
8.0 kW Heating

High Efficiency | Deluxe Model

Click here to view the brochure of Panasonic Ducted System

Specifications

Cooling (kW): 7.10 (2.2 – 9.0)
Heating (kW): 8.0 (2.0 – 9.0)
Airflow (l/sec) H/M/L: 501/434/367
Indoor Dimensions H x W x D (mm): 360 x 1200 x 700
Outdoor Dimensions H x W x D (mm): 996 x 940 x 340
Power Supply (V/Ph/Hz): 240/1/50
Power Supply Connection: Outdoor
Max Amp Outdoor: 19.6
Refrigerant Type: R32
Pipe Sizes (Liquid/Gas mm): 9.52 / 15.88
Min/Max Pipe Run (m): 5 / 50
Pre-Charged Run (m): 30
Add Refrigerant Charge (g/m): 45
Max Elevation – OU Higher/Lower than IU (m): 15 / 30
Supply Air Connection H x W (mm): 266 x 1024
Return Air Connection H x W (mm): 266 x 1024
Weight Indoor/Outdoor (kg) 36 / 66
