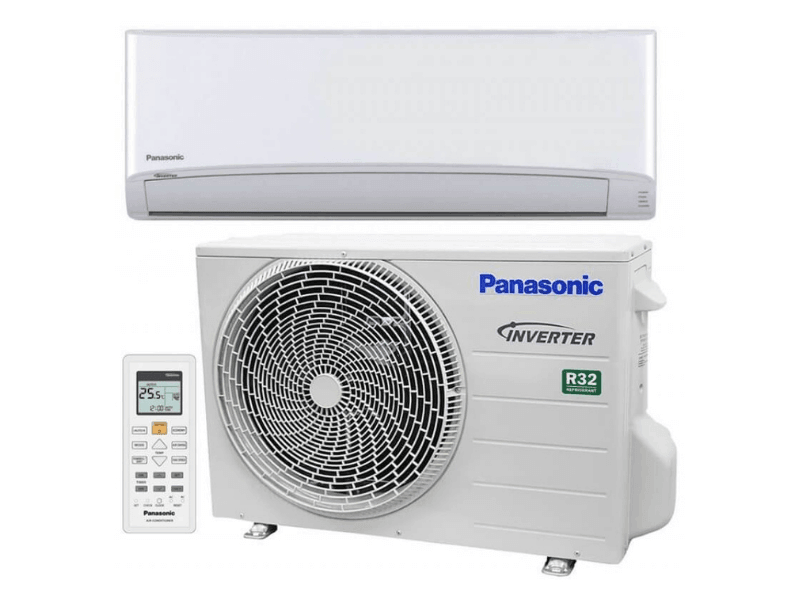

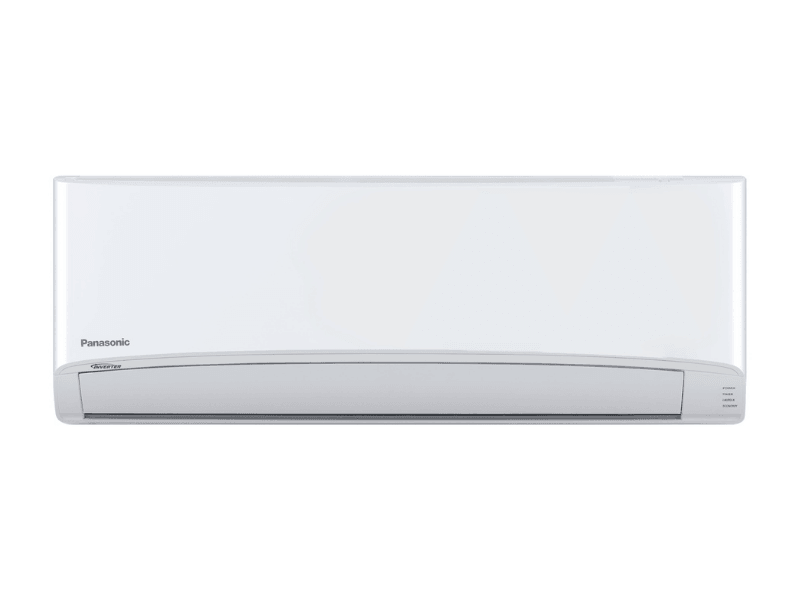

Panasonic 7.1kW AERO Inverter Split Air Conditioner CS/CU-Z71VKR
Panasonic 7.1kW AERO Inverter Split Air Conditioner CS/CU-Z71VKR
Panasonic 7.1kW AERO Inverter Split Air Conditioner CS/CU-Z71VKR

Panasonic

Panasonic 7.1kW Deluxe Inverter Split Air Conditioner CS/CU-Z71XKR

Sale price$2,384.00 Regular price$2,659.00
Save $275.00
No reviews
No reviews
MODEL: CS/CU-Z71XKR
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

Panasonic C7.1kW H8.0kW Deluxe Inverter Split Air Conditioner CS/CU-Z71XKR

Panasonic's new Deluxe series, the XKR Series combines slim design and the most cutting-edge technology.

Featuring:

  • NanoeX
  • Built-in WiFi
  • Aerowings
  • i-AutoX
Built in WiFi

Brochure Panasonic

Specifications

MODEL          INDOOR UNIT (240V / 1



OUTDOOR UNIT





Phase / 50Hz)

CS-Z71XKRW



[CU-Z71XKR]

Cooling / Heating  ( min-max) kW 7.10 [1.70-8.50]



8.00 [1.70-10.60]

Capacity                     ( min-max) Btu/h 24,200 [5,800-29,000]



27,300 [5,800-36,100]

Air Flow                      Indoor L/s 352/367
Dehumid L/h 4.1
Running Current A 8.80/8.90
Electrical Data            Max Current A



14.8

Power Input (min-max) kW 2.06 (0.45-2.90)



2.09 (0.40-3.30)

AEER / EER W/W 3.43/3.45
ACOP / COP W/W 3.81/3.83
Hot Climate Cooling Heating 3.5



2.5

Star Rating                   Average Climate Cooling Heating 3.5



2.5

Cold Climate Cooling Heating 3.5



2.0

Hot Climate TCSPF



HSPF

5.37/6.04



5.15/5.16

TCSPF & HSPF         Average Climate TCSPF



HSPF

5.10/6.83



4.45/4.75

TCSPF 5.40/7.99
Commercial



Cold Climate

HSPF 3.83/4.20
Net Weight                         Indoor / Outdoor 13/45
Dimensions Indoor (HxWxD) 295 x 1040 x 244



795 x 875 x 320

Outdoor (HxWXD)
Refrigeration Pipe Diameter Liquid Size ø 6.35 (1/4)



ø 15.88 (5/8)

Gas Size
Pipe Extension Length min-max (m) 3~30
Maximum Elevation Length m 20
Pipe Length For Additional Gas m 10
Additional Gas Amount g/m



25

Operating Range (Outdoor) Cooling Heating Degree °C -10 ~ +46



-15 ~ +24
