Panasonic

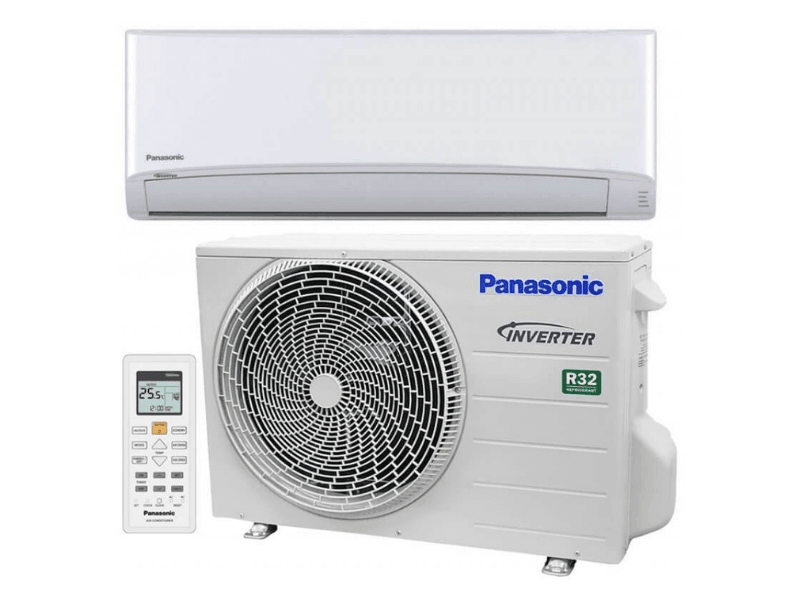

Panasonic 5kW Deluxe Inverter Split Air Conditioner CS-Z50AKRW / CU-Z50AKR
Quantity:
Overview
Panasonic C5.0kW H6.0kW Deluxe Inverter Split Air Conditioner CS-Z50AKRW / CU-Z50AKR
Panasonic's new Deluxe series, the XKR Series combines slim design and the most cutting-edge technology.
Featuring:
- NanoeX
- Built-in WiFi
- Aerowings
- i-AutoX
Specifications
| MODEL INDOOR UNIT (240V / 1
OUTDOOR UNIT |
Phase / 50Hz) |
CS-Z50AKRW / CU-Z50AKR
|
||
| Cooling / Heating ( | min-max) | kW | 5.00 [1.15-6.10]
6.00 [0.98-7.70] |
|
| Capacity ( | min-max) | Btu/h | 17,100 [3,920-20,800]
20,500 [3,340-26,300] |
|
| Air Flow | Indoor | L/s | 208/228 | |
| Dehumid | L/h | 2.8 | ||
| Running Current | A | 6.50/7.30 | ||
| Electrical Data Max Current | A |
11.0 |
||
| Power Input (min-max) | kW | 1.51 (0.24-2.10)
1.72 (0.26-2.50) |
||
| AEER / EER | W/W | 3.29/3.31 | ||
| ACOP / COP | W/W | 3.47/3.49 | ||
| Hot Climate | Cooling Heating | 3.5
3.0 |
||
| Star Rating Average Climate | Cooling Heating | 3.5
2.5 |
||
| Cold Climate | Cooling Heating | 3.5
2.0 |
||
| Hot Climate | TCSPF
HSPF |
5.45/6.29
4.65/4.66 |
||
| TCSPF & HSPF Average Climate | TCSPF
HSPF |
5.17/7.63
4.04/4.30 |
||
| TCSPF | 5.47/9.54 | |||
| Commercial
Cold Climate |
HSPF | 3.51/3.83 | ||
| Net Weight Indoor / Outdoor | 8/35 | |
| Dimensions | Indoor (HxWxD) | 290 x 779 x 209
619 x 824 x 299 |
| Outdoor (HxWXD) | ||
| Refrigeration Pipe Diameter | Liquid Size | ø 6.35 (1/4)
ø 12.7 (1/2) |
| Gas Size | ||
| Pipe Extension Length | min-max (m) | 3~30 | |
| Maximum Elevation Length | m | 15 | |
| Pipe Length For Additional Gas | m | 10 | |
| Additional Gas Amount | g/m |
15 |
|
| Operating Range (Outdoor) | Cooling Heating | Degree °C | -10 ~ +46
-15 ~ +24 |
