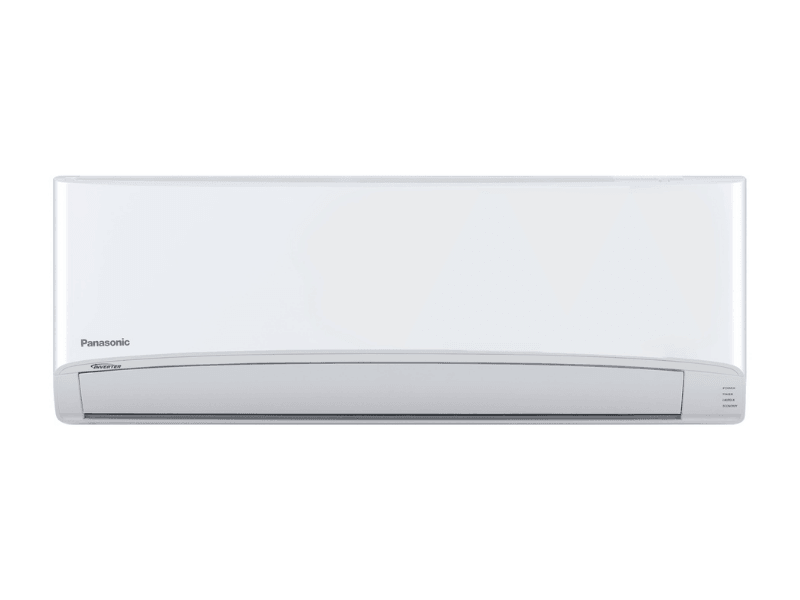

| MODEL INDOOR UNIT (240V / 1
OUTDOOR UNIT |
Phase / 50Hz) |
CS-Z42XKRW
[CU-Z42XKR] |
||
| Cooling / Heating ( | min-max) | kW | 4.20 [1.15-5.10]
5.10 [0.90-6.80] |
|
| Capacity ( | min-max) | Btu/h | 14,300 [3,920-17,400]
17,400 [3,070-23,200] |
|
| Air Flow | Indoor | L/s | 193/202 | |
| Dehumid | L/h | 2.4 | ||
| Running Current | A | 5.00/5.70 | ||
| Electrical Data Max Current | A |
8.9 |
||
| Power Input (min-max) | kW | 1.18 (0.24-1.64)
1.36 (0.20-2.04) |
||
| AEER / EER | W/W | 3.53/3.56 | ||
| ACOP / COP | W/W | 3.73/3.75 | ||
| Hot Climate | Cooling Heating | 3.5
3.0 |
||
| Star Rating Average Climate | Cooling Heating | 3.5
2.5 |
||
| Cold Climate | Cooling Heating | 3.5
2.0 |
||
| Hot Climate | TCSPF
HSPF |
5.46/6.08
4.77/4.78 |
||
| TCSPF & HSPF Average Climate | TCSPF
HSPF |
5.14/6.88
4.16/4.41 |
||
| TCSPF | 5.38/7.85 | |||
| Commercial
Cold Climate |
HSPF | 3.56/3.89 | ||
| Net Weight Indoor / Outdoor | 8/30 | |
| Dimensions | Indoor (HxWxD) | 290 x 779 x 209
619 x 824 x 299 |
| Outdoor (HxWXD) | ||
| Refrigeration Pipe Diameter | Liquid Size | ø 6.35 (1/4)
ø 12.7 (1/2) |
| Gas Size | ||
| Pipe Extension Length | min-max (m) | 3~20 | |
| Maximum Elevation Length | m | 15 | |
| Pipe Length For Additional Gas | m | 7.5 | |
| Additional Gas Amount | g/m |
10 |
|
| Operating Range (Outdoor) | Cooling Heating | Degree °C | -10 ~ +46
-15 ~ +24 |
