Panasonic 3.5kW Deluxe Inverter Split Air Conditioner CS-Z35AKRW / CU-Z35AKR
Quantity:
Overview

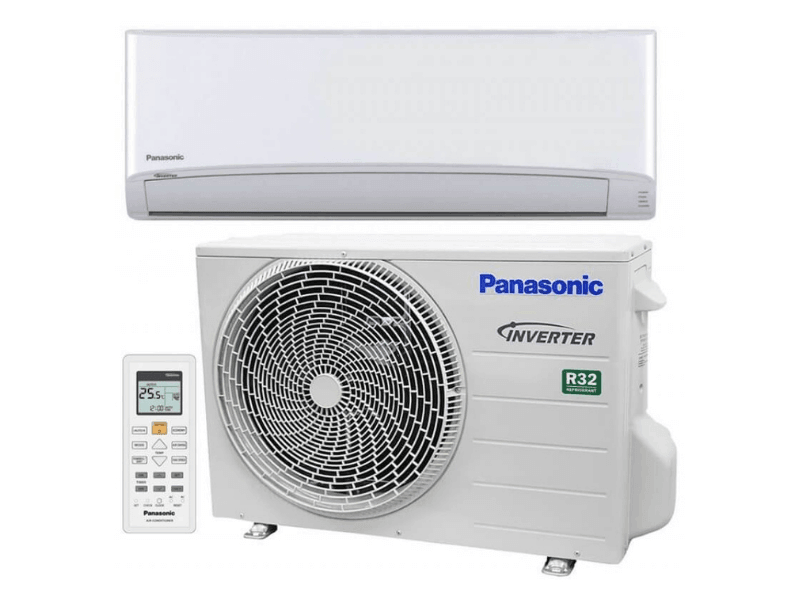

Panasonic 3.5kW H4.3kW Deluxe Inverter Split Air Conditioner CS-Z35AKRW / CU-Z35AKR
Panasonic's new Deluxe series, the XKR Series combines slim design and the most cutting-edge technology.
Featuring:
- NanoeX
- Built-in WiFi
- Aerowings
- i-AutoX
Specifications
| MODEL INDOOR UNIT (240V / 1
OUTDOOR UNIT |
Phase / 50Hz) |
CS-Z35AKRW / CU-Z35AKR
|
||
| Cooling / Heating ( | min-max) | kW | 3.50 [1.00-4.20]
4.00 [0.90-5.70] |
|
| Capacity ( | min-max) | Btu/h | 11,900 [3,410-14,300]
13,600 [3,070-19,400] |
|
| Air Flow | Indoor | L/s | 193/202 | |
| Dehumid | L/h | 2.0 | ||
| Running Current | A | 3.50/3.80 | ||
| Electrical Data Max Current | A |
7.2 |
||
| Power Input (min-max) | kW | 0.80 (0.22-1.29)
0.86 (0.19-1.65) |
||
| AEER / EER | W/W | 4.33/4.38 | ||
| ACOP / COP | W/W | 4.61/4.65 | ||
| Hot Climate | Cooling Heating | 4.5
3.5 |
||
| Star Rating Average Climate | Cooling Heating | 4.0
3.0 |
||
| Cold Climate | Cooling Heating | 4.5
2.5 |
||
| Hot Climate | TCSPF
HSPF |
6.49/7.36
5.41/5.41 |
||
| TCSPF & HSPF Average Climate | TCSPF
HSPF |
5.95/8.05
4.89/5.09 |
||
| TCSPF | 6.18/9.40 | |||
| Commercial
Cold Climate |
HSPF | 4.25/4.55 | ||
| Net Weight Indoor / Outdoor | 8/30 | |
| Dimensions | Indoor (HxWxD) | 290 x 779 x 209
542 x 780 x 289 |
| Outdoor (HxWXD) | ||
| Refrigeration Pipe Diameter | Liquid Size | ø 6.35 (1/4)
ø 9.52 (3/8) |
| Gas Size | ||
| Pipe Extension Length | min-max (m) | 3~20 | |
| Maximum Elevation Length | m | 15 | |
| Pipe Length For Additional Gas | m | 7.5 | |
| Additional Gas Amount | g/m |
10 |
|
| Operating Range (Outdoor) | Cooling Heating | Degree °C | -10 ~ +46
-15 ~ +24 |
