Panasonic 22.4kW 3 Phase Inverter Ducted S-224PE3R5B / U-224PZH2R8


Panasonic 22.4kW 3 Phase Inverter Ducted S-224PE3R5B / U-224PZH2R8

Sale price$8,280.00
No reviews
No reviews
MODEL: S-224PE3R5B / U-224PZH2R8
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Panasonic Premium Ducted System 22.4kW S-224PE3R5B / U-224PZH2R8 | 3 Phase R32

The Panasonic 22.4kW high static and large airflow ducted with exceptional installation flexibility.


  • Outstanding operating range
  • Cold draft reduction technology

22.4kW Cooling – 25kW Heating Capacity

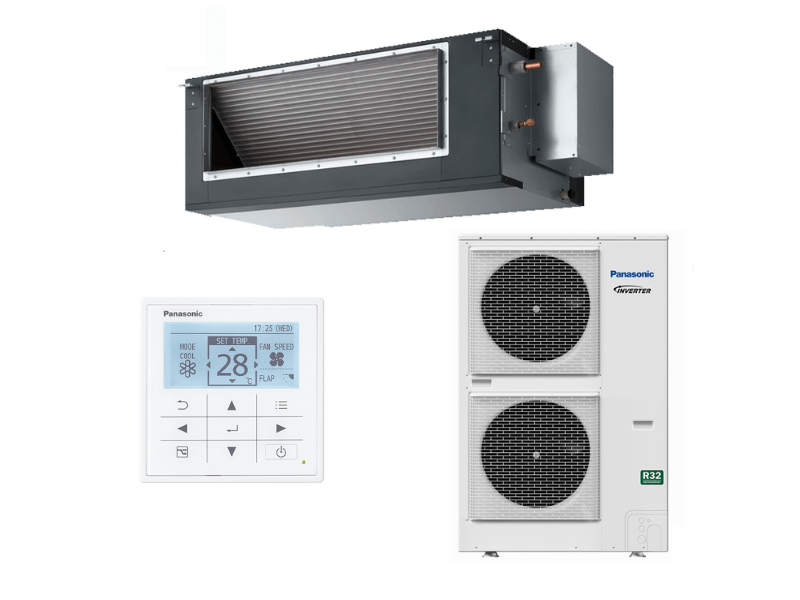

Panasonic High Static Ducted System 22.4kW

Indoor: S-224PE3R5B

Outdoor: U-224PZH2R8  | Three Phase R32

Includes CZ-RTC5B Wired Controller


Cooling kW: 22.4
Heating kW: 25.0
Indoor Dimensions H xW x D (mm): 486 x 1456 x 916
Outdoor Dimensions H xW x D (mm): 1500 x 980 x 370
Power Supply (V/Ph/Hz): 415/3/50
Power Supply Connection: Outdoor
Max Amps Indoor / Outdoor: 6.3 / 16.5
Refrigerant Type: R32
Pipe Sizes Liguid / Gas (mm) Under 30m / Over 30m: (12.70 / 19.05) / (12.70 / 25.4)
Min / Max Pipe Runs (m): 5 / 60
Pre Charged Run (m): 30
Add Ref Charge (g/m): 80
Max Elevation – OU Higher / Lower than IU (m): 30 / 30
Supply Air Connection H x W (mm): 320 x 964
Return Air Connection H x W (mm): 300 x 1070
Weight Indoor/Outdoor (kg) 88 / 128
