Panasonic 20kW 3 Phase Inverter Ducted S-200PE3R5B / U-200PZH2R8


Panasonic 20kW 3 Phase Inverter Ducted S-200PE3R5B / U-200PZH2R8

Sale price$6,814.00
No reviews
No reviews
MODEL: S-200PE3R5B / U-200PZH2R8
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.

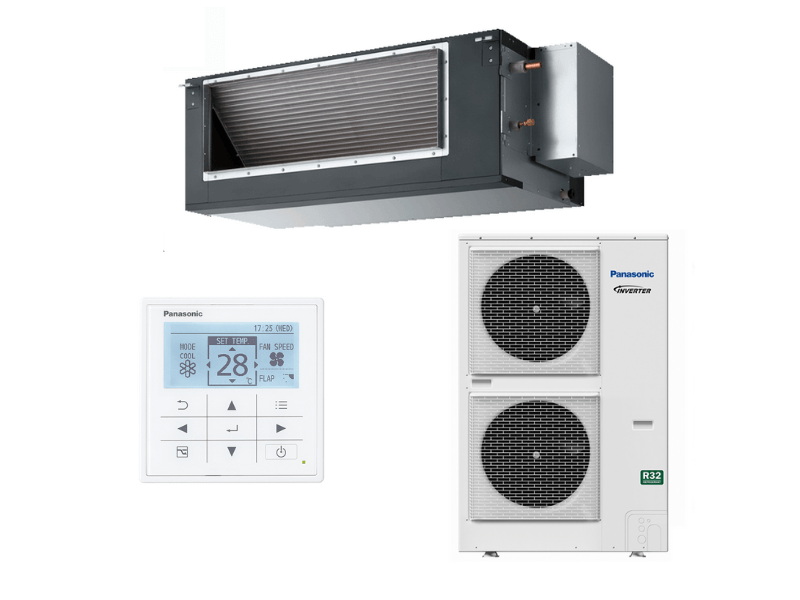

Panasonic Premium Ducted System 20kW S-200PE3R5B / U-200PZH2R8 | 3 Phase R32

The Panasonic 20kW high static and large airflow ducted with exceptional installation flexibility.


  • Outstanding operating range
  • Cold draft reduction technology

20kW Cooling – 22.4kW Heating Capacity


Panasonic High Static Ducted System 20kW

Indoor: S-200PE3R5B

Outdoor: U-200PZH2R8  | Three Phase R32

Includes CZ-RTC5B Wired Controller


Cooling (kW): 20.0 (5.5 – 22.4)
Heating (kW): 22.4 (5.0 – 25.0)
Airflow (l/sec) H/M/L: 1200/1050/883
Indoor Dimensions H x W x D (mm): 486 x 1456 x 916
Outdoor Dimensions H x W x D (mm): 1500 x 980 x 370
Power Supply (V/Ph.Hz): 415/3/50
Power Supply Connection: Outdoor
Max Amps Outdoor Amps Per Phase: 15.0
Refrigeration Type: R32
Pipe Sizes (liquid /Gas mm) Under 30m / Over 30m: (12.07 / 19.05)  (12.07 / 25.4)
Min / Max Pipe Run (m): 5 / 60
Pre Charged Pipe Run (m): 30
Add Ref Charge (g/m): 80
Max Elevation – OU Higher / Lower than IU (m): 30 / 30
Supply Air Connection H x W (mm): 320 x 964
Return Air Connection H x W (mm): 300 x 1070
Weight Indoor / Outdoor (kg): 86 / 128
