Panasonic 2.5kW Deluxe Inverter Split Air Conditioner CS-Z25AKRW / CU-Z25AKR
Quantity:
Overview

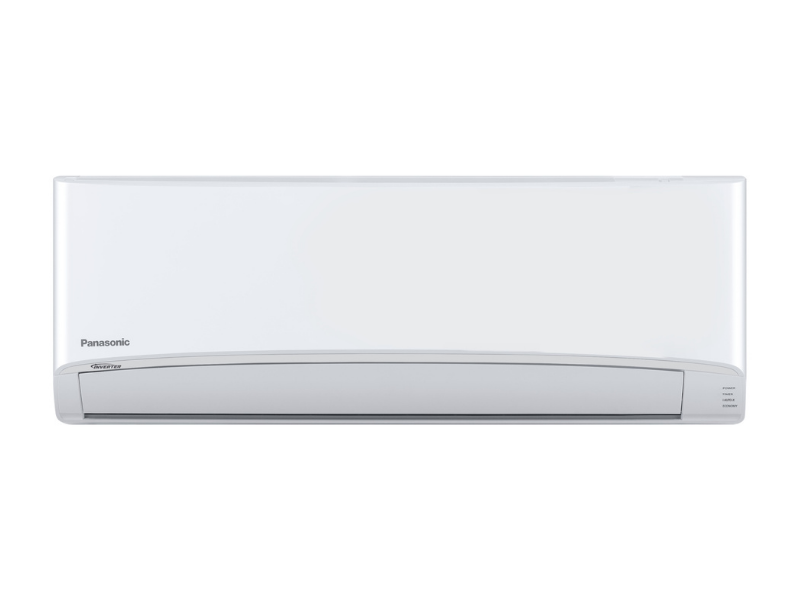

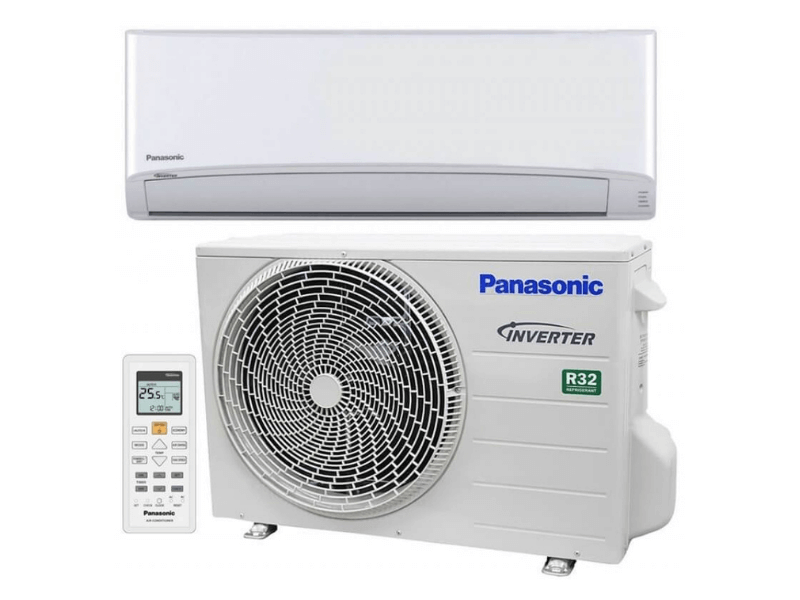

Panasonic C2.5kW H3.2kW Deluxe Inverter Split Air Conditioner CS-Z25AKRW / CU-Z25AKR
Panasonic's new Deluxe series, the XKR Series combines slim design and the most cutting-edge technology.
Featuring:
- NanoeX
- Built-in WiFi
- Aerowings
- i-AutoX
Specifications
| MODEL INDOOR UNIT (240V / 1
OUTDOOR UNIT |
Phase / 50Hz) |
CS-Z25AKRW / CU-Z25AKR
|
||
| Cooling / Heating ( | min-max) | kW | 2.50 [0.95-3.70]
3.00 [0.90-4.40] |
|
| Capacity ( | min-max) | Btu/h | 8,530 [3,240-12,600]
10,900 [3,070-15,000] |
|
| Air Flow | Indoor | L/s | 188/200 | |
| Dehumid | L/h | 1.5 | ||
| Running Current | A | 2.50/3.20 | ||
| Electrical Data Max Current | A |
6.4 |
||
| Power Input (min-max) | kW | 0.57 (0.22-1.20)
0.73 (0.19-1.29) |
||
| AEER / EER | W/W | 4.32/4.39 | ||
| ACOP / COP | W/W | 4.63/4.69 | ||
| Hot Climate | Cooling Heating | 4.0
3.5 |
||
| Star Rating Average Climate | Cooling Heating | 4.0
3.0 |
||
| Cold Climate | Cooling Heating | 4.5
2.5 |
||
| Hot Climate | TCSPF
HSPF |
6.46/7.53
5.12/5.11 |
||
| TCSPF & HSPF Average Climate | TCSPF
HSPF |
5.77/8.13
4.72/4.86 |
||
| TCSPF | 5.94/9.70 | |||
| Commercial
Cold Climate |
HSPF | 4.13/4.37 | ||
| Net Weight Indoor / Outdoor | 8/25 | |
| Dimensions | Indoor (HxWxD) | 290 x 779 x 209
542 x 780 x 289 |
| Outdoor (HxWXD) | ||
| Refrigeration Pipe Diameter | Liquid Size | ø 6.35 (1/4)
ø 9.52 (3/8) |
| Gas Size | ||
| Pipe Extension Length | min-max (m) | 3~20 | |
| Maximum Elevation Length | m | 15 | |
| Pipe Length For Additional Gas | m | 7.5 | |
| Additional Gas Amount | g/m |
10 |
|
| Operating Range (Outdoor) | Cooling Heating | Degree °C | -10 ~ +46
-15 ~ +24 |
