Panasonic 14kW High Static Ducted System 3 Phase S-140PE3R / U-140PZH3R8

Panasonic

Panasonic 14kW High Static Ducted System 3 Phase S-140PE3R / U-140PZH3R8

$6,255.00
No reviews
No reviews
MODEL: S-140PE3R / U-140PZH3R8
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

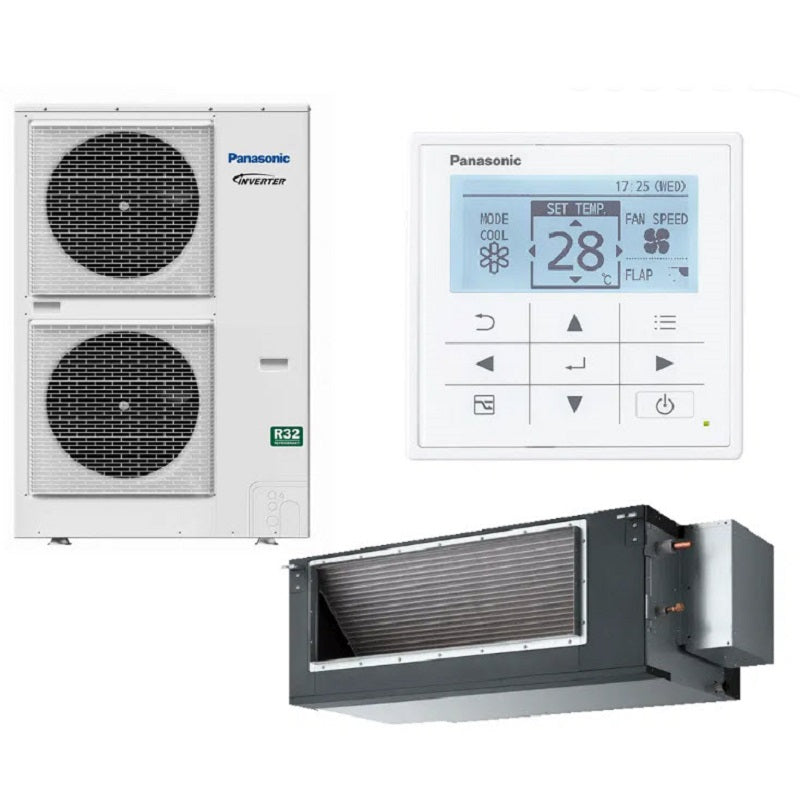

Panasonic High Static Ducted System 14kW S-140PE3R / U-140PZH3R8 | 3 Phase R32

Includes CZ-RTC5B Wired Controller

14 kW Cooling
16 kW Heating

High Efficiency | Deluxe Model

Click here to view the brochure of Panasonic Ducted System

Specifications

Cooling (kW): 14.0 (3.3 – 16.0)
Heating (kW): 16.0 (3.3 – 18.0)
Airflow (l/sec) H/M/L: 1002/835/701
Indoor Dimensions H x W x D (mm): 430 x 1200 x 700
Outdoor Dimensions H x W x D (mm): 1416 x 940 x 340
Power Supply (V/Ph.Hz): 415/3/50
Power Supply Connection: Outdoor
Max Amps Outdoor Amps Per Phase: 11.4
Refrigeration Type: R32
Pipe Sizes (liquid /Gas mm): 9.52 / 15.88
Min / Max Pipe Run (m): 5 / 85
Pre Charged Pipe Run (m): 30
Add Ref Charge (g/m): 45
Max Elevation – OU Higher / Lower than IU (m): 30 / 15
Supply Air Connection H x W (mm): 336 x 1024
Return Air Connection H x W (mm): 336 x 1024
Weight Indoor / Outdoor (kg): 41 / 99
