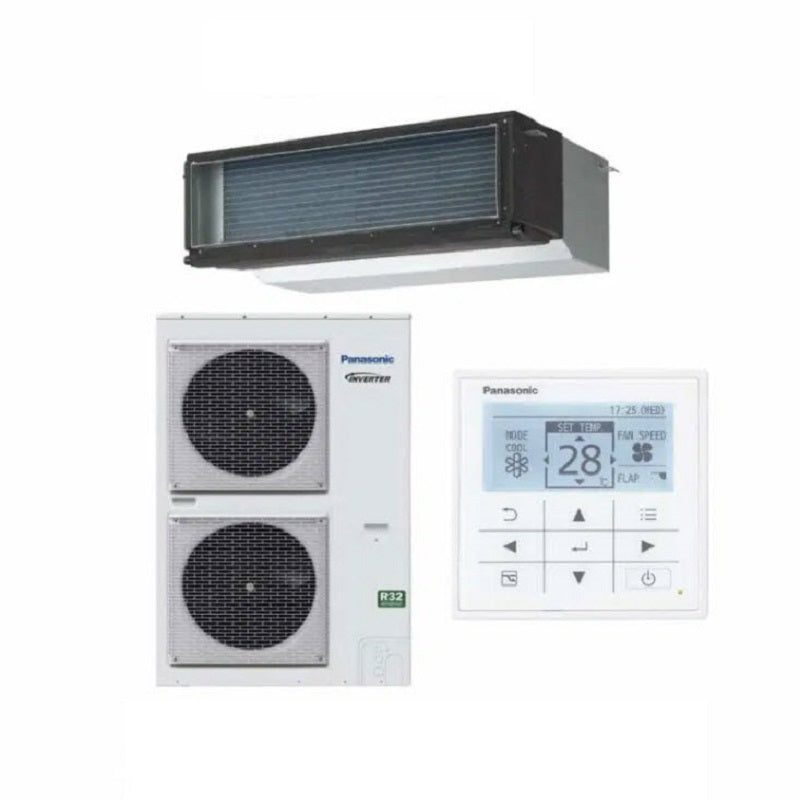

Panasonic 14kW Adaptive Ducted System Deluxe Twin Fan S-1014PF3E / U-140PZH3R5

Panasonic

Panasonic 14kW Adaptive Ducted System Deluxe Twin Fan S-1014PF3E / U-140PZH3R5

Sale price$6,521.00
No reviews
No reviews
MODEL: S-1014PF3E / U-140PZH3R5
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

Panasonic 14kW S-1014PF3E / U-140PZH3R5 Adaptive Ducted System | Deluxe Twin Fan | Single Phase

The Air Conditioner with 24 hour Air Purification – nanoe™X

    14 kW Cooling
    14 kW Heating

    Click here to view the brochure of Panasonic Ducted System

    Specifications

    Cooling (kW): 14.0 (3.3 – 16.0)
    Heating (kW): 16.0 (3.3 – 18.0)
    Airflow (l/sec) H/M/L: 1002/835/701
    Indoor Dimensions H x W x D (mm): 430 x 1200 x 700
    Outdoor Dimensions H x W x D (mm): 1416 x 940 x 340
    Power Supply (V/Ph.Hz): 240/1/50
    Power Supply Connection: Outdoor
    Max Amps Outdoor: 32.7
    Refrigeration Type: R32
    Pipe Sizes (liquid /Gas mm): 9.52 / 15.88
    Min / Max Pipe Run (m): 5 / 85
    Pre Charged Pipe Run (m): 30
    Add Ref Charge (g/m): 45
    Max Elevation – OU Higher / Lower than IU (m): 30 / 15
    Supply Air Connection H x W (mm): 336 x 1024
    Return Air Connection H x W (mm): 336 x 1024
    Weight Indoor / Outdoor (kg): 41 / 99
