Panasonic 10kW Adaptive Ducted System Deluxe Twin Fan | 3 Phase S-1014PF3E / U-100PZH3R8

Panasonic

Panasonic 10kW Adaptive Ducted System Deluxe Twin Fan | 3 Phase S-1014PF3E / U-100PZH3R8

$5,189.00
No reviews
No reviews
MODEL: S-1014PF3E / U-100PZH3R8
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

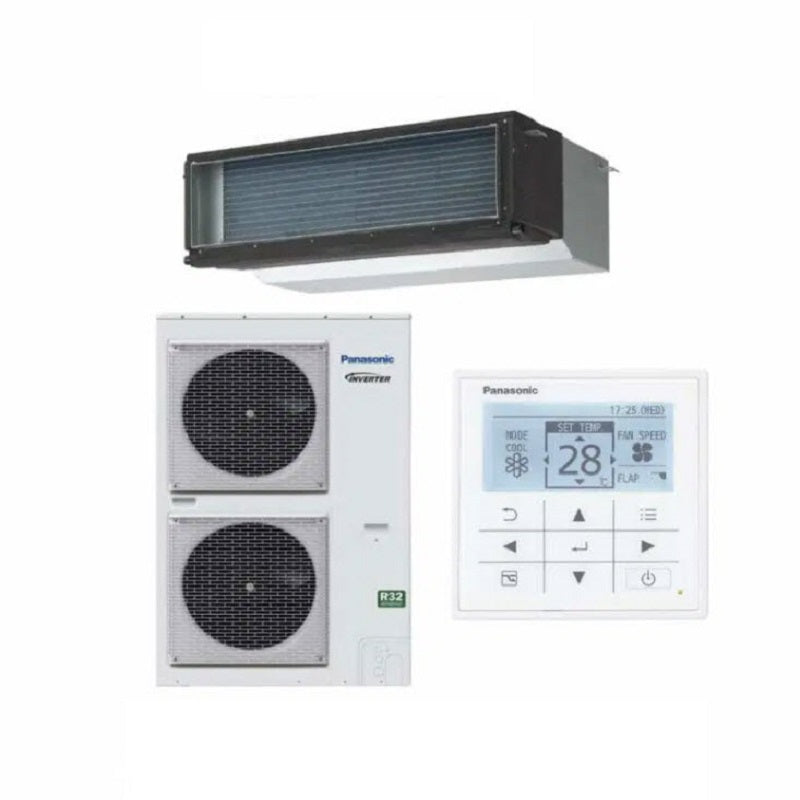

Panasonic 10kW S-1014PF3E / U-100PZH3R8 Adaptive Ducted System | Deluxe Twin Fan | Three Phase

The Air Conditioner with 24 hour Air Purification – nanoe™X

10 kW Cooling
10 kW Heating


Click here to view the brochure of Panasonic Ducted System

Specifications

Cooling (kW): 10.0 (3.1 – 12.5)
Heating (kW): 11.2 (3.1 – 14.0)
Airflow (l/sec) H/M/L: 668/584/484
Indoor Dimensions H x W x D (mm): 360 x 1200 x 700
Outdoor Dimensions H x W x D (mm): 1416 x 940 x 340
Power Supply (V/Ph.Hz): 415/3/50
Power Supply Connection: Outdoor
Max Amps Outdoor Amps Per Phase: 9.7
Refrigeration Type: R32
Pipe Sizes (liquid /Gas mm): 9.52 / 15.88
Min / Max Pipe Run (m): 5 / 85
Pre Charged Pipe Run (m): 30
Add Ref Charge (g/m): 45
Max Elevation – OU Higher / Lower than IU (m): 30 / 15
Supply Air Connection H x W (mm): 266 x 1024
Return Air Connection H x W (mm): 266 x 1024
Weight Indoor / Outdoor (kg): 37 / 99
