Mitsubishi Heavy Industries
Mitsubishi Compact Ceiling Cassette FDTC60ZSXAWVH 6.0kW Four Way | RC-EXZ3A Wired Controller Included
Overview

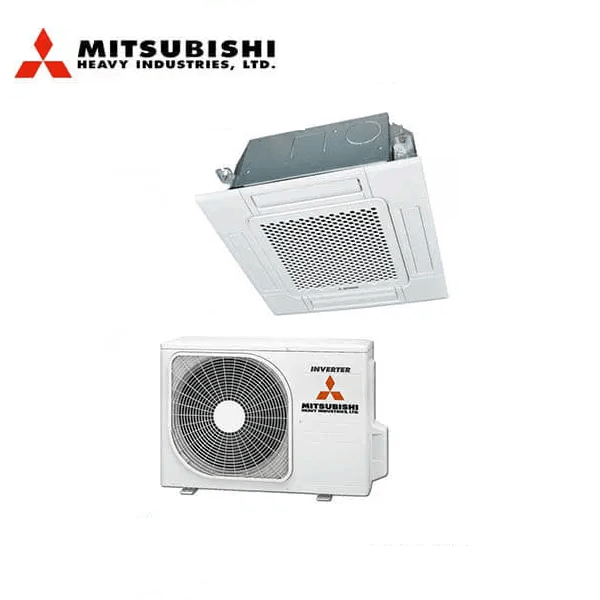

Mitsubishi Compact Ceiling Cassette FDTC60ZSXAWVH 6.0kW Four Way
The Mitsubishi Compact Ceiling Cassette FDTC60ZSXAWVH offers an exceptional blend of efficiency and discreet design. Perfect for both residential and commercial spaces, this 6.0kW four-way cassette system ensures optimal air distribution. With the RC-EXZ3A wired controller included, you can enjoy precise climate control at your fingertips. This robust system features R32 refrigerant for eco-friendly operation, making it a smart choice for those seeking performance and sustainability.
Indoor Unit: FDTC60VH
Outdoor Unit: SRC60ZSXA-W
Panel Options: Honeycomb or Grid
Specifications
Specification | Detail |
---|---|
System | FDTC60ZSXAWVH |
Indoor Unit | FDTC60VH |
Panel | TC-PSAE-5AW-E (Honeycomb) / TC-PSAGE-5AW-E (Grid) |
Outdoor Unit | SRC60ZSXA-W |
Controller | RC-EXZ3A included |
Rated Capacity Cool/Heat | 5.6/6.7 kW |
Weight | Indoor: 14 kg / Panel: 2.5 kg / Outdoor: 45 kg |
External Dimensions (HxWxD) | Indoor: 248x570x570 mm / Panel: 10x620x620 mm / Outdoor: 640x800(+71)x290 mm |
Refrigerant Piping | Liquid Line: Ø6.35 mm / Gas Line: Ø12.7 mm |
Refrigerant | R32 |
Precharged | 15 m |
Quantity | 1.3 kg |
Max Pipe Length | 30 m |
