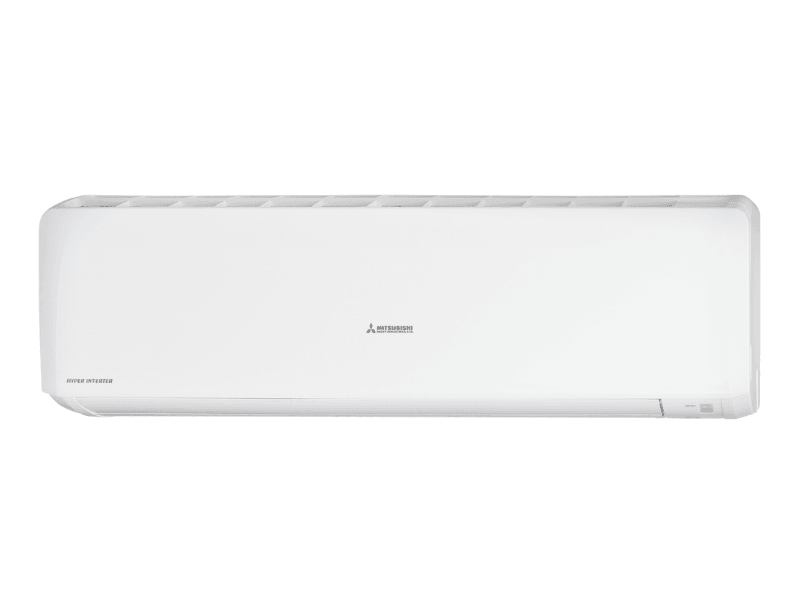

Mitsubishi Heavy Industries Bronte 8kW Split System DXK28ZRA-WF1 | Built-in Wi-Fi
Mitsubishi Heavy Industries Bronte 8.0kW Inverter Split System SRK80ZRA-W

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Bronte 8kW Split System DXK28ZRA-WF1 | Built-in Wi-Fi

$2,819.00 $2,980.00
Save $161.00
No reviews
No reviews
MODEL: DXK28ZRA-WF1 / DXC28ZRA-W
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

Mitsubishi Heavy Industries Bronte C8.0kW H9.0kW Reverse Cycle Inverter Split System DXK28ZRA-WF1 / DXC28ZRA-W

Our new WF1 Range of Bronte® Split Systems provides exciting enhancements to elevate your comfort experience. You can browse our products ending in codes ending in WF1, or simply consult your local trusted MHIAA installer to discover if this system is the perfect fit for you.

  • Built-In Wi-Fi: Connect you unit to your home network for effortless comfort at your fingertips.
  • New NOVAShield™ PM2.5 Filter: Captures fine particulate matter such as smoke, dust, pollen and other pollutants.*
  • GEMS Cooling Star Rating Improvements: Optimise your energy efficiency with several GEMS star cooling rating improvements across select zones.
  • Voice Control Compatibility: Easily control your Avanti series® via your Google or Amazon smart home device (sold separately).
8kW Bronte Mitsubishi heavy industries



Specifications

Indoor DXK28ZRA-WF1
Outdoor DXC28ZRA-W
Power source (Outdoor Unit) 1 Phase 240V 50Hz
*Operation data
Nominal Capacity (Range)
 Cooling T1
kW
 8.0 (2.3~9.5)
Heating H1 9.0 (2.1~11.2)
Heating H2 8.2
Power consumption
 Cooling T1
kW
 2.22 (0.48~3.1)
Heating H1 2.40 (0.40~3.40)
Maximum power consumption kW 3.65
Running current
 Cooling T1
A
 9.4
Heating H1 10.2
Inrush current, maximum current A 10.2, 17.0
EER Cooling T1

3.6
COP Heating H1 3.75
Sound power level (JIS C9612) Outdoor dB(A) 68
Sound pressure level (JIS C9612)
 Indoor
dB(A)
 46-43-38-25
Outdoor 56
Energy label (GEMS 2019)
HOT
 Cooling

3.5
Heating 3
AVERAGE
 Cooling 3.5
Heating 2.5
COLD
 Cooling 3.5
Heating 2
External dimensions (HxWxD)
 Indoor
mm
 339x1197x262
Outdoor 750×880(+88)x340
Net weight
 Indoor
kg
 15.5
Outdoor 58
Airflow
 Indoor (Cooling)
l/s
 383-345-300-182
Indoor (Heating) 450-363-315-234
Refrigerant (Type, amount, pre-charge length)
 Quantity kg (R32) 1.6
Pre charged to pipe length m 15
Installation data
Refrigerant piping
 Liquid line
mm
 Ø6.35
Gas line Ø15.88
Connection method Flare connection
Maximum pipe (one way) length m 30
Max vertical height diff. between O.U. and I.U. m 20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. )
Standard accessories Allergen clear filter , NOVAShield Nano filter (PM2.5), Built-in Wi-Fi
Optional parts Interface kit (SC-BIKN2-E)
Demand response (AS4755) Yes
* Operation data are conducted in accordance with AS/NZS 3823 standard. For testing conditions please refer to Page xxx
