Mitsubishi Heavy Industries Bronte 7.1kW Split System DXK24ZRA-WF1 | Built-in Wi-Fi
Quantity:
Overview

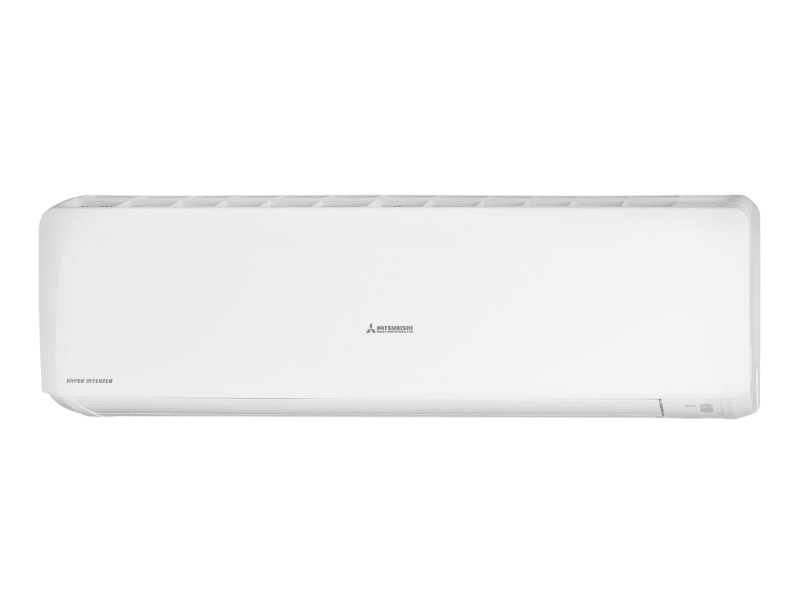

Mitsubishi Heavy Industries Bronte C7.1kW H8.0kW Reverse Cycle Inverter Split System DXK24ZRA-WF1 / DXC24ZRA-W
Our new WF1 Range of Bronte® Split Systems provides exciting enhancements to elevate your comfort experience. You can browse our products ending in codes ending in WF1, or simply consult your local trusted MHIAA installer to discover if this system is the perfect fit for you.
- Built-In Wi-Fi: Connect you unit to your home network for effortless comfort at your fingertips.
- New NOVAShield™ PM2.5 Filter: Captures fine particulate matter such as smoke, dust, pollen and other pollutants.*
- GEMS Cooling Star Rating Improvements: Optimise your energy efficiency with several GEMS star cooling rating improvements across select zones.
- Voice Control Compatibility: Easily control your Avanti series® via your Google or Amazon smart home device (sold separately).
Specifications
| Indoor | DXK24ZRA-WF1 | ||||
| Outdoor | DXC24ZRA-W | ||||
| Power source (Outdoor Unit) | 1 Phase 240V 50Hz | ||||
|
*Operation data
|
Nominal Capacity (Range)
|
Cooling T1 |
kW
|
7.1 (2.3~8.3) | |
| Heating H1 | 8.0 (2.0~10.9) | ||||
| Heating H2 | 8.1 | ||||
|
Power consumption
|
Cooling T1 |
kW
|
1.84 (0.48~2.4) | ||
| Heating H1 | 2.02 (0.4~3.4) | ||||
| Maximum power consumption | kW | 3.65 | |||
|
Running current
|
Cooling T1 |
A
|
7.8 | ||
| Heating H1 | 8.6 | ||||
| Inrush current, maximum current | A | 8.6, 17.0 | |||
| EER | Cooling T1 |
|
3.86 | ||
| COP | Heating H1 | 3.96 | |||
| Sound power level (JIS C9612) | Outdoor | dB(A) | 65 | ||
|
Sound pressure level (JIS C9612)
|
Indoor |
dB(A)
|
43-40-36-24 | ||
| Outdoor | 53 | ||||
|
Energy label (GEMS 2019)
|
HOT
|
Cooling |
|
4 | |
| Heating | 3 | ||||
|
AVERAGE
|
Cooling | 3.5 | |||
| Heating | 2.5 | ||||
|
COLD
|
Cooling | 3.5 | |||
| Heating | 2 | ||||
|
External dimensions (HxWxD)
|
Indoor |
mm
|
339x1197x262 | ||
| Outdoor | 750×880(+88)x340 | ||||
|
Net weight
|
Indoor |
kg
|
15.5 | ||
| Outdoor | 58 | ||||
|
Airflow
|
Indoor (Cooling) |
l/s
|
342-310-270-174 | ||
| Indoor (Heating) | 425-330-288-222 | ||||
|
Refrigerant (Type, amount, pre-charge length)
|
Quantity | kg | (R32) 1.6 | ||
| Pre charged to pipe length | m | 15 | |||
|
Installation data
|
Refrigerant piping
|
Liquid line |
mm
|
Ø6.35 | |
| Gas line | Ø15.88 | ||||
| Connection method | Flare connection | ||||
| Maximum pipe (one way) length | m | 30 | |||
| Max vertical height diff. between O.U. and I.U. | m | 20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. ) | |||
| Standard accessories | Allergen clear filter , NOVAShield Nano filter (PM2.5), Built-in Wi-Fi | ||||
| Optional parts | Interface kit (SC-BIKN2-E) | ||||
| Demand response (AS4755) | Yes | ||||
| * Operation data are conducted in accordance with AS/NZS 3823 standard. For testing conditions please refer to Page xxx | |||||
