| Indoor | SRK60ZSXA-WF | ||||
| Outdoor | SRC60ZSXA-W | ||||
| Power source (Outdoor Unit) | 1 Phase 240V 50Hz | ||||
|
*Operation data
|
Nominal Capacity (Range)
|
Cooling T1 |
kW
|
6.1 (1.0~6.9) | |
| Heating H1 | 6.8 (0.8~8.8) | ||||
| Heating H2 | 6.8 | ||||
|
Power consumption
|
Cooling T1 |
kW
|
1.71 (0.19~2.50) | ||
| Heating H1 | 1.65 (0.20~2.86) | ||||
| Maximum power consumption | kW | 2.9 | |||
|
Running current
|
Cooling T1 |
A
|
7.2 | ||
| Heating H1 | 6.9 | ||||
| Inrush current, maximum current | A | 5.0, 15.0 | |||
| EER | Cooling T1 |
|
3.57 | ||
| COP | Heating H1 | 4.12 | |||
| Sound power level (JIS C9612) | Outdoor | dB(A) | 65 | ||
|
Sound pressure level (JIS C9612)
|
Indoor |
dB(A)
|
48-41-33-22 | ||
| Outdoor | 52 | ||||
|
Energy label (GEMS 2019)
|
HOT
|
Cooling |
|
3.5 | |
| Heating | 3.5 | ||||
|
AVERAGE
|
Cooling | 3 | |||
| Heating | 3 | ||||
|
COLD
|
Cooling | 3.5 | |||
| Heating | 2.5 | ||||
|
External dimensions (HxWxD)
|
Indoor |
mm
|
305X920X220 | ||
| Outdoor | 640X800(+71)X290 | ||||
|
Net weight
|
Indoor |
kg
|
13 | ||
| Outdoor | 45 | ||||
|
Airflow
|
Indoor (Cooling) |
l/s
|
272-223-148-90 | ||
| Indoor (Heating) | 297-228-182-103 | ||||
|
Refrigerant (Type, amount, pre-charge length)
|
Quantity | kg | (R32) 1.3 | ||
| Pre charged to pipe length | m | 15 | |||
|
Installation data
|
Refrigerant piping
|
Liquid line |
mm
|
Ø6.35 | |
| Gas line | Ø12.7 | ||||
| Connection method | Flare connection | ||||
| Maximum pipe (one way) length | m | 30 | |||
| Max vertical height diff. between O.U. and I.U. | m | 20 ( O.U. above I.U. ) / 20 ( O.U. below I.U. ) | |||
| Standard accessories | Allergen Clear & Photocatalytic Washable Deodorizing Filter, Built-in Wi-Fi | ||||
| Optional parts | Interface kit (SC-BIKN2-E) | ||||
| Demand response (AS4755) | Yes | ||||
Mitsubishi Heavy Industries

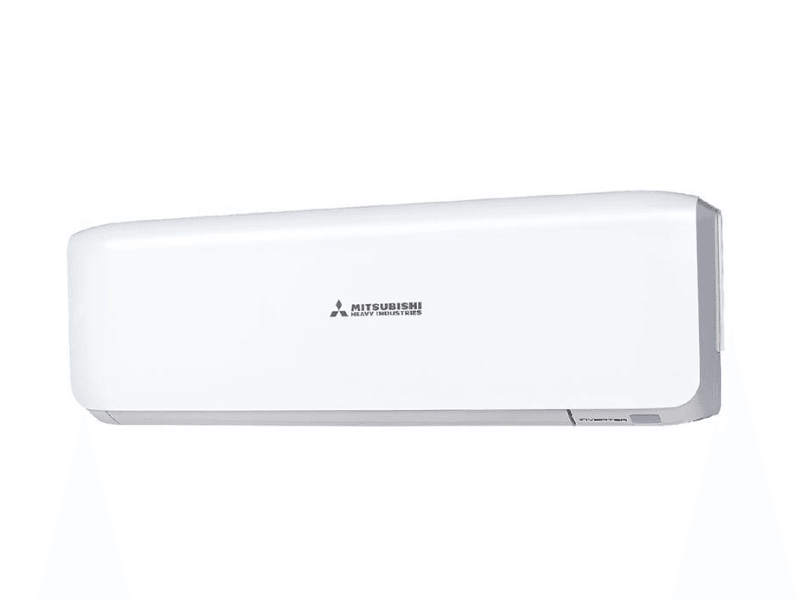

Mitsubishi Heavy Industries Avanti Plus 6kW Split System SRK60ZSXA-WF / SRC60ZSXA-W | Built-in Wi-Fi
Quantity:
Overview
Mitsubishi Heavy Industries Avanti Plus C6.1kW H6.8kW Reverse Cycle Inverter Split System SRK60ZSXA-W / SRC60ZSXA-W | Built-in Wi-Fi
With an industry leading high energy ratings the Avanti PLUS® is our Platinum Series. Whisper quiet and incorporating a range of energy saving and convenient features and functions such as motion sensor, eco-operation and adjustable LED display the 6kW Avanti PLUS® split system also boasts an industry leading 17m long reach airflow making it perfect for medium to large spaces.
Key features
- Long reach 17m airflow (in cooling mode)
- Built-in Wi-Fi and voice control compatibility
- Industry leading energy efficiency
- Whisper quiet operation
- Clean Air Technology to capture smoke particles and deliver allergen and odour free air
- Energy saving motion sensor and eco operation
Avanti Plus Series Brochure.pdf
Features
| Fuzzy Auto Mode | Eco Operation |
| Jet Air Technology | High Power Operation |
| 3D Auto | Auto Louvre Mode |
| Memory Louvre | Up/Down Louvre Swing |
| Right/Left Louvre Swing | Positioning of Installation |
| Allergen Clear Operation | Self-Clean Operation |
| Photocatalytic Washable Deodorising Filter | Allergen Filter |
| Removable Cover Panel | Dry Operation |
| Silent Operation | Night Setback |
| Comfort Start-up | Weekly Timer |
| Sleep Timer | On/Off Timer |
| Preset Operation | Child Lock |
| LED Brightness Adjustment | Auto Operation |
| Microcomputer -Operated Defrosting | Self- Diagnostic Function |
| Back-up Switch | Auto Restart Function |
