| Indoor | SRK25ZSXA-WF | ||||
| Outdoor | SRC25ZSXA-W | ||||
| Power source (Outdoor Unit) | 1 Phase 240V 50Hz | ||||
|
*Operation data
|
Nominal Capacity (Range)
|
Cooling T1 |
kW
|
2.5 (0.9~3.8) | |
| Heating H1 | 3.2 (0.8~6.0) | ||||
| Heating H2 | 4.2 | ||||
|
Power consumption
|
Cooling T1 |
kW
|
0.44 (0.16~0.91) | ||
| Heating H1 | 0.59 (0.14~1.54) | ||||
| Maximum power consumption | kW | 1.92 | |||
|
Running current
|
Cooling T1 |
A
|
2.3 | ||
| Heating H1 | 2.9 | ||||
| Inrush current, maximum current | A | 3.0, 9.0 | |||
| EER | Cooling T1 |
|
5.68 | ||
| COP | Heating H1 | 5.42 | |||
| Sound power level (JIS C9612) | Outdoor | dB(A) | 57 | ||
|
Sound pressure level (JIS C9612)
|
Indoor |
dB(A)
|
39-33-25-19 | ||
| Outdoor | 44 | ||||
|
Energy label (GEMS 2019)
|
HOT
|
Cooling |
|
5 | |
| Heating | 4.5 | ||||
|
AVERAGE
|
Cooling | 4.5 | |||
| Heating | 4 | ||||
|
COLD
|
Cooling | 4.5 | |||
| Heating | 3.5 | ||||
|
External dimensions (HxWxD)
|
Indoor |
mm
|
305x920x220 | ||
| Outdoor | 640×800(+71)x290 | ||||
|
Net weight
|
Indoor |
kg
|
13 | ||
| Outdoor | 43 | ||||
|
Airflow
|
Indoor (Cooling) |
l/s
|
203-167-112-83 | ||
| Indoor (Heating) | 213-183-130-90 | ||||
|
Refrigerant (Type, amount, pre-charge length)
|
Quantity | kg | (R32) 1.2 | ||
| Pre charged to pipe length | m | 15 | |||
|
Installation data
|
Refrigerant piping
|
Liquid line |
mm
|
Ø6.35 | |
| Gas line | Ø9.52 | ||||
| Connection method | Flare connection | ||||
| Maximum pipe (one way) length | m | 25 | |||
| Max vertical height diff. between O.U. and I.U. | m | 15 ( O.U. above I.U. ) / 15 ( O.U. below I.U. ) | |||
| Standard accessories | Allergen Clear & Photocatalytic Washable Deodorizing Filter, Built-in Wi-Fi | ||||
| Optional parts | Interface kit (SC-BIKN2-E) | ||||
| Demand response (AS4755) | Yes | ||||
Mitsubishi Heavy Industries
Mitsubishi Heavy Industries Avanti Plus 2.5kW Split System SRK25ZSXA-WF / SRC25ZSXA-W | Built-in Wi-Fi
Quantity:
Overview

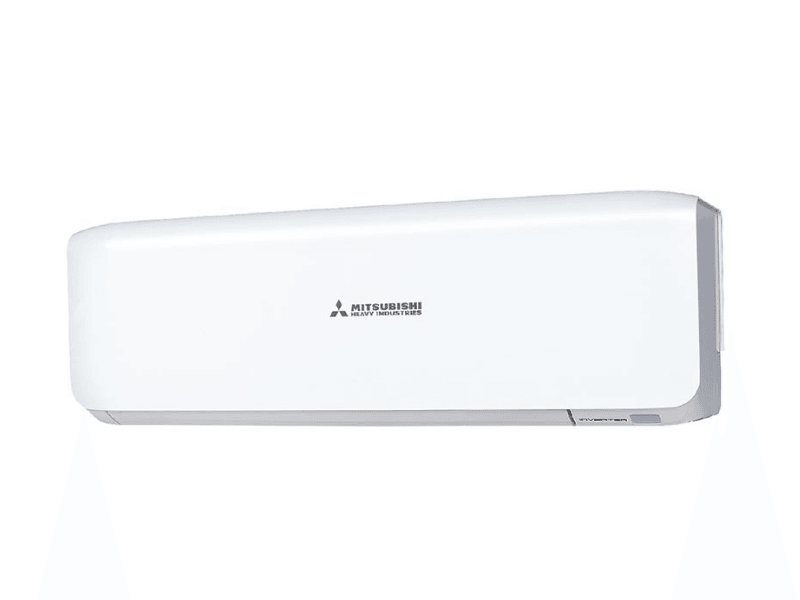

Mitsubishi Heavy Industries Avanti Plus C2.5kW H3.2kW Reverse Cycle Inverter Split System SRK25ZSXA-WF / SRC25ZSXA-W | Built-in Wi-Fi
With an industry leading 6 star energy rating the 2.5kW Avanti PLUS® is one of the most energy efficient split systems on the market. Whisper quiet and incorporating a range of energy saving and convenient features and functions such as motion sensor, eco-operation and adjustable LED display the 2.5kW Avanti PLUS® split system is perfect for smaller spaces.
Key features
- Highly efficient 6 star energy rating
- Built-in Wi-Fi and voice control compatibility
- Award winning, modern design
- Energy saving motion sensor and eco operation as standard
- Allergen clear system to eliminate airborne allergens and deliver clean air throughout your home
- Improved auto mode allowing for precise temperature control
Avanti Plus Series Brochure.pdf
Features
| Fuzzy Auto Mode | Eco Operation |
| Jet Air Technology | High Power Operation |
| 3D Auto | Auto Louvre Mode |
| Memory Louvre | Up/Down Louvre Swing |
| Right/Left Louvre Swing | Positioning of Installation |
| Allergen Clear Operation | Self-Clean Operation |
| Photocatalytic Washable Deodorising Filter | Allergen Filter |
| Removable Cover Panel | Dry Operation |
| Silent Operation | Night Setback |
| Comfort Start-up | Weekly Timer |
| Sleep Timer | On/Off Timer |
| Preset Operation | Child Lock |
| LED Brightness Adjustment | Auto Operation |
| Microcomputer -Operated Defrosting | Self- Diagnostic Function |
| Back-up Switch | Auto Restart Function |
