MITSUBISHI Ceiling Cassette FDT125AVNXWVH 1 Phase | RC-EXZ3A Wired Controller Included
Overview
MITSUBISHI Ceiling Cassette FDT125AVNXWVH with RC-EXZ3A Wired Controller
Introducing the Mitsubishi Ceiling Cassette FDT125AVNXWVH, a top-tier cassette system designed to deliver powerful climate control. With a capacity of 12.5kW for cooling and 14.0kW for heating, this system ensures optimal comfort in any setting. Equipped with a wired RC-EXZ3A controller and available in both Fine Snow and Shadow Black panel finishes, it offers both style and functionality. Built sturdily for Australian conditions, it provides seamless integration and reliable performance year-round.
Indoor: FDT125VH
Outdoor: FDCA125VNX-W

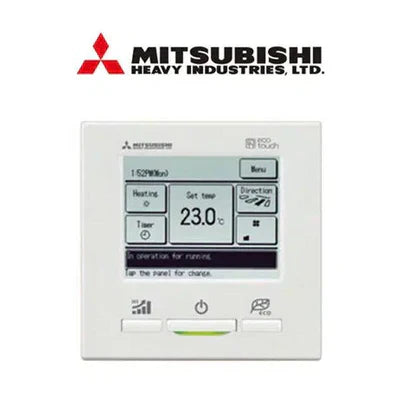

Controller: RC-EXZ3A included
Specifications
Specification | Detail |
---|---|
System | FDT125AVNXWVH |
Indoor Unit | FDT125VH |
Panel | T-PSAE-5BW-E (Fine Snow) / T-PSAE-5BB-E (Shadow Black) |
Outdoor Unit | FDCA125VNX-W |
Controller | RC-EXZ3A included |
Rated Capacity Cool/Heat | 12.5/14.0 kW |
Weight | Indoor: 25 kg / Panel: 5 kg / Outdoor: 97 kg |
External Dimensions (HxWxD) | Indoor: 298x840x840 mm / Panel: 35x950x950 mm / Outdoor: 1300x970x370 mm |
Refrigerant Piping | Liquid Line: Ø9.52 mm / Gas Line: Ø15.88 mm |
Refrigerant | R32 |
Precharged | 30 m |
Quantity | 4 kg |
Max Pipe Length | 100 m |
