Fujitsu 15kW Inverter Ducted Air Conditioner System 3 Phase SET-ARTG60LHTA

Fujitsu

Fujitsu 15kW Inverter Ducted Air Conditioner System 3 Phase SET-ARTG60LHTA

$6,018.00
No reviews
No reviews
MODEL: ARTG60LHTA / AOTG60LATT
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

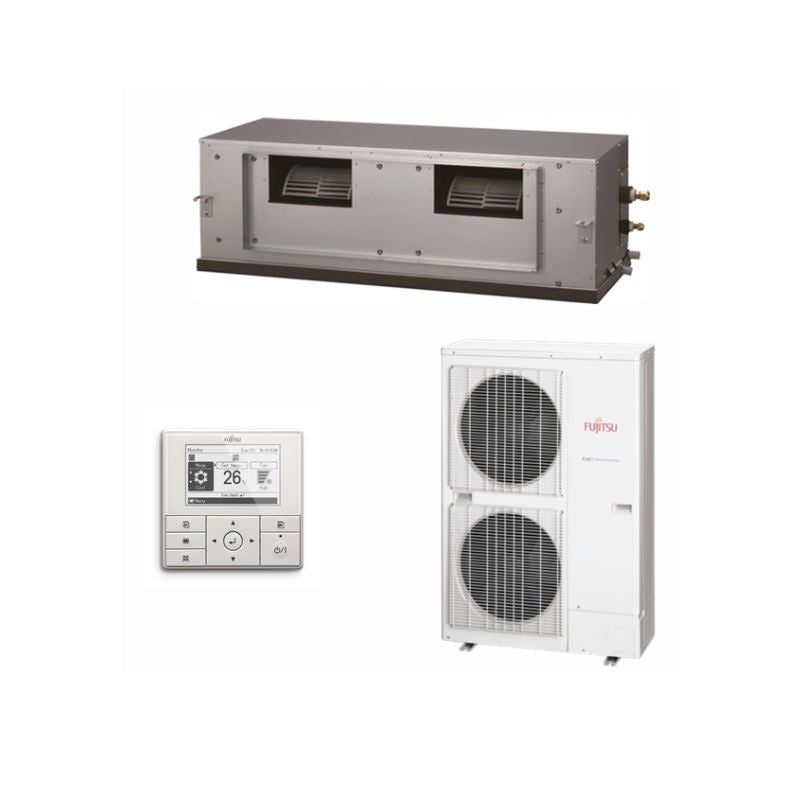

FUJITSU SET-ARTG60LHTA 15.0kW Inverter Ducted Air Conditioner System 3 Phase

Fujitsu Inverter Ducted System

15.0kW Cool – 18.0kW Heat / Indoor ARTG60LHTA – Outdoor AOTG60LATT / Inverter. Ducted. Three Phase.

Wired Back lit Controller : UTY-RVNYN

15.0 kW Cooling
18.0 kW Heating

Automatic Air Flow Adjustment

Specifications

Model No. – Indoor ARTG60LHTA
Model No. – Outdoor AOTG60LATT
Reverse Cycle System Yes
Capacity Class
Cooling Capacity (Watts) 15,000
Cooling Capacity (BTU/h) 51,200
Range (Watts) 6,200 – 17,500
Range (BTU/h) 21,200 – 60,000
Heating Capacity (Watts) 18,000
Heating Capacity (BTU/h) 61,500
Range (Watts) 6,200 – 20,000
Range (BTU/h) 21,200 – 68,300
Power Supply (Volts) 415
Phase-Frequency (Ph – Hz) 3 – 50
Power Supply Attachment Outdoor
Plug Size (If Applicable)
Running Current, Cooling (Amps) 6.7
Running Current, Range (Amps) Max 12.5
Input, Cooling (Watts) 4,700
Input, Range (Watts) Max 7,400
Running Current, Heating (Amps) 7.3
Running Current, Range (Amps) Max 12.5
Input, Heating (Watts) 5,150
Input, Range (Watts) Max 7,400
Input (Watts)
Moisture Removal (l/hr) 2
E.E.R. – Cooling 3.19
C.O.P. – Heating 3.5
Star Rating – Cooling
Star Rating – Heating
Fan Speed 4
Air Circulation, High (l/s) 986
Compressor Type Twin Rotary
Dimensions – Inside Unit (HxWxD mm) 425 x 1,250 x 490
Weight – Inside Unit (kg) 54
Dimensions – Outside Unit (HxWxD mm) 1,290 x 900 x 330
Weight – Outside Unit (kg) 104
I.U. Sound Pressure Level (dBA@1mtr) 45
O.U. Sound Pressure Level (dBA@1mtr) 56
O.U. Sound Power Level (dBA) 71
Refrigerant Type R410A
Connection Pipe Sizes, Gas (mm) 15.88
Connection Pipe Sizes, Liquid (mm) 9.52
Pre Charged Length (Metre) 30
Minimum Pipe Length (Metre) 5
Maximum Pipe Length (Metre) 75
Maximum Pipe Height (Metre) 30
Pipe Connection Methods Flare
Outdoor operating Temp, Cooling Degrees C -15 to 46
Outdoor operating Temp, Heating Degrees C -15 to 24
