Daikin FCA125C-CC2Y 12.5kw Inverter Cassette (R32) System – 3 Phase
Quantity:
Overview

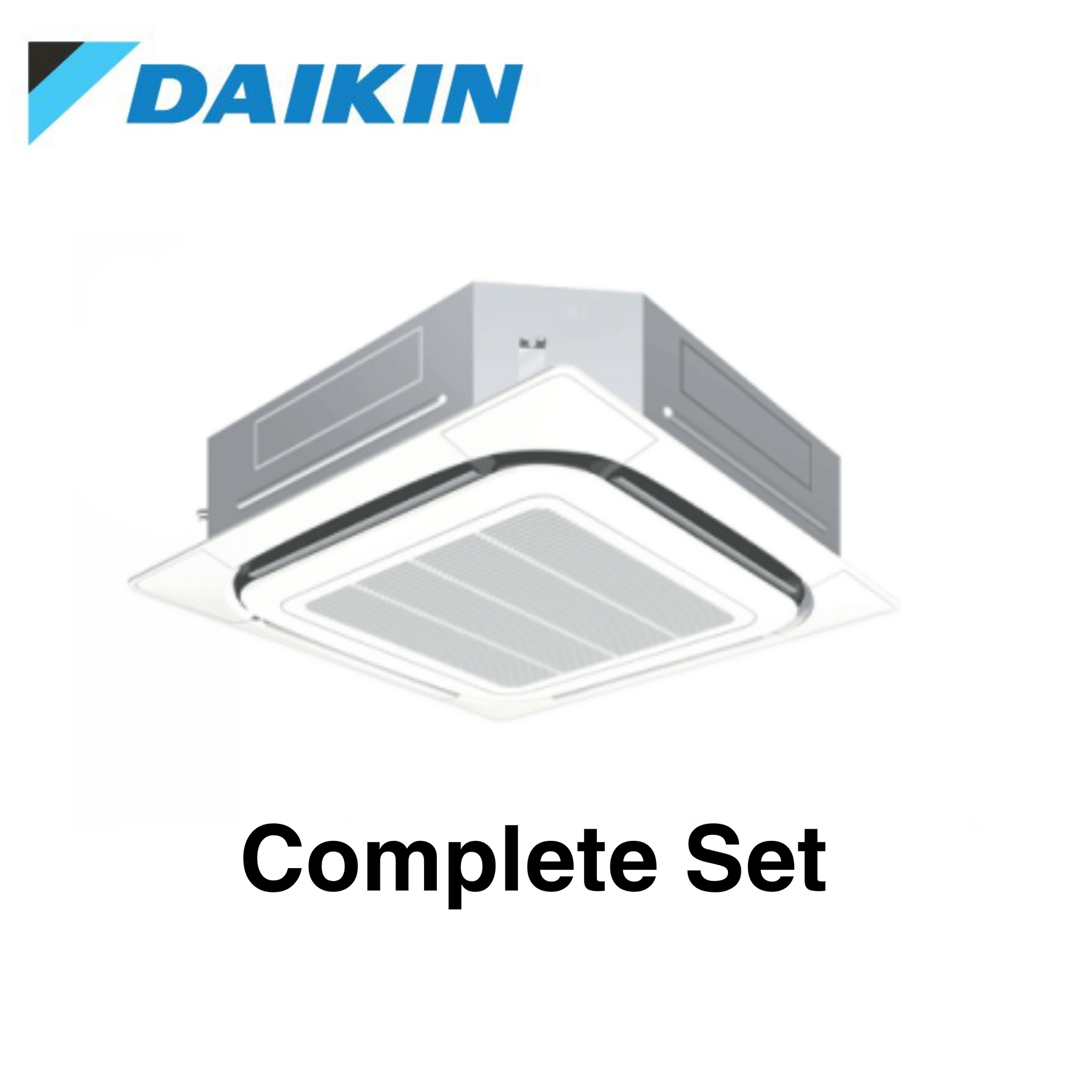

Daikin FCA125C-CC2Y 12.5kw Inverter Cassette System
The Daikin FCA125C-CC2Y 12.5kW Inverter Cassette System provides powerful cooling and heating in a sleek, compact design. Ideal for commercial spaces, this 3-phase unit offers superior performance with an efficient reverse cycle operation. Equipped with a wired controller and fresh white fascia, it ensures easy control and aesthetic appeal. With advanced energy efficiency, quiet operation, and robust construction, it’s the perfect solution for maintaining comfort in large areas.
Indoor: FCA125CVMA
Outdoor: RZAC125C2Y1
Controller: Wired Controller BRC1E63
Fascia: BYCQ125EAF
Specifications
| Indoor Unit | FCA125CVMA | |||||||
| Outdoor Unit | RZAC125C2Y1 | |||||||
| Power Supply | ø / V / Hz | 3 Phase, 380-415V, 50 Hz | ||||||
| Cooling Capacity | Rated (Min – Max) | kW | 12.5 (4.0 – 14.0) | |||||
| Heating Capacity | Rated (Min – Max) | kW | 14.0 (3.5 – 16.0) | |||||
| Power Consumption | Cooling | kW | 3.53 | |||||
| Heating | kW | 3.63 | ||||||
| Enery Efficiency | EER | kW | 3.54 | |||||
| COP | kW | 3.86 | ||||||
| Indoor Unit | Colour | Unit | – | |||||
| Decoration Panel | Fresh White | |||||||
| Airflow Rate (H / HM / M / ML / L) | L/s | 608 / 558 / 500 / 442 / 383 | ||||||
| m³/min | 36.5 / 33.5 / 30.0 / 26.5 / 23.0 | |||||||
| Sound Pressure Level (H / HM / M / ML / L) | dB(A) | 46.0 / 43.5 / 41.0 / 38.5 / 36.0 | ||||||
| Dimensions (HxWxD) | Unit | mm | 298 x 840 x 840 | |||||
| Decoration Panel | mm | 50 x 950 x 950 | ||||||
| Machine Weight | Unit | kg | 26 | |||||
| Decoration Panel | kg | 5.5 | ||||||
| Certified Operation Range | Cooling | °CWB | 14 to 25 | |||||
| Heating | °CDB | 15 to 27 | ||||||
| Outdoor Unit | Colour | Ivory white | ||||||
| Compresser | Type | Hermetically sealed swing type | ||||||
| Motor output | kW | 3.3 | ||||||
| Refrigerant Charge (R410a) | kg | 2.9 (charged for 30m) | ||||||
| Sound Level | Cooling / Heating | dB(A) | 53 / 56 | |||||
| Night quiet mode | dB(A) | 49 | ||||||
| Sound Power Level (H/L) | dB(A) | – | ||||||
| Dimensions (HxWxD) | mm | 990 x 940 x 320 | ||||||
| Machine Weight | kg | 78 | ||||||
| Certified Operation range | Cooling | °CDB | -5 to 46 | |||||
| Heating | °CWB | -15 to 15.5 | ||||||
| Piping Connections | Liquid (Flare) | mm | ø9.5 | |||||
| Gas (Flare) | mm | ø15.9 | ||||||
| Drain | Indoor Unit | mm | I.D. ø25 x O.D ø32 | |||||
| Outdoor Unit | mm | ø26.0 (Hole) | ||||||
| Refrigerant | R32 | |||||||
| Max, interunit piping length | m | 50 (Equivalent length 70) | ||||||
| Max. Installation level difference | m | 30 | ||||||
| Heat insulation | Both liquid and gas piping | |||||||
