Overview

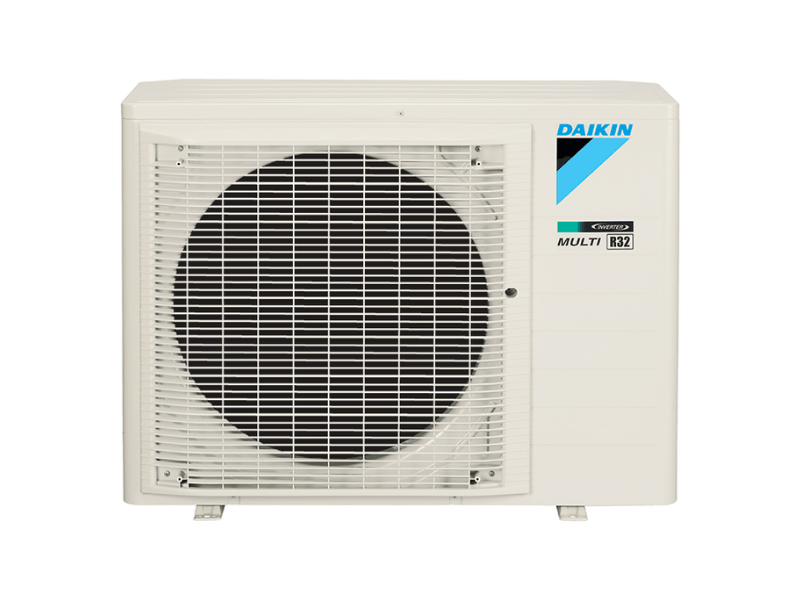

Daikin 8.0kW Super Multi NX Outdoor Unit 4MXM80RVMA - Reverse Cycle
Daikin Reverse Cycle Super Multi NX (R32) Outdoor Unit Only 4MXM80RVMA
8.0kW Cooling – 9.6kW Heating capacity
Max Connectable indoor units: 4
Max Connected Indoor Unit Capacity: 14.5kW
Daikin Super Multi NX Brochure
Specifications
| MODEL NAME | 4MXM80RVMA | ||
| CLASSIFICATION | Heat Pump | ||
| Power Supply | 1 Phase, 220-240 V/220-230 V, 50/60 Hz | ||
| Max Connected indoor units capacity | kW | 14.5 | |
| Casing Colour | Ivory White | ||
| Compressor Type | Hermetically Sealed Swing Type | ||
| Refrigerant Type | R32 | ||
| Sound Level | Cooling | dB(A) | 48/45 |
| Heating | dB(A) | 49/47 | |
| Sound Power Level | Cooling | dB(A) | 60 |
| Heating | dB(A) | 61 | |
| Dimensions (HxWxD) | mm | 695 x 930 x 350 | |
| Machine Weight | kg | 56 | |
| Operating Range | Cooling | °CDB | -10 to 46 |
| Heating | °CWB | -15 to 18 | |
| Max Piping Length | mm | 70 (total) | |
| 30 (for one room) | |||
| Necessity of Additional Charge | g/m | 20 (for 40m or more) | |
| Max. Installation Height Difference | m | 15 (between indoor and outdoor units) / 7.5 (between indoor units | |
