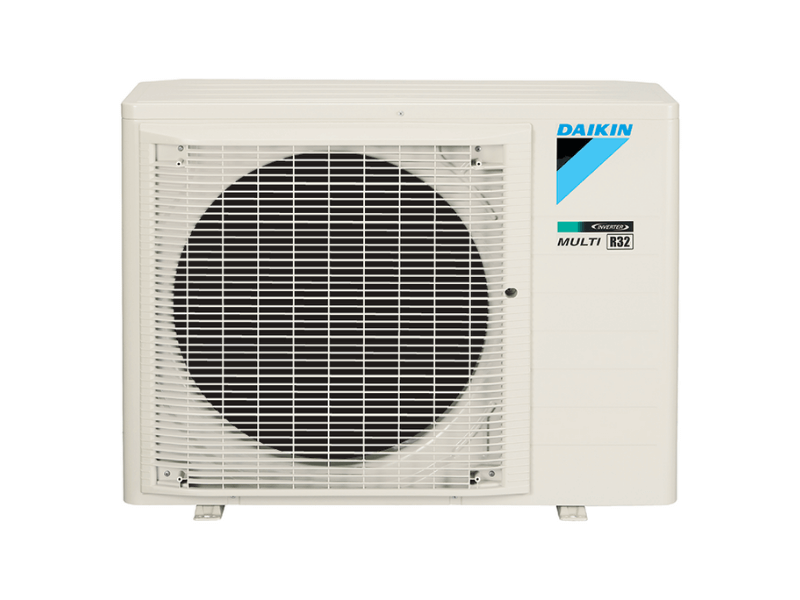

Daikin 7kW Multi Head 2-Port LITE Outdoor Unit Only 2MXF70TVMA

Daikin

Daikin 7kW Multi Head 2-Port LITE Outdoor Unit Only 2MXF70TVMA

$1,774.00
No reviews
No reviews
MODEL: 2MXF70TVMA
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

Daikin 7.0kW Multi Head 2-Port LITE Outdoor Unit Only 2MXF70TVMA - Reverse Cycle

Multi-Lite Outdoor unit only

7.0 kW Cooling
7.0 kW Heating



 Daikin Lite Multi Brochure


Specifications

Outdoor Unit 2MXF70TVMA
Power Supply  1 phase, 220-240V/220-230V, 50/60Hz
Rated Capacity Cool (kW) 7.0
Heat (kW) 7.0
Max Connectable Indoor Units 2
Max Connected Indoor Unit Capacity (kW) 7.5
Casing Colour  Ivory White
Compressor Type  Hermetically Sealed Swing Type
Refrigerant Type  R32
Sound Level (Rated/Quiet) Cool (dBA) 51/46
Heat (dBA) 53/46
Sound Power Level (H) Cool (dBA) 63
Heat (dBA) 65
Dimensions (HxWxD) (mm) 595x845x300
Weight (kg) 47
Operation Range Cool (°CDB) 10 to 46
Heat (°CWB) -15 to 18
Max Piping Length Total (m) 30
Per Room (m) 25
Additional Charge (g/m) 20 (for 20m or more)
Max Installation Height Difference (m) 15 (between indoor and outdoor units) / 7.5 (between indoor units)
