Daikin 7.1kW Slimline Ducted System FBA71BVMA / RZAC71CV1

Daikin

Daikin 7.1kW Slimline Ducted System FBA71BVMA / RZAC71CV1

Sale price$3,265.00
No reviews
No reviews
MODEL: FBA71BVMA / RZAC71CV1
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

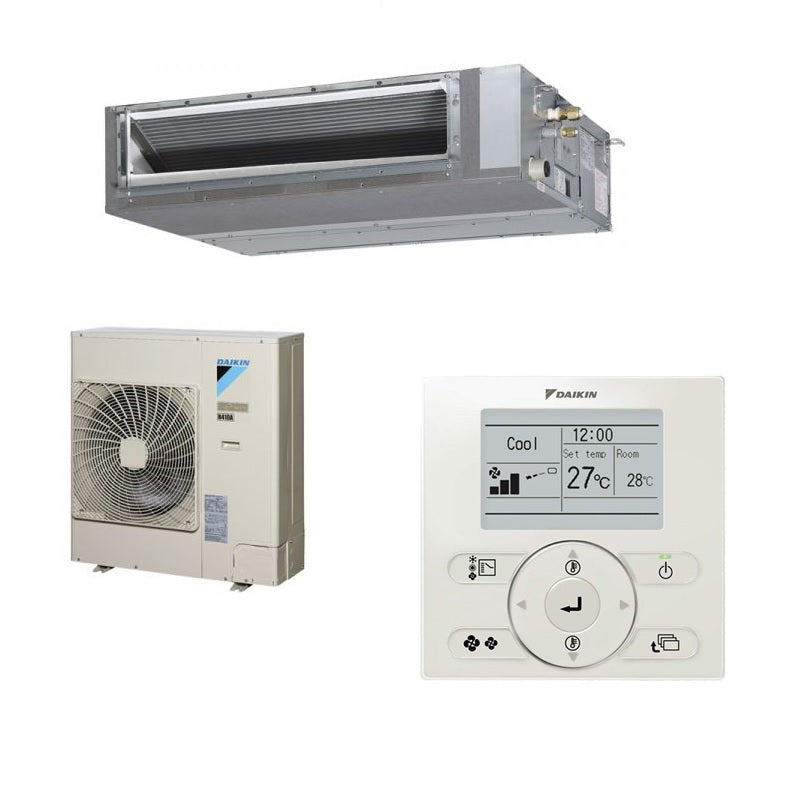

Daikin Slimline Ducted System FBA71BVMA/RZAC71CV1 – 1 Phase

Indoor Unit – FBA71BVMA
Outdoor Unit – RZAC71CV1

Cooling Capacity, Rated – 7.10
Heating Capacity, Rated – 8.00

Phase – 1 Phase

Designed specifically to suit installations where ceiling space is at a premium, our Slim-Line Ducted series has unparalleled flexibility and freedom of design.

Ideal for narrow ceiling spaces or under the floor, this ducted system meets the challenges of modern commercial and medium density apartment development.

Slim-Line Indoor
Industry leading low profile design of 245mm height ensures clearance in most narrow roof spaces.

Design Flexibility
DC fan with an static pressure of 150Pa and up to 75m (100 Class) of available pipe run to suit your design layout.

R22 Retrofit Capability
Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping.

Automatic Airflow Adjustment
Allows the fan speed to adjust automatically to suit your duct design for optimum airflow distribution.

Flexible Return Air
Option of a rear or bottom suction return allows for greater installation flexibility.

Built-in condensate pump
DC Condensate pump is equipped as standard with a 850mm lift.



Specifications


Indoor Unit FBA50BAVMA FBA60BAVMA FBA71BVMA FBA85BVMA FBA100BVMA FBA125BVMA FBA140BVMA FBA71BVMA FBA85BVMA
Outdoor Unit RZAV50CV1 RZAV60CV1 RZAV71CV1 RZAV85CV1 RZAV100CV1 RZAV125CV1 RZAV140CV1 RZAC71CV1 RZAC85CV1
Rated Capacity Cool (kW) 5.0 6.0 7.1 8.5 10.0 12.5 14.0 7.1 8.5
  Heat (kW) 6.0 7.1 8.0 10.0 11.2 14.0 16.0 8.0 10.0
Capacity Range Cool (kW) 1.4-6.0 1.4-7.1 3.2-8.0 4.0-10.0 5.0-11.2 5.0-14.0 5.0-16.0 1.8-8.0 3.2-10.0
  Heat (kW) 1.4-7.1 1.4-8.0 3.5-9.0 4.1-11.2 5.1-12.5 5.1-16.0 5.1-18.0 2.0-9.0 3.5-11.2
Power Input (Rated) Cool (kW) 1.37 1.67 2.02 2.30 2.72 3.68 4.08 2.15 2.64
  Heat (kW) 1.41 1.71 1.99 2.50 2.81 3.72 4.51 2.30 2.95
E.E.R/C.O.P C/H 3.65/4.26 3.60/4.14 3.51/4.02 3.70/4.00 3.68/3.99 3.40/3.76 3.43/3.55 3.30/3.47 3.22/3.39
Airflow Rate (Rated) l/s 300 300 383 533 533 600 600 383 533
Indoor Sound Level (H) @ 1.5m dBA 35 35 38 38 38 40 40 38 38
Piping Length m 50 75 50
Indoor Fan Speeds   H/M/L
Dimensions (HxWxD) Indoor (mm) 245x1000x800 245x1400x800 245x1000x800 245x1400x800
  Outdoor (mm) 595x845x300 990x940x320 1430x940x320 595x845x300 990x940x320
Weight Indoor (kg) 37 37 37 47 47 47 47 37 47
  Outdoor (kg) 45 45 69 78 93 93 99 45 69
Power Supply  V/Hz 1 Phase, 220-240V, 50Hz
Compressor Type   Hermetically Sealed Swing Type
Refrigerant   R32
Pipe Sizes Liquid (mm) 6.4 (Flared) 9.5 (Flared)
  Gas (mm) 12.7 (Flared) 15.9 (Flared)
  Drain (mm) ID 25 / OD 32
Supply Air Opening  mm (HxW, Flange) 176x792 176x1192 176x792 176x1192
Return Air Opening  mm (HxW, Flange) 208x952 208x1352 208x952 208x1352
Outdoor Operating Range  Cool (°CDB) -5 to 50 -5 to 46
  Heat (°CWB) -15 to 16
EPA Sound Power Level  dBA 68 68 67 71 70 - - 68 70
Outdoor Sound Level (H) @ 1m Pressure dBA (C/H) 48/51 48/51 48/50 52/53 51/53 52/54 56/58 48/51 51/54
