Daikin 5kW Inverter Bulkhead System FDXS50LVMA / RXS50LBVMA
Daikin 5kW Inverter Bulkhead System FDXS50LVMA / RXS50LBVMA

Daikin

Daikin 5kW Inverter Bulkhead System FDXS50LVMA / RXS50LBVMA

Sale price$2,088.00
No reviews
No reviews
MODEL: FDXS50LVMA / RXS50LBVMA
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

Daikin 5kW Inverter Bulkhead System FDXS50 with Wireless Controller

Indoor : FDXS50LVMA
Outdoor : RXS50LBVMA

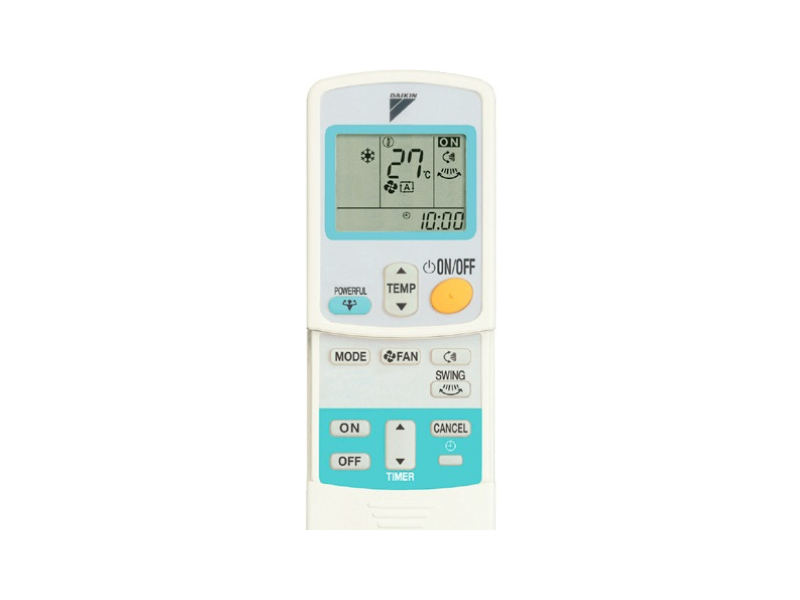

Controller : Wireless controller included

Features

Ultra Compact
Compact form factor – measuring at 200mm (H) and 620mm (D), makes it suitable for a variety of applications.

Whisper-Quiet
Noise levels are truly discrete and whisper quiet at 35dBA (25 Class Model).

Auto-Fan-Speed
An optimal fan speed is automatically selected to suit the set temperature for a more efficient operation.

Flexible Return Air
Option of a rear or bottom suction return allows for greater installation flexibility.

Night Set Mode
Temperatures are gently adjusted to prevent excessive cooling/heating for a more pleasant night’s sleep.

Standby Power Function
Automatically reduces energy consumption when the system is not in use.

Specifications

Indoor Unit FDXS50LVMA
Outdoor Unit RXS50LBVMA
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 5.0
Heat (kW) 5.8
Capacity Range
Cool (kW) 2.3 ~ 5.3
Heat (kW) 2.3 ~ 6.0
Power Input (Rated)
Cool (kW) 1.50
Heat (kW) 1.72
EER/COP 3.33 / 3.37
Drain Size (mm) ID 20 / OD 26
Duct Sizes
Supply (mm) 153 x 1060 (Flange)
Return (mm) 160 x 980 (Flange)
Dimensions (HxWxD)
Indoor (mm) 200 x 1100 x 620
Outdoor (mm) 770 x 900 x 320
Weight
Indoor (kg) 30
Outdoor (kg) 71
Refrigerant Type R410A
Max Pipe Length (m) 30
Pipe Sizes
Liquid (mm) 9.52
Gas (mm) 15.88
Connection Type Flare
Ambient Temperature
Cool (°C) 10 ~ 46
Heat (°C) -15 ~ 18
Indoor Airflow Rate
(l/s) 267
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 38
Heat (dBA) 38
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 50
Heat (dBA) 51
Outdoor EPA Sound Power Level (H)
(dBA) 65
