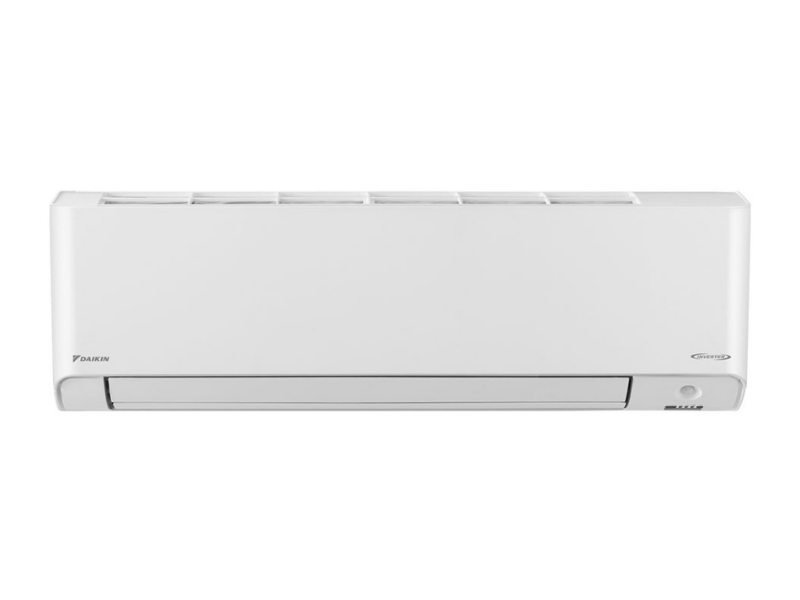

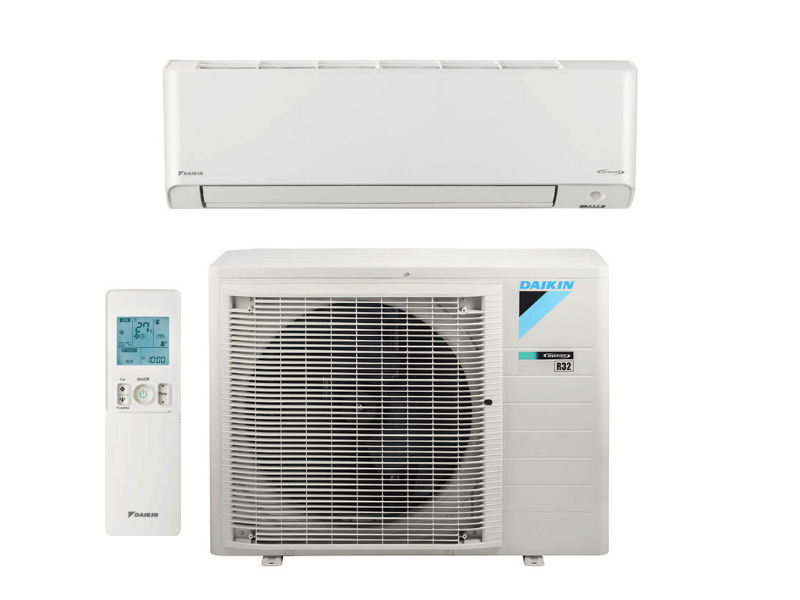

FTXM50WVMA ALIRA X 5kW Daikin Split System Air Conditioner (C) 5.0kW (H) 6.0kW
Alira X is a step ahead of the rest, delivering a perfect fusion of whisper quiet comfort, industry leading energy efficiency and indoor air quality technology.
ALIRA X Technology
- Built-in WiFi Adaptor
- Improved compact 14 pole DC outer diameter rotor motor encased in rubber vibration dampeners delivers higher torque more efficiently than before while ensuring whisper quiet operations.
- Large dual louvres with aerodynamic end vanes help reduce turbulence for draught free comfort with longer throw distances of up to 10m (50-71 Class).
- Monitors humidity to accurately control supply air temperature for comfortable and effective dehumidification of your room during Program Dry Function operation.
- Streamer Technology. Discharges high speed electrons generating powerful oxidative decomposition that continuously removes odours, bacteria and indoor air pollutants such as formaldehyde
New R32 Alira X is a perfect blend of progressive design aesthetic, superior energy performance & indoor air quality technology.
Each model is fitted with three layers of filtration, prefilter for large particulates, enzyme blue deodorising filter for odours and Daikin’s Streamer Technology for powerful oxidative decomposition of pollutants.

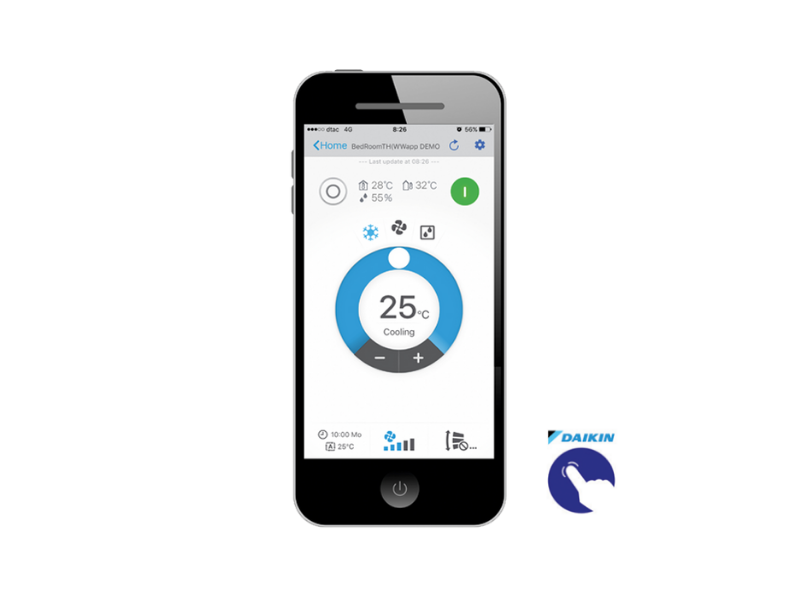

Built In Wi-Fi
Wi-Fi module for connection to Daikin’s Mobile Controller smartphone interface is now conveniently included inside the casing of the indoor unit.
Activates after cooling or dry operation to prevent the build up of mould and odour.*
The 2-Area Intelligent Eye** is so clever it can now either direct airflow towards you or away from you for draught free comfort. If the room is unoccupied the unit will automatically enable energy saving operations.
Discharge louvres designed to stream air along the ceiling for longer throws and delivering rapid cooling and even temperature distribution.
Streamer Technology – The Three C’s
- Clash – Decomposes harmful substances trapped by the High Efficiency Particulate Filter.
- Cycle – Maintains the deodorising filter’s deodorising capacity by assisting odour decomposition.
- Clean – Removes bacteria from all filters allowing them to be maintenance free and increasing filter longevity.
The secret to high performance air purification is Daikin’s Streamer Technology. This innovative technology features a high-power plasma discharge that generates high-speed electrons to decompose harmful substances. This powerful oxidative decomposition process continuously removes odours, bacteria and indoor air pollutants, such as formaldehyde, for superior air purification.

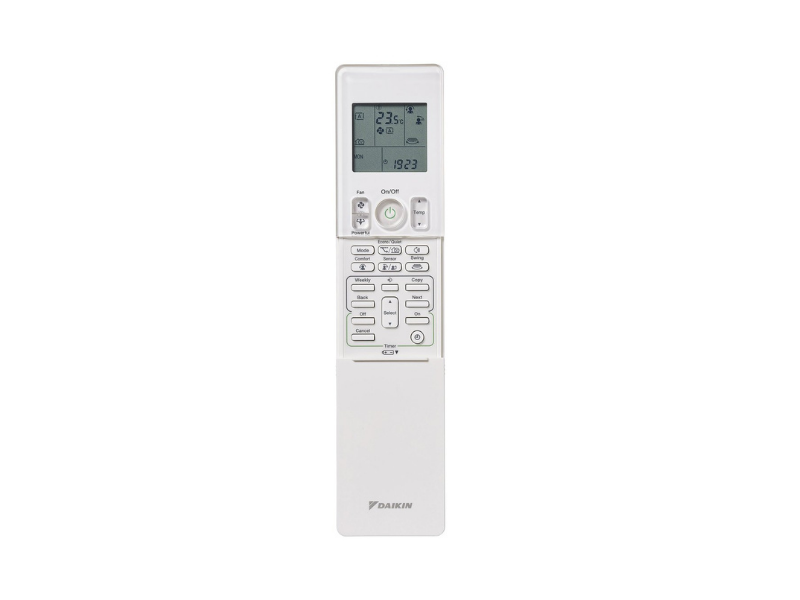

* Mould-proof operation function can be toggled (On/Off) via the wireless controller
**2-Area Intelligent Eye only applicable to 20-46 Class Models.
|Rated Capacity||Cool (kW)||5.0|
|Capacity Range||Cool (kW)||1.1-6.7|
|Indoor Airflow Rate (Hi)||Cool (L/s)||342|
|Indoor Fan Speeds||5 steps, quiet and automatic|
|Energy Label / Star Ratings (Hot / Avg / Cold)||Cool||5.5 / 5 / 5 Stars|
|Heat||4 / 3.5 / 3 Stars|
|Front Panel Colour||White|
|Power Supply||1 Phase, 220-240 V, 50 Hz|
|Power Input (Rated)||Cool (kW)||1.13|
|E.E.R./C.O.P.||Cool/Heat||4.42 / 4.88|
|TCSPF (Residential)||Hot / Avg / Cold||7.00 / 6.56 / 6.99|
|HSPF (Residential)||Hot / Avg / Cold||5.84 / 5.25 / 4.60|
|A.E.E.R / A.C.O.P||Cool / Heat||4.41 / 4.86|
|Dimensions (HxWxD)||Indoor (mm)||299 x 1100 x 275|
|Outdoor (mm)||695 x 930 x 350|
|Max Pipe Length||m||30|
|Max Level Difference||m||20|
|Pipe Sizes||Liquid (mm||6.4|
|Outdoor Operating Range||Cool (°CDB)||-10 to 46|
|Heat (°CWB)||-15 to 18|
|Indoor Sound Level (H/SL)||Cool (dBA)||45 / 28|
|Heat (dBA)||45 / 28|
|Outdoor Sound Level (H/SL)||Cool (dBA)||47 / 44|
|Heat (dBA)||48 / 45|
|Outdoor EPA Sound Power Level (H/SL)||Cool (dBA)||59|
