| INDOOR UNIT | FDYQ250LCV1 | |
| OUTDOOR UNIT | RZYQ10TY1 | |
| Rated Capacity | Cool (kW) | 24.0 |
| Heat (kW) | 26.8 | |
| Capacity Range | Cool (kW) | 15.0-24.0 |
| Heat (kW) | 16.8-26.58 | |
| Power Input (Rated) | Cool (kW) | 7.47 |
| Heat (kW) | 8.14 | |
| E.E.R./C.O.P. | Cool/Heat | 3.21/3.29 |
| Air Flow Rate (Rated) | I/S | 1400 |
| Indoor Sound Level (@1.5m) | dBA | 46 |
| Piping Length | (m) | 150 |
| Indoor Fan Speeds | H/M/L | |
| Dimensions (HxWxD) | Indoor (mm) | 470 x 1333 x 919 |
| Outdoor (mm) | 1657 x 930 x 765 | |
| Weight | Indoor(kg) | 85 |
| Outdoor(kg) | 203 | |
| Power Supply | V/Hz | 3 Phase, 380-415V, 50Hz |
| Compressor Type | Hermetically Sealed Scroll Type | |
| Refrigerant | R410A | |
| Pipe Sizes | Liquid (mm) | 9.5 (Brazed) |
| Gas (mm) | 22.2 (Brazed) | |
| Drain (mm) | BSP 3/4 inch Internal Thread | |
| Supply Air Opening | mm (HxW, Flange) | 350 x 1118 |
| Return Air Opening | mm (Oval) | 393 x 1118 (Flange) |
| Outdoor Operating Range | Cool (°CDB) | -5 to 49 |
| Heat (°CWB) | -20 to 16 | |
| EPA Sound Power Level | dBA | - |
| Outdoor Sound Level (H) @1m | Pressure dBA (C/H) | 57/57 |
Daikin
Daikin 25kW Premium Inverter Ducted Air Conditioner FDYQ250LCV1 / RZYQ10TY1
Quantity:
Overview
DAIKIN FDYQ250LCV1 / RZYQ10TY1 25.0kW Premium Inverter Ducted System | Three phase
Best For:
Heating or cooling your entire home
Small to large houses
Houses with limited roof space and outdoor space All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.
24kW Cooling – 26.8kW Heating Capacity

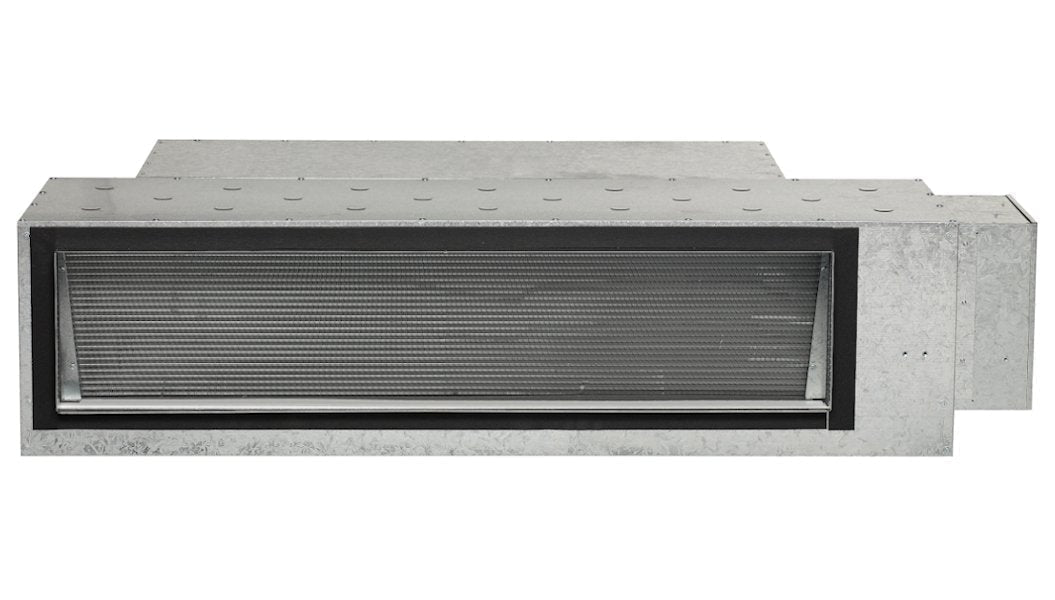

Indoor : FDYQ250LCV1
Outdoor: RZYQ10TY1

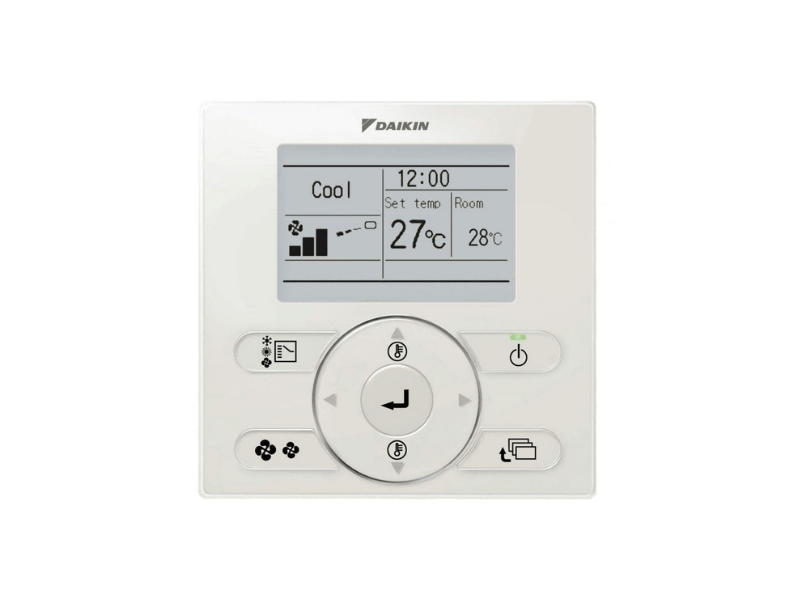

Back lit Wall Controller: BRC1E63
