Daikin
Daikin 20kW Inverter Ducted Three Phase FDYQN200LCV1 / RZQ200MY1
Quantity:
Overview
Daikin 20kW Inverter Ducted System Three phase - FDYQN200LCV1 / RZQ200MY1
Best For:
Heating or cooling your entire home
Larger houses
Houses with limited roof space and outdoor space All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.
FDYQN200LC-M 19.5kW Cooling 22.4kW Heating Inverter Ducted System | Back lit Controller 3 Phase
Indoor: FDYQN200LCV1
Outdoor: RZQ200MY1
Controller: BRC1E63

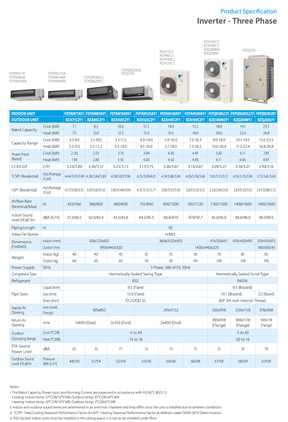

Specifications
| INDOOR UNIT | FDYQN200LCV1 | |
| OUTDOOR UNIT | RZQ200MY1 | |
| Rated Capacity | Cool (kW) | 19.5 |
| Heat (kW) | 22.4 | |
| Capacity Range | Cool (kW) | 10.1-19.5 |
| Heat (kW) | 11.2-22.4 | |
| Power Input (Rated) | Cool (kW) | 6.11 |
| Heat (kW) | 6.85 | |
| E.E.R./C.O.P. | Cool/Heat | 3.19/3.27 |
| Air Flow Rate (Rated) | I/S | 1400 |
| Indoor Sound Level (@1.5m) | dBA | 46.0 |
| Piping Length | (m) | 50 |
| Indoor Fan Speeds | H/M/L | |
| Dimensions (HxWxD) | Indoor (mm) | 470x1400x997 |
| Outdoor (mm) | 1430x940x320 | |
| Weight | Indoor(kg) | 85 |
| Outdoor(kg) | 138 | |
| Power Supply | V/Hz | 3 Phase, 380-415v, 50Hz |
| Compressor Type | Hermetically Sealed Scroll Type | |
| Refrigerant | R410A | |
| Pipe Sizes | Liquid (mm) | 9.5 (Brazed) |
| Gas (mm) | 19.1 (Brazed) | |
| Drain (mm) | BSP 3/4 inch Internal Thread | |
| Supply Air Opening | mm (HxW, Flange) | 350x1118 |
| Return Air Opening | mm (Oval) | 393x1118 (Flange) |
| Outdoor Operating Range | Cool (°CDB) | - 5 to 43 |
| Heat (°CWB) | - 20 to 16 | |
| EPA Sound Power Level | dBA | - |
| Outdoor Sound Level (H) @1m | Pressure dBA (C/H) | 58/59 |
