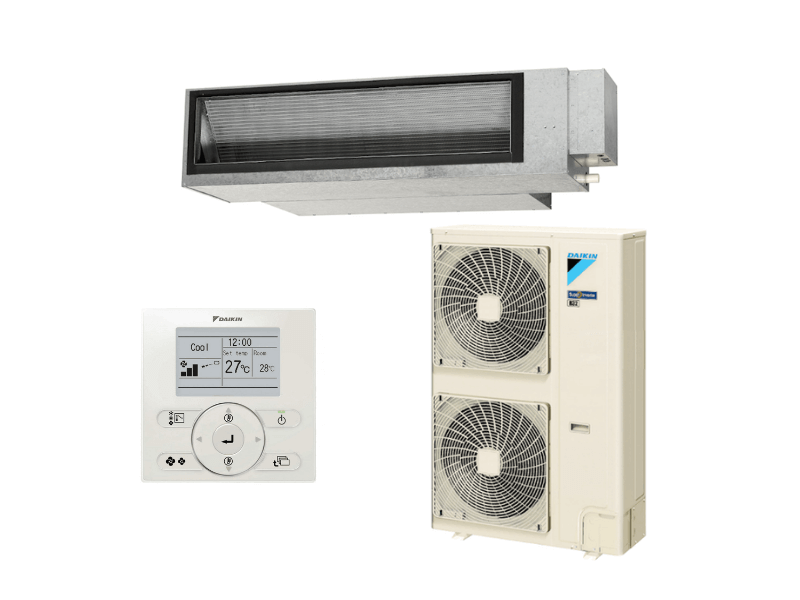

Daikin 16kW 3 Phase Inverter Ducted Air Conditioner FDYAN160AV1 / RZA160CY1
Daikin 16kW Inverter Ducted Air Conditioner FDYAN160
Daikin 16kW Inverter Ducted Air Conditioner FDYAN160
Daikin 16kW 3 Phase Inverter Ducted Air Conditioner FDYAN160AV1 / RZA160CY1
Daikin 16kW 3 Phase Inverter Ducted Air Conditioner FDYAN160AV1 / RZA160CY1

Daikin

Daikin 16kW 3 Phase Inverter Ducted Air Conditioner FDYAN160AV1 / RZA160CY1

Sale price$5,896.00
No reviews
No reviews
MODEL: 3P-FDYAN160AV1 / RZA160CY1
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

Daikin FDYAN160A-CV C15.5kW H18kW Inverter Ducted System | 3 Phase

Best For:
Heating or cooling your entire home
Small to large houses
Houses with limited roof space and outdoor space All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.

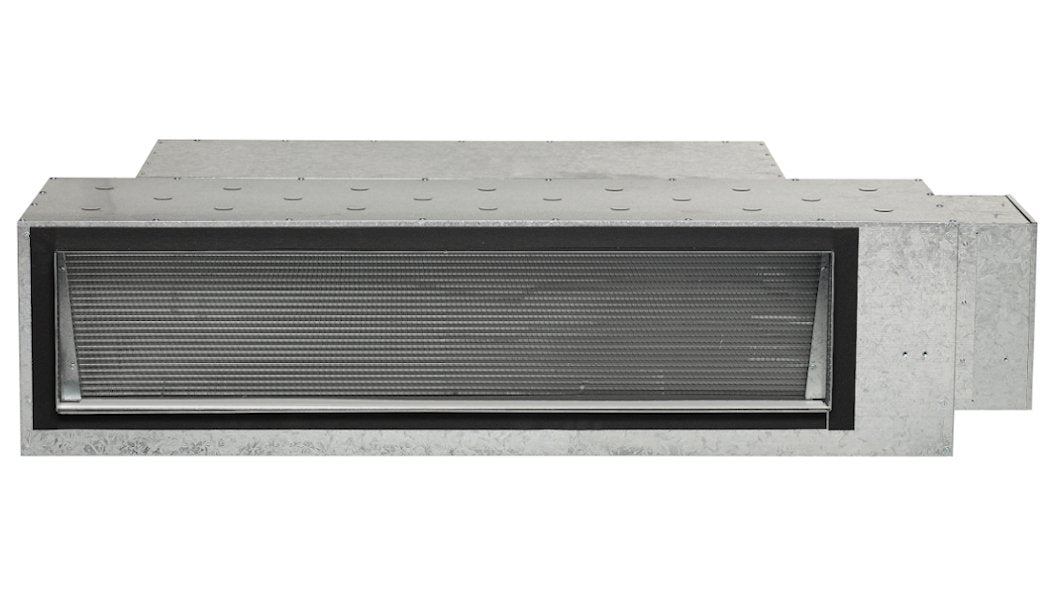

Indoor: FDYAN160AV1

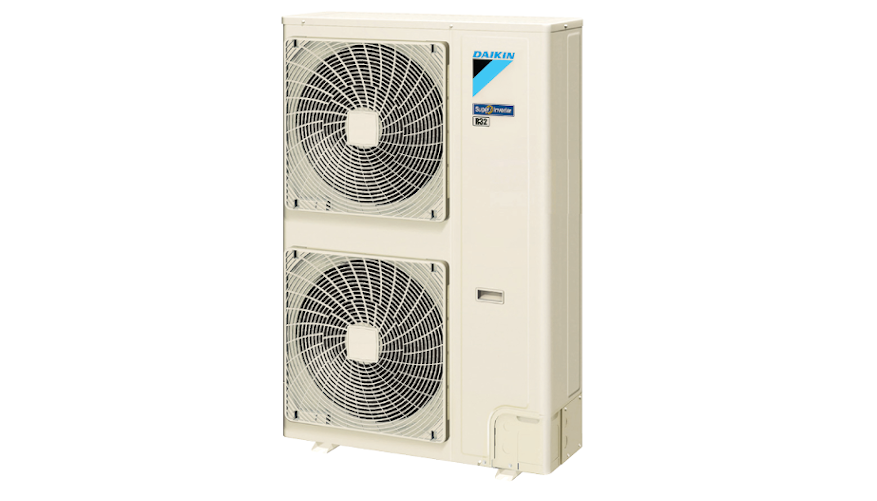

Outdoor: RZA160CY1

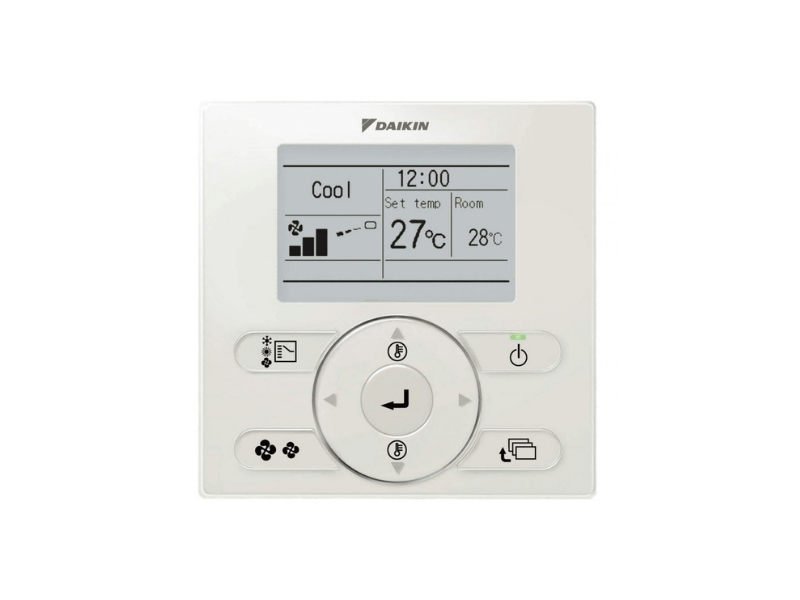

Controller: BRC1E63

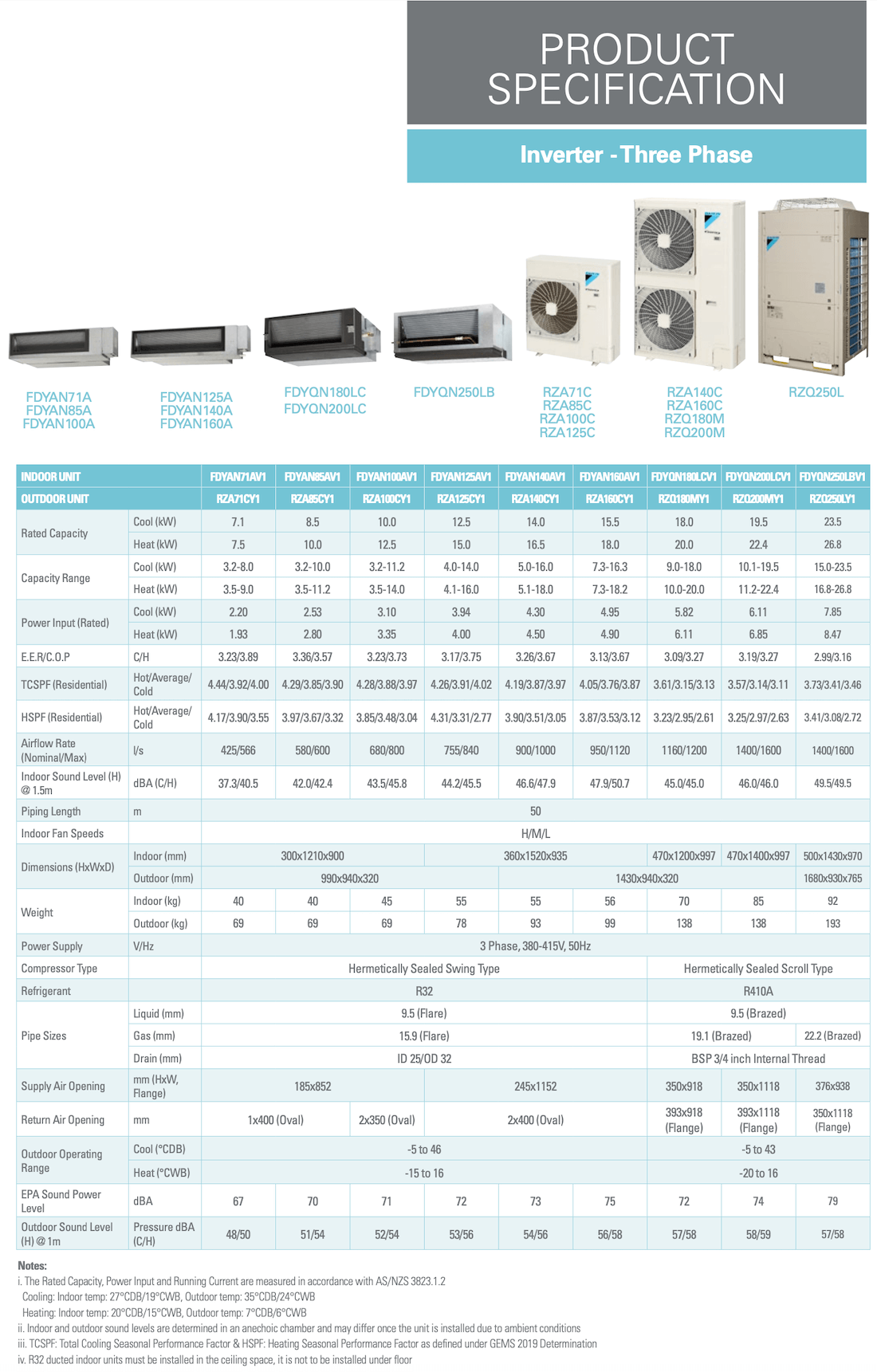

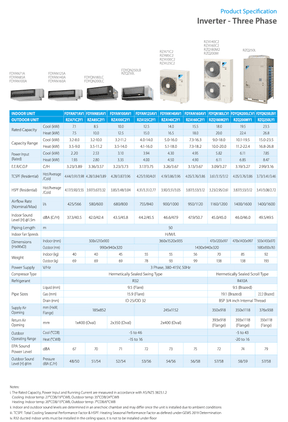

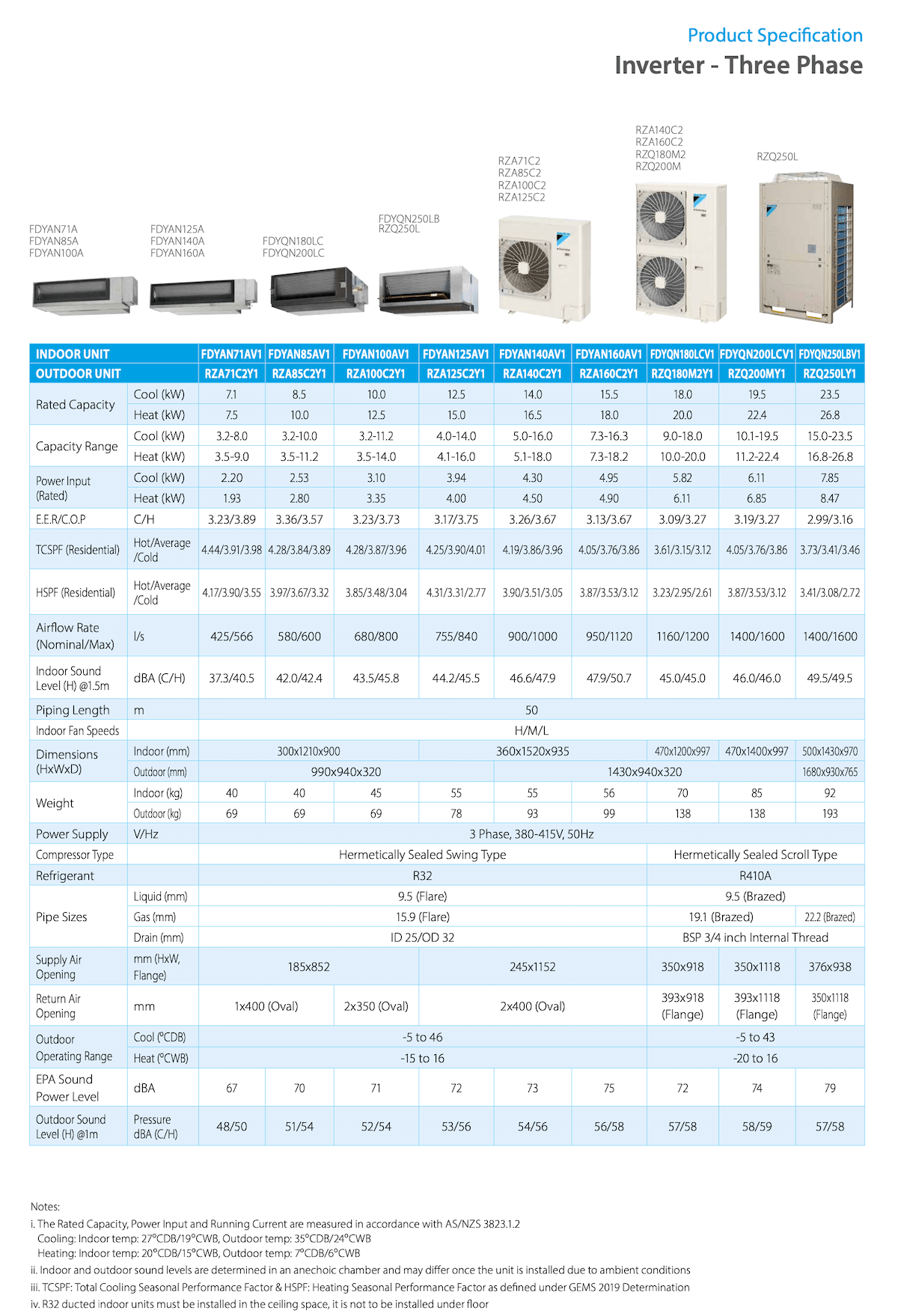

Specifications

INDOOR UNIT FDYAN160AV1
OUTDOOR UNIT RZA160CY1
Rated Capacity Cool (kW) 15.5
Heat (kW) 18.0
Capacity Range Cool (kW) 7.3-16.3
Heat (kW) 7.3-18.2
Power Input (Rated) Cool (kW) 4.95
Heat (kW) 4.90
E.E.R./C.O.P. Cool/Heat 3.13/3.67
Air Flow Rate (Rated) I/S 950
Indoor Sound Level (@1.5m) dBA 47.9/50.7
Piping Length (m) 50
Indoor Fan Speeds   H/M/L
Dimensions (HxWxD) Indoor (mm) 360x1520x935
Outdoor (mm) 1430x940x320
Weight Indoor(kg) 56
Outdoor(kg) 99
Power Supply V/Hz 3 Phase, 380-415V, 50Hz
Compressor Type   Hermetically Sealed Swing Type
Refrigerant   R32
Pipe Sizes Liquid (mm) 9.5 (Flared)
Gas (mm) 15.9 (Flared)
Drain (mm) ID 25 / OD 32
Supply Air Opening mm (HxW, Flange) 245x1152
Return Air Opening mm (Oval) 2x400 (Oval)
Outdoor Operating Range Cool (°CDB) - 5 to 46
Heat (°CWB) - 15 to 16
EPA Sound Power Level dBA 75
Outdoor Sound Level (H) @1m Pressure dBA (C/H) 56/58
