Daikin 10kW 3 phase Inverter Ducted Air Conditioner FDYAN100AV1 / RZA100C2Y1
Daikin 10kW Inverter Ducted Air Conditioner FDYAN100
Daikin 10kW 3 phase Inverter Ducted Air Conditioner FDYAN100AV1 / RZA100C2Y1
Daikin 10kW 3 phase Inverter Ducted Air Conditioner FDYAN100AV1 / RZA100C2Y1
Daikin 10kW 3 phase Inverter Ducted Air Conditioner FDYAN100AV1 / RZA100C2Y1

Daikin

Daikin 10kW 3 phase Inverter Ducted Air Conditioner FDYAN100AV1 / RZA100C2Y1

Sale price$4,509.00
No reviews
No reviews
MODEL: 3P-FDYAN100AV1 / RZA100C2Y1
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

DAIKIN FDYAN100A-CV 10.0kW Inverter Ducted System FDYAN100AV1 / RZA100C2Y1 | 3 Phase

Best For:
Heating or cooling your entire home
Small to large houses
Houses with limited roof space and outdoor space All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.

Indoor : FDYAN100AV1

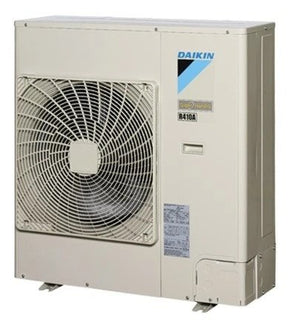

Outdoor : RZA100C2Y1
Controller : BRC1E63

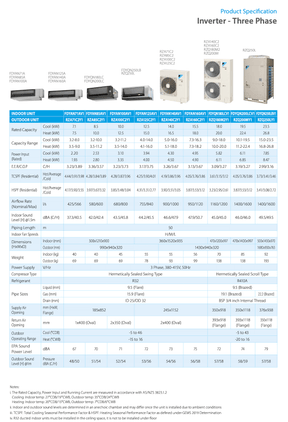

Specifications

INDOOR UNIT FDYAN100AV1
OUTDOOR UNIT RZA100C2Y1
Rated Capacity Cool (kW) 10.0
Heat (kW) 12.5
Capacity Range Cool (kW) 3.2-11.2
Heat (kW) 3.5-14.0
Power Input (Rated) Cool (kW) 3.10
Heat (kW) 3.35
E.E.R./C.O.P. Cool/Heat 3.23/3.73
Air Flow Rate (Rated) I/S 680
Indoor Sound Level (@1.5m) dBA 43.5/45.8
Piping Length (m) 50
Indoor Fan Speeds   H/M/L
Dimensions (HxWxD) Indoor (mm) 360x1520x935
Outdoor (mm) 990x940x320
Weight Indoor(kg) 45
Outdoor(kg) 69
Power Supply V/Hz 3 Phase, 380-415V, 50Hz
Compressor Type   Hermetically Sealed Swing Type
Refrigerant   R32
Pipe Sizes Liquid (mm) 9.5 (Flared)
Gas (mm) 15.9 (Flared)
Drain (mm) ID 25 / OD 32
Supply Air Opening mm (HxW, Flange) 185x852
Return Air Opening mm (Oval) 2x350 (Oval)
Outdoor Operating Range Cool (°CDB) - 5 to 46
Heat (°CWB) - 15 to 16
EPA Sound Power Level dBA 71
Outdoor Sound Level (H) @1m Pressure dBA (C/H) 52/54
