ActronAir CRE-140AS / URC-140AS 14kW Cassette Split System

Actron Air

ActronAir CRE-140AS / URC-140AS 14kW Cassette Split System

Sale price$5,489.00
No reviews
No reviews
MODEL: CRE-40AS / URC-140AS / C4-P2
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

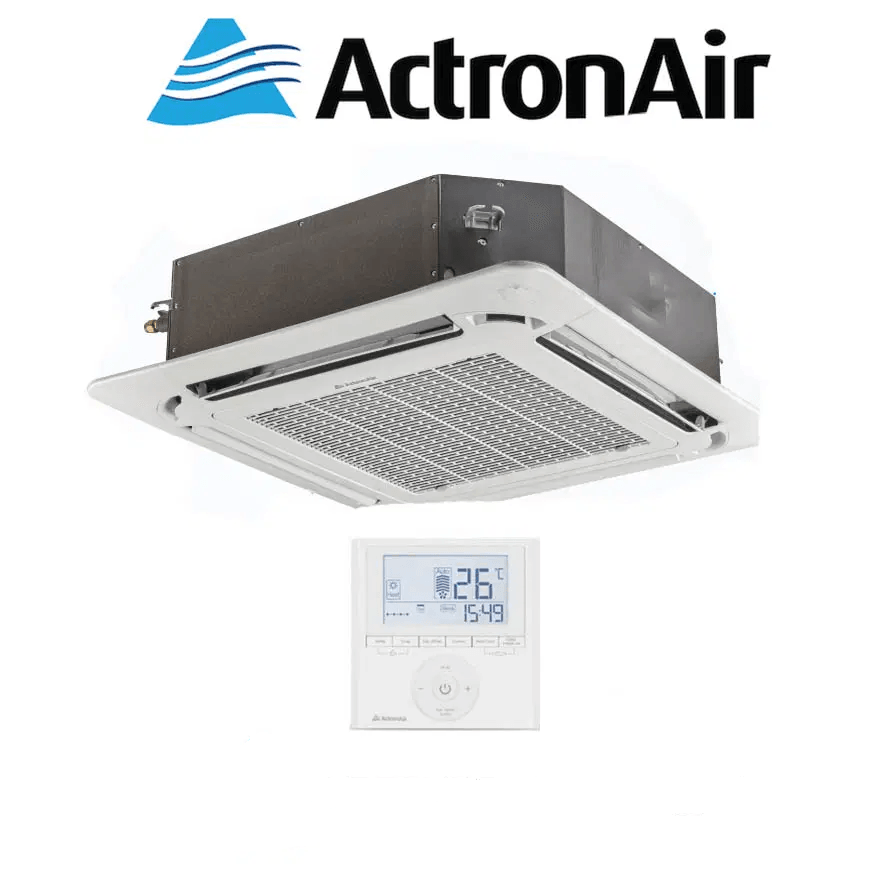

ActronAir CRE-140AS / URC-140AS 14kW Cassette Split System

The ActronAir CRE-140AS / URC-140AS 14kW Cassette Split System delivers powerful climate control with a sleek, discreet design. Featuring 13.75 kW cooling and 15.30 kW heating capacities, it is perfect for maintaining comfort in larger spaces. With an inverter twin-rotary compressor, R410A refrigerant, and a premium wired controller, this system ensures efficient and reliable performance. Its robust construction and advanced features make it an ideal choice for both residential and commercial environments.

Indoor: CRE-140AS
Outdoor: URC-140AS
Controller: Premium wired controller included

Specifications

Technical Information
OUTDOOR MODEL URC-140AS
INDOOR MODEL CRE-140AS
Nett (Rated) Capacity (kW) (AS/NZS3823.1.1) Cooling (min max) 13.75 (5.60 16.80)
Heating (min max) 15.30 (5.80 17.50)
Input Power (kW) (AS/NZS3823.1.1) Cooling Rated 4.08
Heating Rated 4.41
EER Rated (AS/NZS3823.1.1) / COP Rated (AS/NZS3823.1.1) Cooling 3.37
Heating 3.47
Star Rating (AS/NZS3823.1.1) Cooling 2.0
Heating 2.0
Power Supply (V / Ph / Hz) Outdoor 220 240 V / 1Ph+N / 50Hz
Rated Load Amps (AS/NZS3823.1.1) Cooling 17.8
Heating 19.2
Full Load Amps (AS/NZS3823.1.1) 26.5
Circuit Breaker Amps 32.0
Suggested Minimum Mains Cable Size 6.0mm2
Suggested Minimum Indoor to Outdoor Power Cable Size & Type 1.0mm2 2 Core + Earth
IP Rating Outdoor IP24
Indoor IP20
Moisture Removal (L/hr) 4.0
Compressor Type Inverter Twin-Rotary
Refrigerant R410A
Airflow Range Indoor (l/s) High 511
Medium 467
Low 414
Outdoor Dimensions (mm) Depth 415
Height 1333
Width 952
Indoor Dimensions (mm) Depth 840
Height 287
Width 840
Indoor Panel Dimensions (mm) Depth 950
Height 55
Width 950
Nominal Weight (kgs) Outdoor 101
Indoor 36
Indoor Sound Pressure Level (dBA) (Low / Med / High) 47 / 50 / 53
Outdoor Sound Pressure Level (dBA) 1m 63
Outdoor Sound Power Level (dBA) 71
Outdoor Operating Range (C) Cooling -15C to 50C
Heating -25C to 30C
MEPS Compliant Yes
Demand Response Capability (AS4755.3) Capable
