Daikin

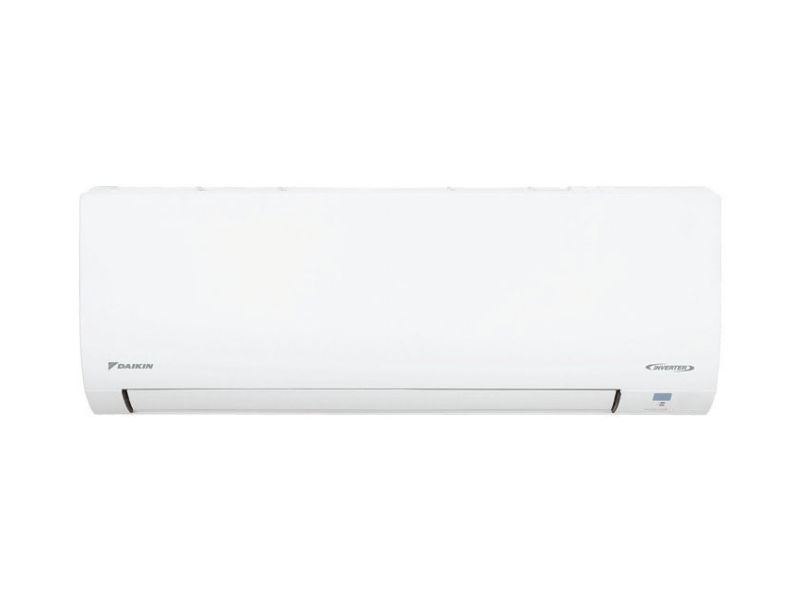

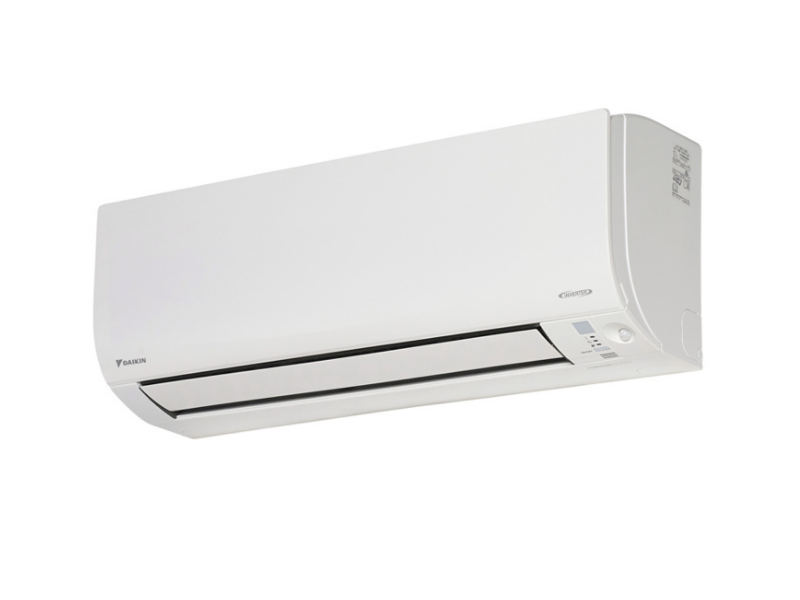

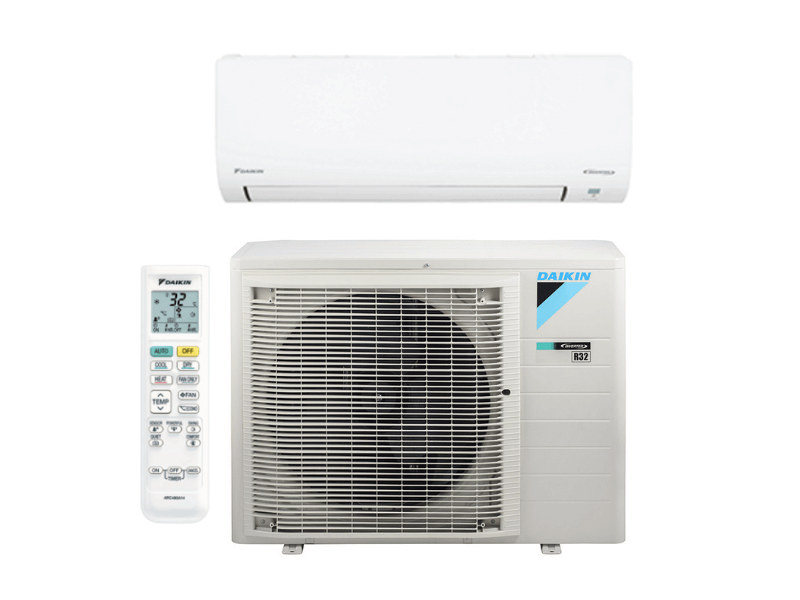

Daikin 4.6kW Inverter Split System Air Conditioner LITE FTXF46WVMA
Overview
New FTXF46WVMA 4.6kW Daikin Split System Air Conditioner LITE Series C4.6kW H4.7kW
Designed with the latest cutting-edge technologies, the Lite and Multi Lite systems features a compact modern design, delivering air conditioned comfort more quietly than ever before
Daikin's new Lite Series come equip with Coanda Airflow technology, silent operation and with optional Wi-Fi capability for remote operation.
Features
R32 Refrigerant: R32 is the next generation in refrigerants that enables increased energy efficiency and a significant reduction in ‘Global Warming Potential Factor’ when compared to refrigerant R410A thereby reducing the risk of harm to the environment.
Coanda Airflow: For a comfortable home environment, selecting the COMFORT mode during cooling operations repositions the discharge louvre horizontally and streams air upwards towards the ceiling through what is known as the Coanda Effect. This enables “throws” of up to 15 metres delivering rapid cooling and even temperatures within the space.
Whisper Quiet: Daikin’s Lite Series is not just compact in size but also quiet in operations, featuring an Indoor Unit Quiet mode that reduces the indoor unit operational noise level down to 19dBA* to maintain room acoustics.
Compact Size: Utilising a range of new technologies including R32 as a refrigerant, a redesigned indoor heat exchanger with Ø5mm piping and a new large rotor cross-flow indoor fan has resulted in a more compact design for both the indoor and outdoor machines.
Economical Comfort: The Lite Series features up to 4.5 Star Rating energy performance (2.5kW model) in both cooling and heating operations.
Standard Features: Weekly timer and 24 Hour timer, Night set mode, Self diagnosis with digital display, Comfortable mode, Econo mode.
Specifications
INDOOR UNIT | FTXF46WVMA | |
OUTDOOR UNIT | RXF46WVMA | |
Rated Capacity | Cool (kW) | 4.6 |
Heat (kW) | 4.7 | |
Capacity Range | Cool (kW) | 1.5-5.0 |
Heat (kW) | 1.0-5.4 | |
Indoor Airflow Rate (Hi) | Cool (L/s) | 200 |
Heat (L/s) | 203 | |
Indoor Fan Speeds | 5 steps, quiet and automatic | |
Energy Label / Star Ratings | Cool | 2.5 Stars |
Heat | 2.5 Stars | |
Front Panel Colour | Pearl Pure White | |
Power Supply | 1 Phase, 220-240 V, 50 Hz | |
Power Input (Rated) | Cool (kW) | 1.28 |
Heat (kW) | 1.25 | |
E.E.R./C.O.P. | Cool/Heat | 3.59 / 3.76 |
A.E.E.R./C.O.P. | Cool/Heat | 3.58 / 3.74 |
Dimensions (HxWxD) | Indoor (mm) | 285 x 770 x 223 |
Outdoor (mm) | 595 x 845 x 300 | |
Weight | Indoor (kg) | 9 |
Outdoor (kg) | 41 | |
Compressor Type | Hermetically sealed swing type | |
Refrigerant Type | R32 | |
Max Pipe Length | (m) | 30 |
Max Level Difference | (m) | 20 |
Pipe Sizes | Liquid (mm) | 6.4 |
Gas (mm) | 12.7 | |
Outdoor Operating Range (outdoor temp) | Cool (°CDB) | -10 to 46 |
Heat (°CWB) | -15 to 18 | |
Indoor Sound Level (H/SL) | Cool (dBA) | 44 / 28 |
Heat (dBA) | 44 / 28 | |
Outdoor Sound Level (H/L) | Cool (dBA) | 47 / 44 |
Heat (dBA) | 50 / 46 | |
Outdoor EPA Sound Power Level |
Cool (dBA) | 59 |
Heat (dBA) | 62 |
