Panasonic 2.5kW Inverter Split System Air Conditioner CS/CU-RZ25XKR

Sale price$1,028.00
No reviews
No reviews
MODEL: CS/CU-RZ25XKR
Quantity:
Found a better price?

Ducted & Split Systems Sizing Calculator

Use our split system or ducted sizing calculator below to determine the minimum size required for your room or house.

Note: For ducted systems only include the air conditioned spaces, exclude areas like garages, bathrooms or laundries.



Overview

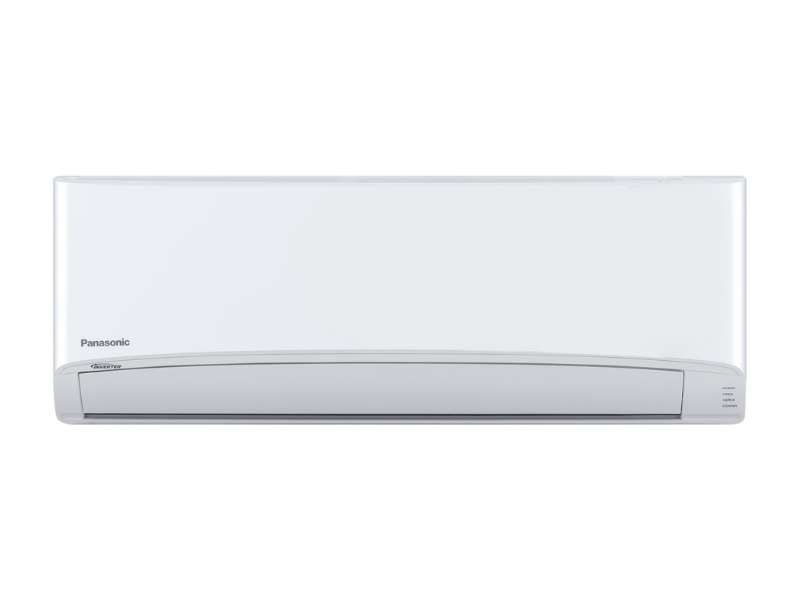

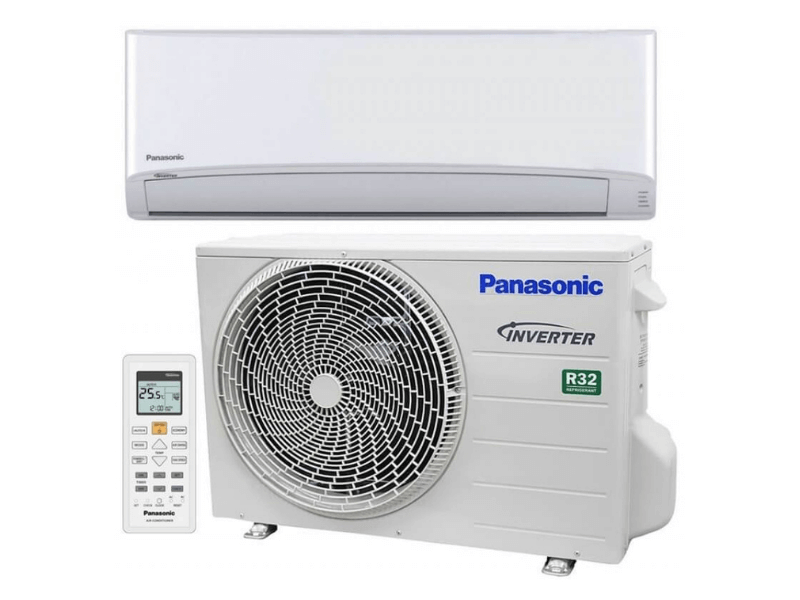

2.5kW Panasonic Split System Air Conditioner CS/CU-RZ25XKR

Replaced CS/CU-RZ25WKRW

Panasonic Split Inverter Air Conditioner features built-in Anti-Bacterial Filter, Very Quiet Operation, Designed for the Australian Climate, Dehumidifier, and Easy to Set Up.

Panasonic XKR Brochure

Features

Anti-Bacterial Filter: The Anti-Bacterial Filter combines three effects in one: anti-allergen, anti-virus and anti-bacterial protection to provide clean air.

Powerful Mode: Pressing the Powerful button cools or heats the room quickly. It provides fast comfort, with full power and a strong airflow. This is perfect for use immediately after coming home, or when unexpected guests arrive.

Quiet Mode: The Quiet Mode reduces both indoor and outdoor unit operating sound. This function is especially convenient for operation near a sleeping baby and at night-time.

Economy Mode: The Economy mode reduces energy consumption by up to 20%* compared to the Normal mode by automatically adjusting the set temperature by up to 2oC. It’s ideal when you want to maintain room temperature for gentle cooling and heating.

Blue Fin Condenser: Condensers can take a beating from exposure to salty air, rain and other corrosive factors. Panasonic has expanded the life of our condensers with an original anti-rust coating.

Specifications

MODEL (240V / 1 Phase / 50Hz) CS-RZ25XKRW



[CU-RZ25XKR]

Cooling / Heating (min-max) kW 2.50 [0.95-3.70]
3.00 [0.90-4.40]
Capacity (min-max) Btu/h 8,530 [3,240-12,600]
10,200 [3,070-15,000]
Air Flow Indoor L/s 188/200
Dehumidify L/h



1.5

Running Current A 2.50/2.80
Electrical Data Max Current A 6.4
Power Input (min-max) kW 0.57 (0.22-1.20)
0.64 (0.19-1.29)
AEER / EER W/W 4.32/4.39
ACOP / COP W/W 4.63/4.69
Hot Climate Cooling 4.5
Heating 3.5
Star Rating Average Climate Cooling 4.0
Heating 3.0
Cold Climate Cooling 4.0
Heating 2.5




TCSPF & HSPF

Residential/ Commercial

Hot Climate TCSPF HSPF 6.46/7.53



5.12/5.11

Average Climate TCSPF HSPF 5.77/8.13



4.72/4.86

Cold Climate TCSPF HSPF 5.94/9.70



4.13/4.37

Noise Level Indoor (H / L / Q-Lo) 40/25/19
Sound Pressure 40/27/21
Outdoor (H / Q-Lo)
Level*2 dB(A) 48/43



49/44

Indoor (H / L / Q-Lo) 56/41/35
Sound Power 56/43/37
Level dB(A)
Outdoor (H / Q-Lo) 63/58
64/59
Net Weight Indoor (Outdoor) kg



8(25)

Dimensions Indoor (H x W x D) mm 290 x 779 x 209
Outdoor (H x W x D) mm 542 x 780 x 289
Refrigerator Pipe  Liquid Side                   mm/(inch) ø 6.35 (1/4)
Diameter                 Gas Side                     mm/(inch) ø 9.52 (3/8)
Pipe Extension Length                             Min ~ Max (m)



3~20

Maximum Elevation Length                                       m



15

Pipe Length For Additional Gas                                 m 7.5
Additional Gas Amount                                           g/m 10
Operating Range (Outdoor)          Cooling Degree °C



Heating

-10 ~ +46



-15 ~ +24
